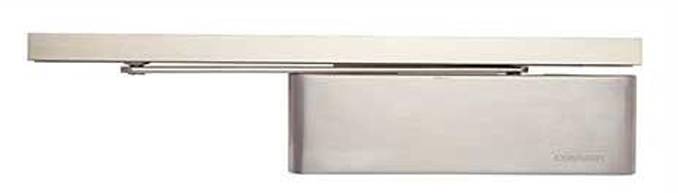

Overhead Cam Action Door Closer (CDC924) - Door Closers/ Controlled Door Closers
Verified by manufacturer 2 days ago
EPD
Certificate type
Certifire Certificate
Certificate type
Certificate of constancy of performance
Certificate type
An overhead cam-action door closer with valve-adjustable power.
Application
Suitable for timber and metal doors and frames.
Description
An overhead cam-action door closer with valve-controlled power adjustment, suitable for timber and metal doors, featuring adjustable closing and latch speeds.
Features and benefits:
- Power size of 2–4, adjustable by valve.
- Suitable for door leaves weighing 40–80 kg and measuring 850–1100 mm in width.
- Adjustable closing speed and latching action.
- Available in various options and finishes.
- Tested to BS EN 1154.
- Fire tested to BS EN 1634-1.
General information
Color | Grey Black Bronze Gold Silver |
Finish | Satin Polished Matt |
Material | Stainless steel Nickel |
Shape | Rectangle |
Length | 53.5 mm |
Width | 210 mm |
Height | 36 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | L20/420 Wood doorsets P21/12 Controlled door closers P21/410 Controlled door closers |
SKU Code | CDC924 |
Specification data - Controlled door closers
Classification data | |
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | Adjustable 2–4. Guidance for specification option: By valve. |
Suitability for use on fire and smoke doors | 1. Manufacturer guidanceTimber door and frame: FD120. Metal door and frame: FD240. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Overhead, face-fixed. |
Closer functions | Controlled closing and latching. |
Materials and finishes | |
Bodies | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Arms | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Casings | SSS - Satin stainless steel. PSS - Polished stainless steel. PGD - Polished gold. SNP - Satin nickel plate. PC - Polished chrome. BLK - Matt black. BRZ - Bronze. Other. Guidance for specification option: Other finishes available upon request. Consult manufacturer for details and insert requirements. |
Colour | As casings. |
Fasteners for hardware | As supplied. |
Options | Not required. Hold open arm. Overhead cushion stop. |
Fire resistance | To BS EN 1634-1. Guidance for specification option: Timber door and frame: FD120. Metal door and frame: FD240. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Nickel |
Product certifications
Product certifications
EPD
Environmental Product Declaration - Door Closer
Certifire Certificate
CFF5503
Certificate of constancy of performance
Certificate of Constancy of Performance (CDC924)
