Overhead Door Closer (CDC624V) - Door Closers
Verified by manufacturer 2 days ago
EPD
Certificate type
Certifire Certificate
Certificate type
Certificate of constancy of performance
Certificate type

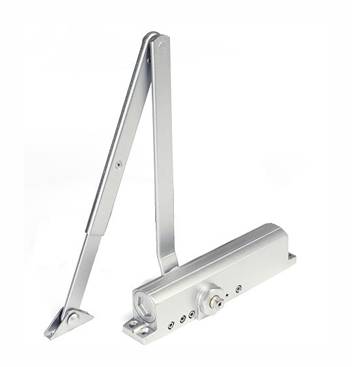

A single action overhead door closer for right and left closing doors.
Application
Overhead door closer for timber doors and frame applications.
Description
An overhead door closer that is suitable for use on up to FD 120 timber door and frame applications for right and left single action closing doors.
Features and benefits:
- Adjustable power size of 2–4 by spring.
- Suitable for up to 40–85 kg leaf weight and 1100 mm leaf width.
- Adjustable closing speed and latching action.
- Standard adjustable backcheck and delay action function.
- Tested to BS EN 1154.
- Fire tested to BS EN 1634-1.
- Available in various finishes.
General information
Color | Grey Silver |
Finish | Satin Polished Chrome |
Material | Brass Nickel |
Shape | Rectangle |
Width | 248 mm |
Height | 52 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/12 Controlled door closers L20/420 Wood doorsets P21/410 Controlled door closers |
SKU Code | CDC624V |
Specification data - Controlled door closers
Classification data | |
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 8. |
Door closer power size | Adjustable 2–4. Guidance for specification option: By spring. |
Suitability for use on fire and smoke doors | 1. Manufacturer guidanceTimber door and frame: FD120. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Overhead, face-fixed. |
Closer functions | Back check. Delayed closing. Controlled closing. Latching. |
Materials and finishes | |
Bodies | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Arms | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Casings | SIL - Silver. SNP - Satin nickel plate. PB - Polished brass. PC - Polished chrome. Other. Guidance for specification option: Other finishes available upon request. Consult manufacturer for details and insert requirements. |
Colour | As casings. |
Fasteners for hardware | As supplied. |
Fire resistance | To BS EN 1634-1. Guidance for specification option: Timber door and frame: FD120. |
Sustainability data
Material | Brass Nickel |
Product certifications
Product certifications
EPD
Environmental Product Declaration - Door Closer
Certifire Certificate
CF10211
Certificate of constancy of performance
Certificate of Constancy of Performance (CDC624V)
