Overflow Detection System
Verified by manufacturer over a year ago
The Overflow Detection System is designed for companies with large numbers of WC's on site. The control system can monitor up to 20 cubicles and can be remote sited.
Description

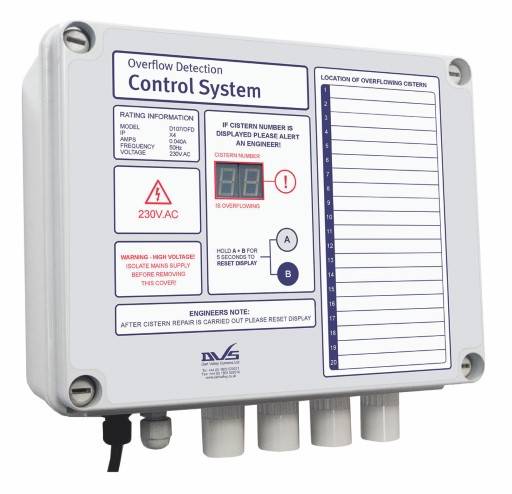

The control system can monitor up to 20 cubicles and is usually remotely sited; in the cleaner's cupboard at the end of a toilet block for example. The digital display on the front of the control box makes it easy to identify which cistern is overflowing. There is also the facility to have an additional warning light panel outside the cleaner's cupboard which will flash until the problem is rectified. You can also monitor the OFD control system from a BMS system if necessary.
This download contains BIM objects that represent the following products:
- AC07-001
Features and benefits:
- Overflow Detection System - Controls Box for Duct Mounting.
General information
Color | Grey |
Finish | Gloss |
Material | Plastic |
Shape | Rectangle |
Length | 96 mm |
Width | 256 mm |
Height | 200 mm |
Uniclass |
Specification data - Water supply control systems
Dimensions | 96 x 256 x 200 mm. |
Finish/ Colour | Semi-gloss, grey. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
