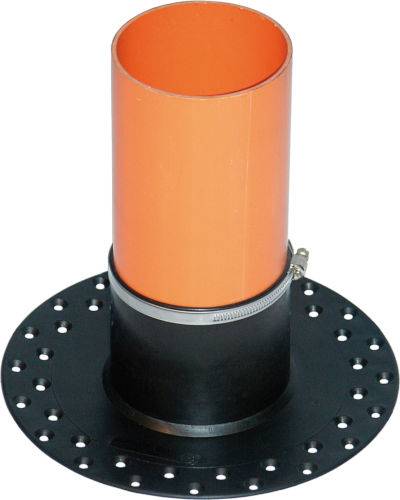

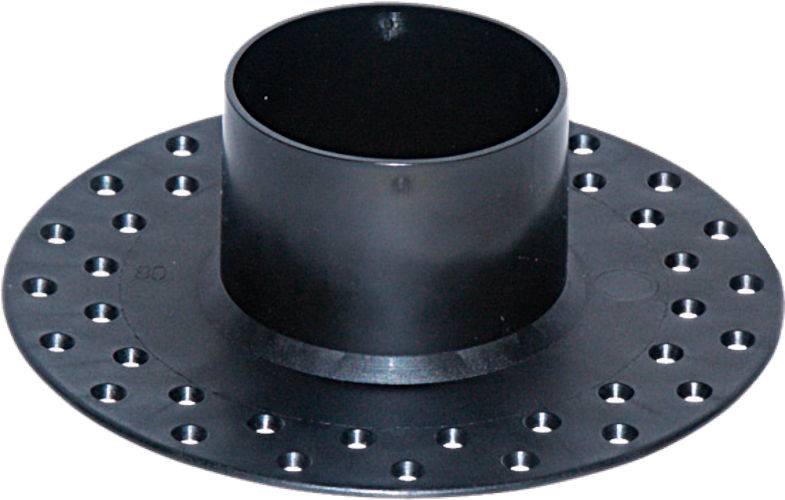

Outlet - TPE Collars 60mm & 90mm High (Perforated Flange)

Verified by manufacturer 2 months ago

Wallbarn Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

TPE Collar designed to connect bituminous membranes with through pipes/vents. They are fitted with a perforated flange to improve adhesion to the membranes. Available in 60mm & 90mm High.

Jump to:
+44 (0)20 8916 2222 Website

Application

Pipework collar to assist with odour vents and stand pipes.

Description

Tough and durable collar, which is fitted around the outside of pipework emerging from the top of the roof/deck, such as bad odour vents and stand pipes.


Features and benefits:

  • It is manufactured in a slight cone shape to give easy installation and to help direct water outwards away from the pipe and the hole.
  • The collar includes a flange which is sandwiched between two layers of waterproofing membrane.
  • It is perforated with a series of holes around the profile to allow the membrane underneath to pass through the holes and give a secure bond when the second layer of membrane is installed above it.
  • A jubilee clip is fixed around the top end of the collar to secure the whole area.
  • There is a range of size options to accommodate varying pipe widths.

General information

Color

Black

Finish

Matt

Material

Thermoplastic elastomer (TPE)

Manufacturer guidance

Thermoplastic elastomer (TPE), a compound of ethylene-propylene diene monomer (EPDM) and polypropylene

Shape

Circle

Other

Length

60 mm

90 mm

Manufacturer guidance

This dimension refers to the height of the Collar.

Width

30 mm

40 mm

60 mm

80 mm

100 mm

Show more

Manufacturer guidance

This dimension refers to the diameter of the collar.


Height

60 mm

90 mm

Manufacturer guidance

This dimension refers to the height of the Collar.

Warranty description

15 year

Uniclass

Pr_65_52_61_86 Surface-mounted intumescent pipe collarsPrimary

CAWS

J40/370 Preformed collars for pipes, ducts, cables, etc.

J41/480 Pipe collars

Product range

Roof Drainage Outlets, Leaf Guards, Vents, Collars and Accessories

Specification data - Surface-mounted intumescent pipe collars

Sizes

60 x 30 mm.

Guidance for specification option:

Height x diameter.

60 x 40 mm.

Guidance for specification option:

Height x diameter.

60 x 60 mm.

Guidance for specification option:

Height x diameter.

80 x 60 mm.

Guidance for specification option:

Height x diameter.

90 x 100 mm.

Guidance for specification option:

Height x diameter.

90 x 120 mm.

Guidance for specification option:

Height x diameter.

90 x 140 mm.

Guidance for specification option:

Height x diameter.

90 x 160 mm.

Guidance for specification option:

Height x diameter.

Material:

Thermoplastic elastomer (TPE); Compound of ethylene-propylene diene monomer (EPDM); Polypropylene.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

Thermoplastic elastomer (TPE)

Manufacturer guidance

Thermoplastic elastomer (TPE), a compound of ethylene-propylene diene monomer (EPDM) and polypropylene

Recyclability

100%

Manufacturer guidance

TPEs are designed to combine the beneficial properties of thermoplastics, which can be melted and reformed, with the elastic properties of elastomers. This characteristic makes TPEs particularly amenable to recycling processes.

The recycling of TPE involves grinding the material into pellets or granules, which can then be remelted and remolded into new products. However, the specific recycling process can vary depending on the exact type of TPE, as there are several different types, each with varying properties and chemical compositions.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

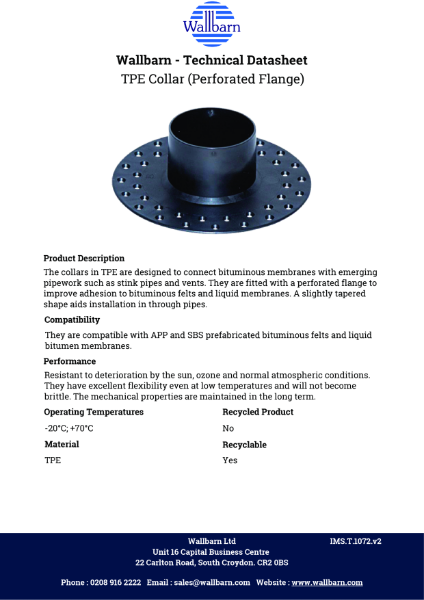

Datasheet - TPE Collar 60mm(H)

Datasheet - TPE Collar 60mm(H)

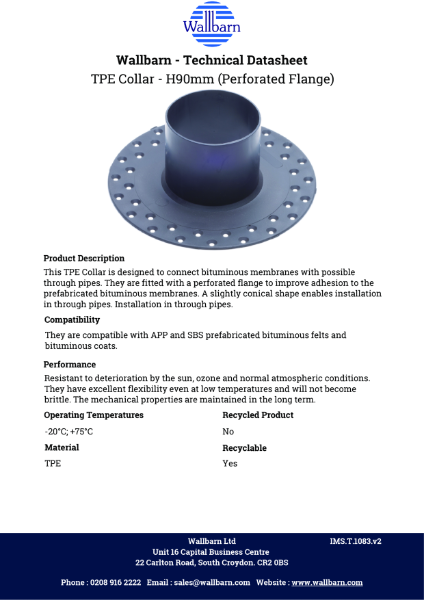

Datasheet - TPE Collar 90mm(H)

Datasheet - TPE Collar 90mm(H)
