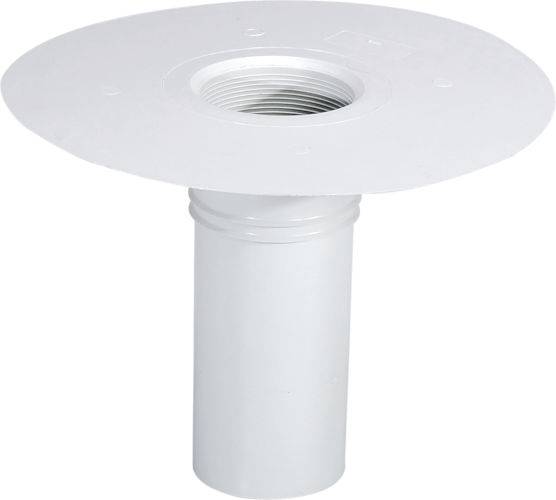

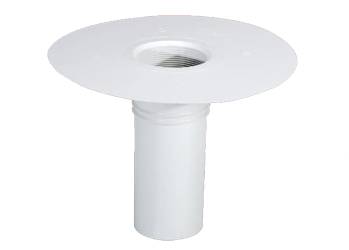

Outlet - PVC Downpipe (Smooth Flange) 240mm & 600mm Long - Multiple Diameters available.

Verified by manufacturer 15 days ago

Wallbarn Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

PVC rainwater outlets for bonding to PVC waterproofing membranes. These PVC circular outlets come in a variety of diameters suited to downpipes of 40mm to 200mm. Available in 240 & 600mm Lengths.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

PVC drainage outlets for bonding to PVC waterproofing membranes only. To improve waterproofing and protection. For circular downpipes.

Description

Tough, durable and flexible drain connector, used for downpipes and circular outlets on a roof or terrace within the main body of a concrete deck.


Features and benefits:

  • It is suitable with synthetic membranes.
  • The shank is inserted into a hole to connect to the outlet drainage pipe and the flange is welded to the membrane.
  • The flange is not perforated.
  • Bonded by using hot air gun (not direct contact to a flame).
  • The pipe is manufactured in a slight cone shape to give easy installation and to prevent it from rising out of the hole.
  • There are also two rings on the exterior of the pipe, which help to ensure that no water can travel back up and ensure a tight fit.
  • The drain connectors are designed to sit inside an HDPE outlet pipe with a snug fit and a range of size options are available in relation to the relevant outlet pipe size.
  • Preformed shape made from PVC for use with downpipes drainage holes on flat roofs.
  • For use with PVC waterproofing membranes only.
  • Manufactured with smooth flange.
  • Tough and flexible connector, UV resistant.

General information

Color

White

Finish

Matt

Material

Polyvinyl chloride (PVC)

Shape

Other

Circle

Length

240 mm

600 mm

Width

40 mm

60 mm

75 mm

80 mm

90 mm

Show more

Manufacturer guidance

The sizes listed refer to the downpipe size that these outlets fit into.

Height

Bespoke

Manufacturer guidance

Multiple heights available. Enquire with Wallbarn

Warranty description

15 year

CAWS

R10/26 Proprietary rainwater outlets

R10/365 Proprietary rainwater outlets

Product range

Roof Drainage Outlets, Leaf Guards, Vents, Collars and Accessories

Specification data

Product Reference

PVC Drain Connectors and Outlets

Height

240 mm.

600 mm.

Guidance for specification option:

Where outlet pipes are passing through thick insulation or industrial roofing.

Outlet pipe (diameter)

40 mm.

Guidance for specification option:

Not available with 600 mm height.

60 mm.

Guidance for specification option:

Not available with 600 mm height.

75 mm.

Guidance for specification option:

Not available with 600 mm height.

80 mm.

90 mm.

Show more

Couplings

Not required.

Required.

To suit drainage outlet.

Accessories

None.

Gravel excluder.

Leaf guard.

Sustainability data

Contains Red List materials

Yes

Country of material origin

Italy

Country of product manufacture

Italy

Material

Polyvinyl chloride (PVC)

Recyclability

100

Manufacturer guidance

PVC can be recycled through mechanical recycling processes, where the material is ground into small chips or pellets, which are then cleaned, processed, and remelted to form new PVC products. However, recycling PVC can be complex and costly due to the presence of additives like plasticizers, stabilizers, and fillers that are often used in PVC products. These additives can make it difficult to recycle PVC with other types of plastics or even other types of PVC.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

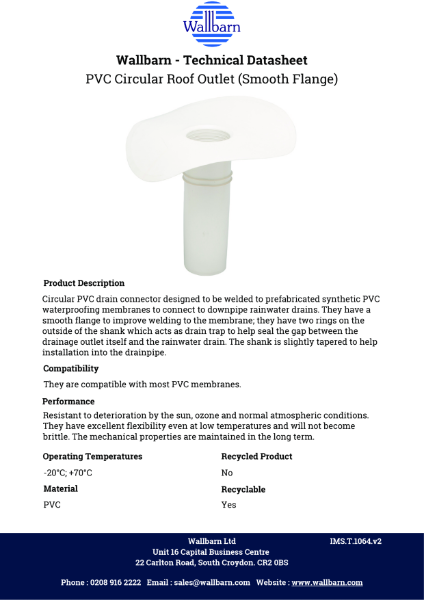

Datasheet - PVC Circular Downpipe 240mm (L) (Smooth Flange)

Datasheet - PVC Circular Downpipe 240mm (L) (Smooth Flange)

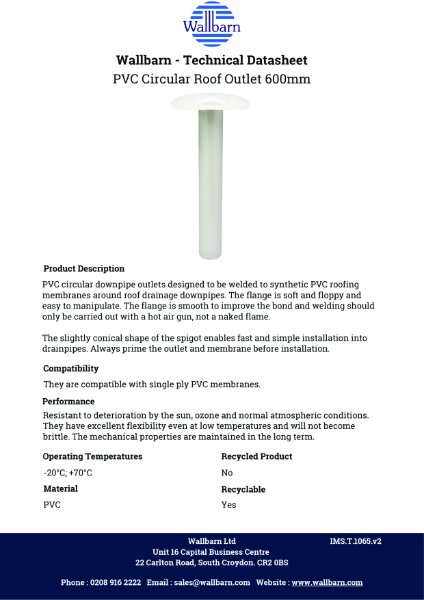

Datasheet - PVC Circular Downpipe 600mm (Smooth Flange)

Datasheet - PVC Circular Downpipe 600mm (Smooth Flange)

Datasheet - Flow Rates Circular Downpipe Outlet - 240mm Shaft

Datasheet - Flow Rates Circular Downpipe Outlet - 240mm Shaft
