Outlet - PVC Collars 60mm & 90mm High (Smooth Flange)
Verified by manufacturer 2 months ago
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type

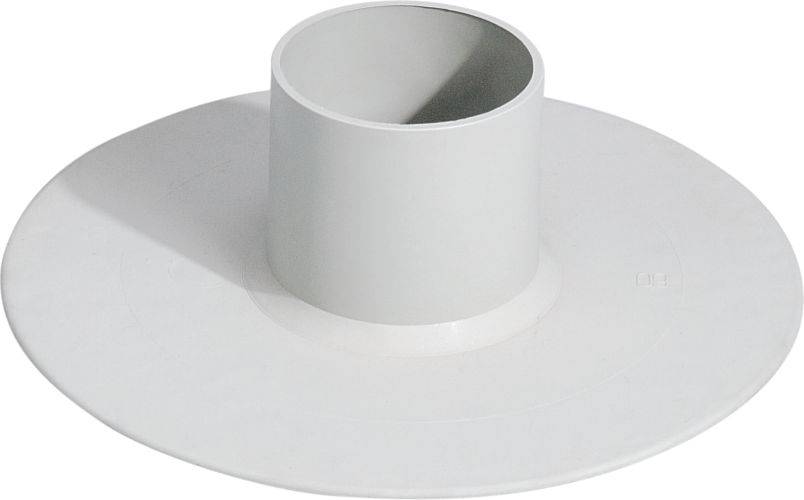

Collars in PVC are designed to connect prefabricated synthetic PVC membranes with through pipes. They are fitted with a smooth flange to improve welding to the prefabricated PVC roofing.
Application
An addition to piping to assist with waterflow and waterproofing.
Description
Tough and durable collar, which is fitted around the outside of pipework emerging from the top of the concrete deck, such as bad odour vents and stand pipes.
Features and benefits:
- It is manufactured in a slight cone shape to give easy installation and to help direct water outwards away from the pipe and the hole.
- Bonded by using hot air gun (not direct contact to a flame).
- The collar includes a flange at the base which is bonded to the waterproofing membrane.

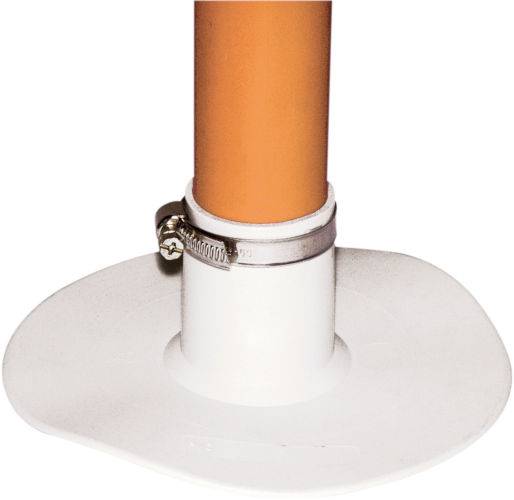

- A jubilee clip is fixed around the top end of the collar to secure the whole area.
- There is a range of size options to accommodate varying pipe widths.
General information
Color | White |
Finish | Matt |
Material | Polyvinyl chloride (PVC) |
Shape | Circle |
Length | 60 mm 90 mm Manufacturer guidanceLength refers to height of the collar |
Width | 10 mm 30 mm 40 mm 60 mm 80 mm Manufacturer guidanceWidth is diameter of the collar. Refer to Technical Datasheets for detailed dimensions |
Height | 60 mm 90 mm Manufacturer guidanceRefers to height of the collar |
Warranty description | 15 year |
Uniclass | |
CAWS | J40/370 Preformed collars for pipes, ducts, cables, etc. J41/480 Pipe collars |
Product range |
Specification data - Concealed intumescent pipe collars
Sizes | 30 mm.Guidance for specification option: 60 mm collar height. 40 mm.Guidance for specification option: 60 mm collar height. 60 mm.Guidance for specification option: 60 mm collar height. 80 mm.Guidance for specification option: 60 mm collar height. 100 mm.Guidance for specification option: 90 mm collar height. 120 mm.Guidance for specification option: 90 mm collar height. 140 mm.Guidance for specification option: 90 mm collar height. 160 mm.Guidance for specification option: 90 mm collar height. Manufacturer guidanceOutlet pipe width. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Polyvinyl chloride (PVC) |
Recyclability | 100% Manufacturer guidancePVC can be recycled through mechanical recycling processes, where the material is ground into small chips or pellets, which are then cleaned, processed, and remelted to form new PVC products. However, recycling PVC can be complex and costly due to the presence of additives like plasticizers, stabilizers, and fillers that are often used in PVC products. These additives can make it difficult to recycle PVC with other types of plastics or even other types of PVC. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 15 year |
Third party certifications
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001
ISO 9001 Quality Management
ISO 9001
Literature

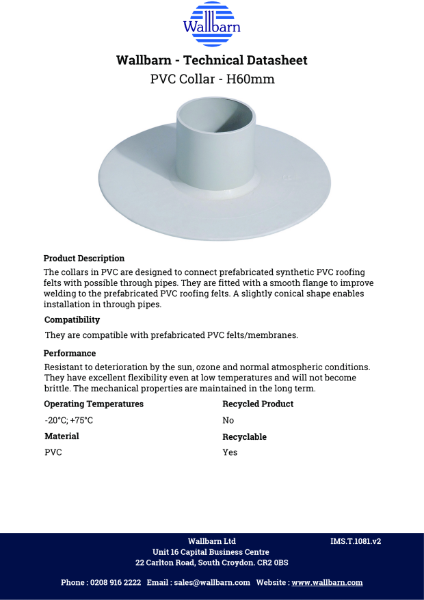

Datasheet - PVC Collar 60mm(H)

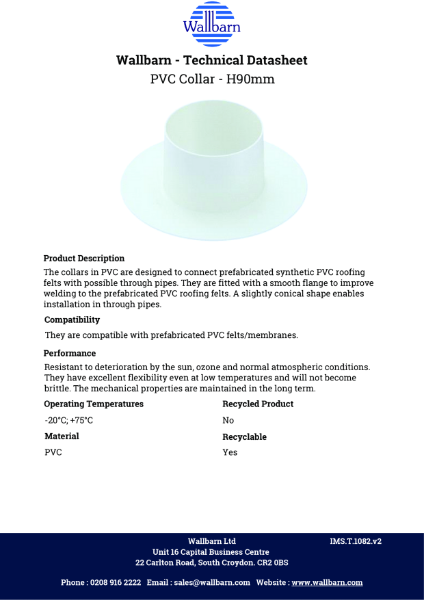

Datasheet - PVC Collar 90mm(H)
