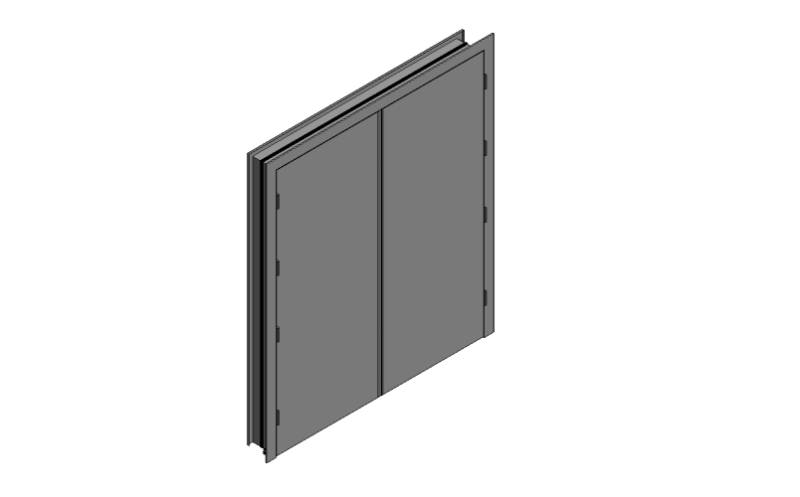

OUTA-DOR Outward Opening B - Equal Frame

Verified by manufacturer over a year ago

Robust UK Ltd

External steel door outward opening architrave frame.

Jump to:
BOS
+44 (0)1782 592900 Website

Application

Suitable for use in a wide range of external applications – from schools and offices to multi-storey car parks and supermarkets.

Description

External steel door outward opening architrave frame.


Features and benefits:

  • Strong, durable and versatile.
  • Manufactured from corrosion resistant Magnelis© steel as standard, this can be upgraded to 1.5 mm or 2.0 mm sheets to increase the toughness of the door skin.
  • OUTA-DOR is well protected from the elements.
  • All our doorsets are supplied fully assembled with hardware fitted, which, when combined with our adjustable fixing feet and variable sub-frame, drastically reduces the installation time on site – adding value to a project.


General information

Shape

Rectangular

Finish

Polyester powder coated

Stainless steel

Unfinished

Woodgrain

Material

Steel

Warranty description

Ten years

Size

1804 x 2110 mm

Uniclass

Ss_25_30_20_25 Doorset systemsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

External

Specification data - Doorset systems

Doorset

-

Type

Metal doorsets.

Glazing

Not required.

6 mm thick GWPP.

Guidance for specification option:

Georgian wire polished glass.

19 mm thick double glazed unit.

Guidance for specification option:

6.4/ 6/ 6.4 mm laminate.

Double glazed.

Guidance for specification option:

As standard.

Special order.

Thresholds

-

Weather or seal stripping

Aluminium threshold strip.

Weather bar with rain deflector.

Guidance for specification option:

For inward opening doorsets as standard.

Execution

Fixing hardware.

Product Reference

OUTA-DOR Outward Opening B - Equal Frame

Material

Magnelis©.

Guidance for specification option:

Folded from 1.6 mm thick Magnelis© sheets.

Manufacturer guidance

Door frame.

Coating

Guidance for specification option:

[-] - Insert requirements.

Manufacturer guidance

Frame finish coating.

Colour

Guidance for specification option:

[-] - Insert requirements.

Manufacturer guidance

Door frame finish.

Core

Mineral wool.

Guidance for specification option:

With steel strengtheners: 2.4 W/m²K U-value; lamella: 2.4 W/m²K U-value.

Polyurethane.

Guidance for specification option:

1.6 W/m²K U-value.

Self-supporting resin-impregnated honeycomb.

Guidance for specification option:

Standard, 3.1 W/m²K U-value.

Solid timber.

Guidance for specification option:

Standard, 3.1 W/m²K U-value.

Manufacturer guidance

Door leaf.

Coating

Polyester powder coated, standard colour range.

Guidance for specification option:

Insert colour requirement.

Polyester powder coated, non-standard colour range.

Guidance for specification option:

Insert colour requirement.

PVC laminate, standard range.

Guidance for specification option:

Insert colour requirement.

Stainless steel, brushed.

Stainless steel, patterned.

Show more

Manufacturer guidance

Door leaf.

Material

Magnelis© steel.

Stainless steel, grade 1.4301 (304).

Stainless steel, grade 1.4401 (316).

Manufacturer guidance

Door leaf.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Recyclability

98%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

New materials only.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-
