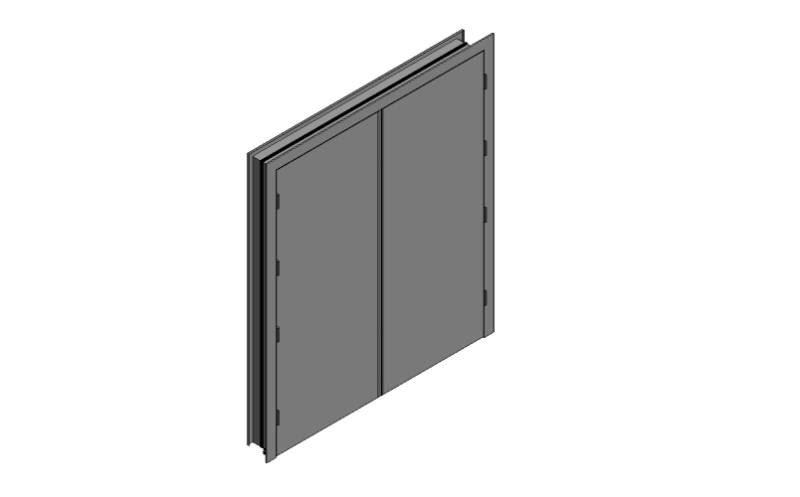

OUTA-DOR - Frame Profiles

Verified by manufacturer over a year ago

Robust UK Ltd

External steel door.

Jump to:
BIM object icon
+44 (0)1782 592900 Website

Application

Suitable for use in a wide range of external applications – from schools and offices to multi-storey car parks and supermarkets.

Description

External steel door.


Features and benefits:

  • Strong, durable and versatile.
  • Manufactured from corrosion resistant Magnelis© steel as standard, this can be upgraded to 1.5 mm or 2.0 mm sheets to increase the toughness of the door skin.
  • OUTA-DOR is well protected from the elements.
  • All our doorsets are supplied fully assembled with hardware fitted, which, when combined with our adjustable fixing feet and variable sub-frame, drastically reduces the installation time on site – adding value to a project.

General information

Shape

Rectangular

Finish

Polyester powder coated

Stainless steel

Unfinished

Woodgrain

Material

Steel

Warranty description

Ten years

Size

1804 x 2110 mm

Finish

Polyester powder coated

Stainless steel

Unfinished

Woodgrain

Uniclass

Ss_25_30_20_25 Doorset systemsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

External

Specification data - Doorset systems

Doorset

-

Type

Metal doorsets.

Glazing

Not required.

6 mm thick GWPP.

Georgian wire polished glass.

19 mm thick double glazed unit.

6.4/ 6/ 6.4 mm laminate.

Double glazed.

As standard.

Special order.

Thresholds

-

Weather or seal stripping

Aluminium threshold strip.

Weather bar with rain deflector.

For inward opening doorsets as standard.

Execution

Fixing hardware.

Product Reference

OUTA-DOR - Frame Profiles

Material

Door frame.

Magnelis©.

Folded from 1.6 mm thick Magnelis© sheets.

Coating

Door frame finish.

[-] - Insert requirements.

Colour

Door frame finish.

[-] - Insert requirements.

Core

Door leaf.

Mineral wool.

With steel strengtheners: 2.4 W/m²K U-value; lamella: 2.4 W/m²K U-value.

Polyurethane.

1.6 W/m²K U-value.

Self-supporting resin-impregnated honeycomb.

Standard, 3.1 W/m²K U-value.

Solid timber.

Standard, 3.1 W/m²K U-value.

Material

Door leaf.

Magnelis© steel.

Stainless steel, grade 1.4301 (304).

Stainless steel, grade 1.4401 (316).

Coating

Door leaf.

Polyester powder coated, non-standard colour range.

Insert colour requirement.

Polyester powder coated, standard colour range.

Insert colour requirement.

PVC laminate, standard range.

Insert colour requirement.

Stainless steel, brushed.

Stainless steel, patterned.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Recyclability

98%

Recycled content

New materials only.

-

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1
