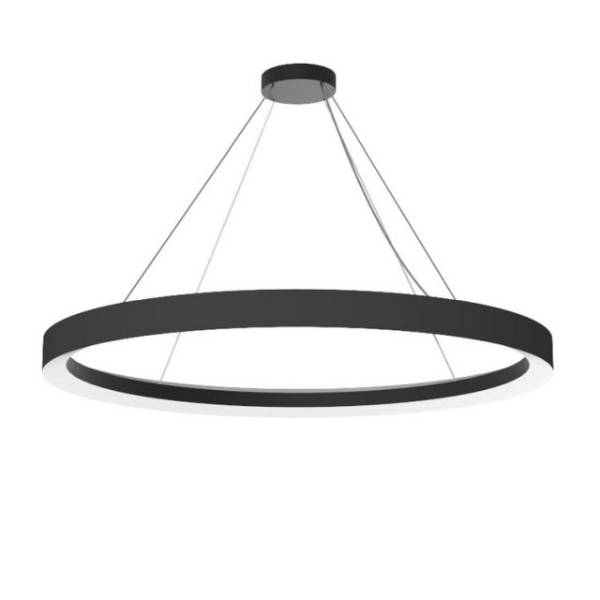

Ouse Suspended Feature Lighting
Application

Suspended lighting for Cat A and Cat B office fit-out, hospitality lighting, church lighting or retail lighting.

Description

Suspended halo feature LED lighting.


Features and benefits:

  • Used as an individual luminaire, or an eye-catching architectural lighting feature, the OUSE adds a contemporary feel to any architectural spaces.
  • The remote driver and the ceiling rose can be hidden behind the plasterboard.
  • Chamfer edges emphasise a thin, floating ring of light.
  • A range of size and colour variations are possible.
  • Internal ballasts or drivers are supplied.
  • Can be specified with CASAMBI to increase user control.

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Circular

Size

Seven sizes, ranging from 1000–4000 mm.

-

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Standards

Directive 2014/30/EC - EMC.

Directive 2006/95/EC - Low Voltage.

Regulation 1907/2006 - REACH.

Directive 2019/15/EC - Labelling.

Directive 2015/863/EC - RoHS.

Directive 2012/19/EC - WEEE.

Directive 2014/35/EU - making available on the market of electrical equipment.

Directive 2011/65/EU - hazardous substances.

Third-party certification

Photometrics.

Luminaire description

Suspended, halo ring.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Loop wiring.

Nominal voltage

220–240 V.

Luminaire power factor

0.92.

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471.

Safety standard

SELV.

Initial LED luminaire efficacy (minimum)

87 Lm/ W.

Wattage

110 W/ 9100 lm up to 417 W/ 36360 lm.

Colour temperature

3000K.

4000K.

Colour rendering index (Ra)

80.

90.

Beam angle

180°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Non-dimming.

Standard.

Product Reference

Ouse Suspended - LED

Control gear position

Integral within luminaire.

Length

1000 mm.

1500 mm.

2010 mm.

2466 mm.

3012 mm.

Show more

Optics

Opal diffuser.

Colour

Black.

Grey.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<18.6.

Longitudinal

<18.6.

Efficiency

96%.

Frequency

50–60 Hz.

Upward light output ratio (ULOR)

50%.

Downward light output ratio (DLOR)

50%.

Output direction

Direct/ indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
