Ouse Suspended Feature Lighting
Application

Ideal as a premium suspended lighting for Cat A and Cat B office fit-out, hospitality lighting, church lighting or retail lighting.

Description

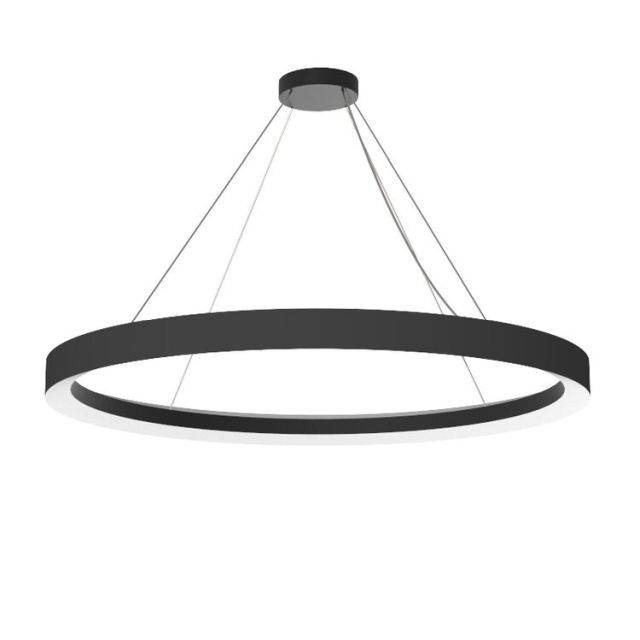

Suspended halo feature LED lighting.

Features and benefits:

  • Used as an individual luminaire, or an eye-catching architectural lighting feature, the OUSE adds a contemporary feel to any architectural spaces.
  • The remote driver and the ceiling rose can be hidden behind the plasterboard.
  • Chamfer edges emphasise a thin, floating ring of light.
  • A range of size and colour variations are possible.
  • Internal ballasts or drivers are supplied.
  • Can be specified with CASAMBI to increase user control.

Application:

Ideal as a premium suspended lighting for Cat A and Cat B office fit-out, hospitality lighting, church lighting or retail lighting.

General information

Features

The remote driver and the ceiling rose can be hidden behind the plasterboard

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Circular

Size

Seven sizes ranging from ranging from 1000-4000 mm

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Product Reference

Ouse Suspended - LED

Standards

Directive 2014/30/EC - EMC

Directive 2006/95/EC - Low Voltage

Regulation 1907/2006 - REACH

Directive 2019/15/EC - Labelling

Directive 2015/863/EC - RoHS

Directive 2012/19/EC - WEEE

Directive 2014/35/EU - making available on the market of electrical equipment

Directive 2011/65/EU - hazardous substances

Third-party certification

Photometrics

Luminaire description

Suspended, halo ring

Classification

-

Electric shock

Class I

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

25°C

Control gear position

Integral within luminaire

Supply circuit conductor connections

Loop wiring

Nominal voltage

220-240 V

Luminaire power factor

0.92

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471

Safety standard

SELV

Initial LED luminaire efficacy (minimum)

87 Lm/ W

Wattage

110 W/ 9100 lm up to 417 W/ 36360 lm

Colour temperature

3000K

4000K

Colour rendering index (Ra)

80

90

Beam angle

180°

Useful life

50 000 hours (L80B20)

Dimming protocol

DALI Dimming

Non-dimming

Standard.

Length

1000 mm

1500 mm

2010 mm

2466 mm

3012 mm

3558 mm

4000 mm

Optics

Opal diffuser

Colour

Black

Grey

White

RAL

Insert requirements.

Unified glare rating

-

Transverse

<18.6, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<18.6

Driver

-

Efficiency

96%

Frequency

50-60 Hz

Upward light output ratio (ULOR)

50%

Downward light output ratio (DLOR)

50%

Output direction

Direct/ indirect

Standard product features

Colour:

Available in three standard colours or bespoke RAL colour.

Features:

The remote driver and the ceiling rose can be hidden behind the plasterboard.

Finish:

Polyester powder coat.

Material:

Extruded aluminium profile with LEDs.

Shape:

Circular.

Size:

Seven sizes ranging from ranging from 1000-4000 mm.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability

Frame and packaging

Recycled content

Aluminium and packaging
