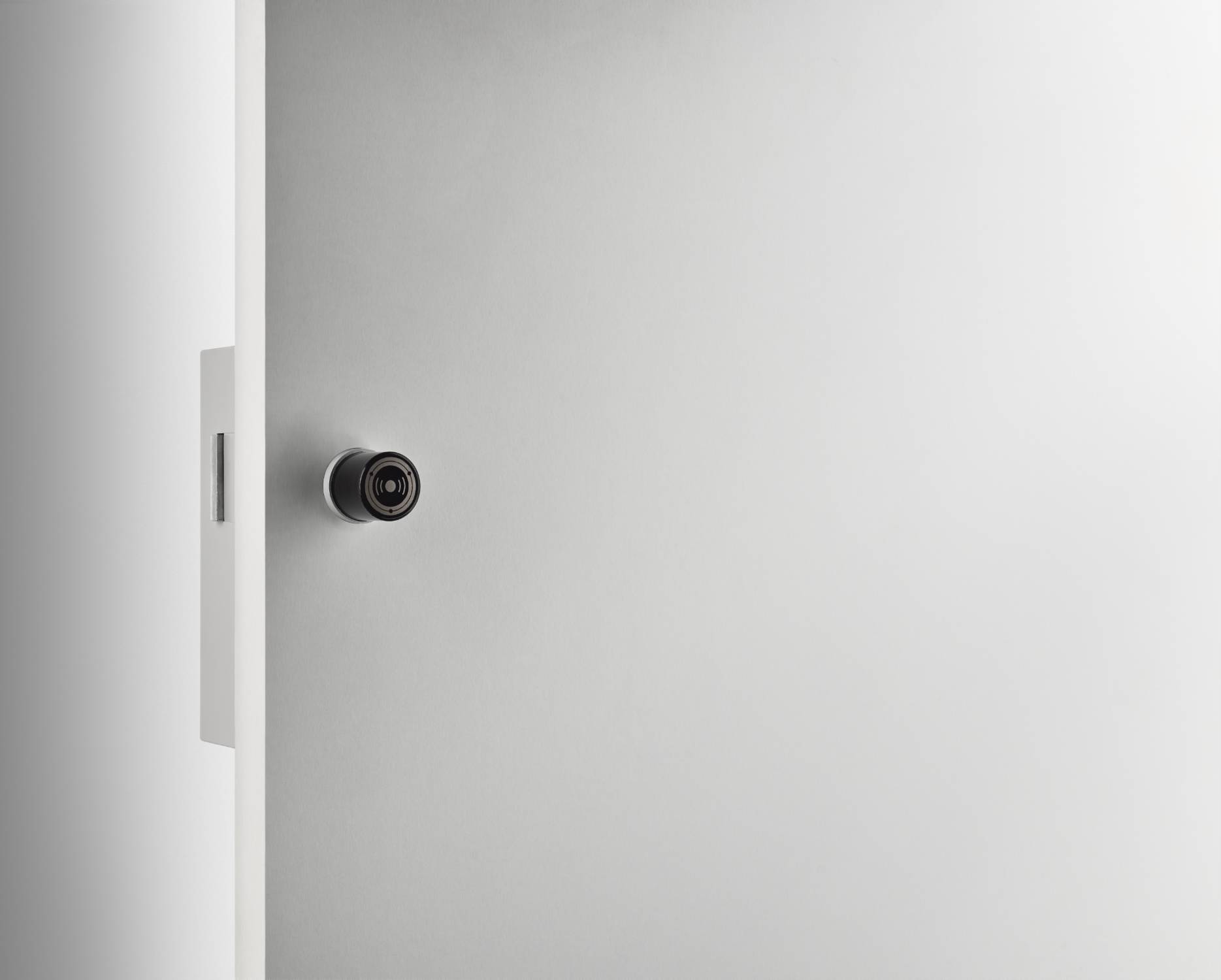

OTS®Pulse: Networked, Wireless and Flexible electronic locking solution - Electronic locks

Verified by manufacturer 3 months ago

OJMAR Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO/IEC 27001:2022 Information security, cybersecurity and privacy protection — Information security management systems — Requirements

    ISO/IEC 27001:2022 Information security, cybersecurity and privacy protection — Information security management systems — Requirements

    Certificate type

Networked, wireless and flexible electronic locking solution.

Jump to:
+34 943 748484 Website

Application

Suitable for lockers in both corporate and fitness applications.

For use on doors <22 mm thickness. Suitable door materials include:

  • Phenolic/ HPL.
  • Glass.
  • Metal (booster may be required).
  • MDF.
  • Chipboard.

Description

OTS® Pulse is a wireless networked smart locking solution that operates in highly secure cloud software. Designed to provide the versatility and flexibility demanded in today's hybrid working environment, this smart locker management system is a fully plug-and-play, online, self-managed system. Furthermore, OTS®PULSE can be installed quickly and easily with minimal disruption.


Features and benefits:


  • Real time analytics.
  • Space optimisation.
  • Cloud-based remote facility management.
  • Multi-technology platforms - RFID and BLE for mobile use.
  • Wireless - Simple, quick, cost-effective installation with no wiring.
  • Networked - Share, control, maintain and manage locks and lockers manually.
  • Flexible - Add or reconfigure locks quickly as demand grows without need for additional wiring.
  • On arrival booking functionality via an app.
  • API ready.
  • Up to ten years battery life.
  • Fully configurable by the end user.
  • Automatic connection of locks and real-time configuration and assignment of access permissions via the cloud software.
  • Integration with third party software via SDK.
  • Automatic openings.
  • Events log.
  • Keeps the configuration after battery change.
  • FW update via network.
  • Emergency power supply from the knob.
  • Configurable usage reports.
  • Offline mode in case of gateway failure: Data storage and automatic sending after network recovery.
  • Secure connection - Web connection is encrypted via Https with an SSL certificate.
  • The option of three nozzle colours.
  • CE, UKCA and FCC certified.
  • CO2-free manufacturing.


System components:


  • Programmer.
  • Gateway.
  • Software.
  • Real time lock.
  • User app.

General information

Color

Black

Green

White

Shape

Circle

Guidance for specification option:

Nozzle.

Rectangle

Width

119.5 mm

Height

118 mm

Warranty description

Two year

Uniclass

Pr_75_30_30_57 Multiple-technology readersPrimary

CAWS

W90/130 Electronic access control systems

W90/130 Electronic access control system

W90/363 Access control units

Specification data - Multiple-technology readers

Operating frequency

2.4 GHz.

Read range

Up to 50 mm.

Guidance for specification option:

Depending on the layout.

Manufacturer guidance

Reading field range (wireless).

Communication interface

Wireless proprietary stack.

Guidance for specification option:

Encryption mode, AES 256.

Integral keypad

Not required.

Visual indication

Multi-coloured LED (red, amber and green).

Colour

Black.

Black and green.

White.

Impact protection (minimum)

IK09/ IK07/ IP55.

Guidance for specification option:

  • Protection against solid and liquid bodies: IP55.
  • Protection against external impact: IK07.
  • Protection against internal impact: IK09.

Relative humidity (non-condensing)

<97%.

Mounting position

Recessed.

Accessories

Infoterminal.

Not required.

Temperature

-10℃ to 42℃ (interiors).

Dimensions

119.5 x 35 x 118 mm.

Weight

375 gr.

Diameter

23 mm.

Manufacturer guidance

Nozzle diameter.

Resistance

1000 N.

Manufacturer guidance

Knob resistance.

Housing colour

Grey (RAL 7035).

Usage

Free mode, dedicated mode, multifunction mode and rental mode.

Guidance for specification option:

  • Free mode: Up to 3 locks simultaneously with just one wearable.
  • Dedicated mode: Up to 6 locks simultaneously with just one wearable.
  • Multifunction mode: Up to 3 free and 3 dedicated locks simultaneously with just one wearable.
  • Rental mode: Configurable via App.

Manufacturer guidance

Usage modes.

Alarm

Low battery warning and high occupancy alert.

Locking

Nozzle in closed position, red LED blinking every two seconds (configurable) and in software and infoterminal in RT.

Manufacturer guidance

Lock close notifications.

Power supply

4 alkaline batteries VARTA Type AA.

Guidance for specification option:

Battery life, up to 10 years at room temperature (depending on usage and configuration.

Mode

RFID and Bluetooth.

Guidance for specification option:

  • RFID cards, wristbands, FOBs, technogym key, stickers and transponders.
  • Bluetooth OS: Android and iOS.

Manufacturer guidance

Authentication mode.

Sustainability data

Country of product manufacture

Spain

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Manufactured using 100% recycled energy. Materials and critical components are sourced locally, reducing carbon footprint.
