A fully socketed system of pipe and fittings which combines secure jointing with ease of installation.

Jump to:
+44 (0)844 856 5152 www.wavin.co.uk

Description

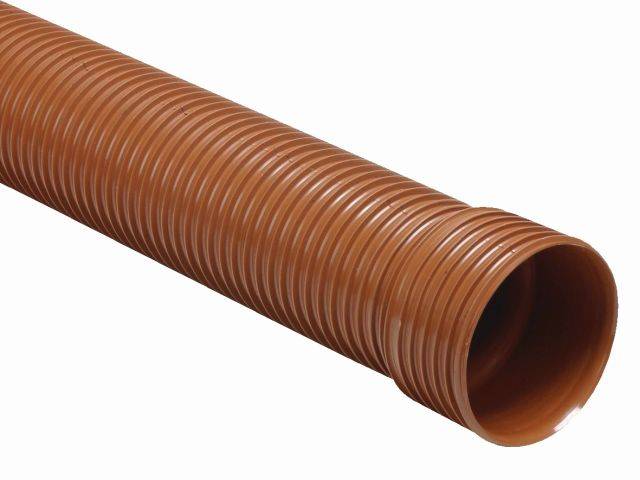

Plastics pipe system for adoptable and non-adoptable gravity sewers comprising a comprehensive range of pipes and fittings available in 150 mm, 225 mm and 300 mm diameters. The system has a smooth inner surface with concentric external ribs, which provide exceptional axial rigidity and enhanced radial strength without a significant increase in weight. BSI Kitemarked.

General information

Uniclass 2015

Pr_65_52_07_88 Unplasticized polyvinyl chloride (PVC-U) solid wall below-ground drainage pipes and fittingsPrimary

CAWS

R12/14 Pipes, bends and junctions – PVC-U – solid wall

R12/344 Pipes, bends and junctions - plastics - structured wall

Specification data - Unplasticized polyvinyl chloride (PVC-U) solid wall below-ground drainage pipes and fittings

Product Reference

OSMA UltraRib

Type

6UR043

S/S Pipe. Length: 3 m. 150 mm nominal size.

6UR046

S/S Pipe. Length: 6 m. 150 mm nominal size.

6UR073

P/E Pipe. Length: 3 m. 150 mm nominal size.

6UR869

S/S Rocker Pipe. Length: 600 mm. 150 mm nominal size.

9UR043

S/S Pipe. Length: 3 m. 225 mm nominal size.

9UR046

S/S Pipe. Length: 6 m. 225 mm nominal size.

9UR073

P/E Pipe. Length: 3 m. 225 mm nominal size.

9UR869

S/S Rocker Pipe. Length: 600 mm. 225 mm nominal size.

12UR043

S/S Pipe. Length: 3 m. 300 mm nominal size.

12UR073

P/E Pipe. Length: 3 m. 300 mm nominal size.

12UR869

S/S Rocker Pipe. Length: 600 mm. 300 mm nominal size.

Accessories

See 'Options' below and insert requirements.

Product Options

Accessories:

  • 6UR290 – Access cover 150 mm – P/E screwed access cover.
  • 6UR292 – Access cover 150 mm – S/S screwed access cover.
  • 6UR567 – Bend 15° 150 mm.
  • 9UR567 – Bend 15° 225 mm.
  • 12UR567 – Bend 15° 300 mm.
  • 6UR566 – Bend 30° 150 mm.
  • 9UR566 – Bend 30° 225 mm.
  • 12UR566 – Bend 30° 300 mm.
  • 6UR563 – Bend 45° 150 mm.
  • 9UR563 – Bend 45° 225 mm.
  • 12UR563 – Bend 45° 300 mm.
  • 6UR560 – Bend 87.5° 150 mm– 6UR socket x 160 mm BS EN 1401 socket.
  • 6UR561 – Bend 87.5° 150 mm.
  • 9UR561 – Bend 87.5° 225 mm.
  • 12UR561 – Bend 87.5° 300 mm.
  • 6UR213 – Equal junction 45° 150 mm– D/S Junction to UltraRib spigot.
  • 9UR213 – Equal junction 45° 225 mm– D/S Junction to UltraRib spigot.
  • 12UR213 – Equal junction 45° 300 mm– D/S Junction to UltraRib spigot.
  • 6UR193 – Equal junction 87.5°– D/S Junction to UltraRib spigot.
  • 6UR993 – Inflatable testing plug.
  • 6UR099 – Level invert reducer 150 mm– S/S level invert reducer, to 110 mm pipe.
  • 9UR095 – Level invert reducer 225 mm– S/S level invert reducer, to 150 mm UltraRib spigot.
  • 12UR093 – Level invert reducer 300 mm– D/S level invert reducer, to 225 mm UltraRib spigot.
  • 6UR205 – Pipe coupler 150 mm– D/S Pipe Coupler, for jointing UltraRib pipe.
  • 9UR205 – Pipe coupler 225 mm– D/S Pipe Coupler, for jointing UltraRib pipe.
  • 12UR205 – Pipe coupler 300 mm – D/S Pipe Coupler, for jointing UltraRib pipe.
  • 6UR117 – Ring seal 150 mm– UltraRib socket.
  • 9UR117 – Ring seal 225 mm – UltraRib socket.
  • 12UR117 – Ring seal 300 mm – UltraRib socket.
  • 6UR105 – Slip coupler 150 mm– D/S Slip Coupler, for new branch entry connections and repairs.
  • 9UR105 – Slip coupler 225 mm– D/S Slip Coupler, for new branch entry connections and repairs.
  • 12UR105 – Slip coupler 300 mm– D/S Slip Coupler, for new branch entry connections and repairs.
  • 6UR296 – Socket plug 150 mm – P/E socket plug.
  • 9UR296 – Socket plug 225 mm– P/E socket plug.
  • 12UR296 – Socket plug 300 mm– P/E socket plug.
  • 6UR129 – UltraRib D/S Adaptor– Connector to BS EN 295 thinwall clay spigot.
  • 6UR142 – UltraRib D/S Adaptor– 6UR socket x 160 mm BS EN 1401 spigot.
  • 6UR141 – UltraRib S/S Adaptor – 6UR socket x 160 mm BS EN 1401 spigot.
  • 6UR143 – UltraRib S/S Adaptor– 6UR socket x 160 mm BS EN 1401 spigot.
  • 6UR219 – Unequal junction 45° 150 mm– To BS EN 1401 spigot D/S Junction – 150 x 110 mm.
  • 9UR224 – Unequal junction 45° 225 mm– To BS EN 1401 spigot D/S Junction – 225 x 110 mm.
  • 9UR226 – Unequal junction 45° 225 mm– To BS EN 1401 spigot D/S Junction – 225 x 160 mm.
  • 9UR227 – Unequal junction 45° 225 mm– To UltraRib spigot D/S Junction – 225 x 150 mm.
  • 12UR236 – Unequal junction 45° 300 mm– To BS EN 1401 spigot D/S Junction – 300 x 160 mm.
  • 12UR237 – Unequal junction 45° 300 mm– To UltraRib spigot D/S Junction 300 x 150 mm.
  • 12UR240 – Unequal junction 45° 300 mm– To UltraRib spigot D/S Junction – 300 x 225 mm.
  • 6UR199 – Unequal junction 90°.

Literature

OSMA UltraRib Product & Installation Guide

OSMA UltraRib Product & Installation Guide

OSMA Below Ground Trade Price List 1st March 2020

OSMA Below Ground Trade Price List 1st March 2020

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Additional certifications:

  • 150/ 225/ 300 mm: 10/H151 (Roads and Bridges)
  • BS EN 13476-3
  • Water Industry Specifications: WIS 4-35-01
