A fully socketed system of pipe and fittings which combines secure jointing with ease of installation.

Jump to:
+44 (0)844 856 5152 www.wavin.co.uk

Description

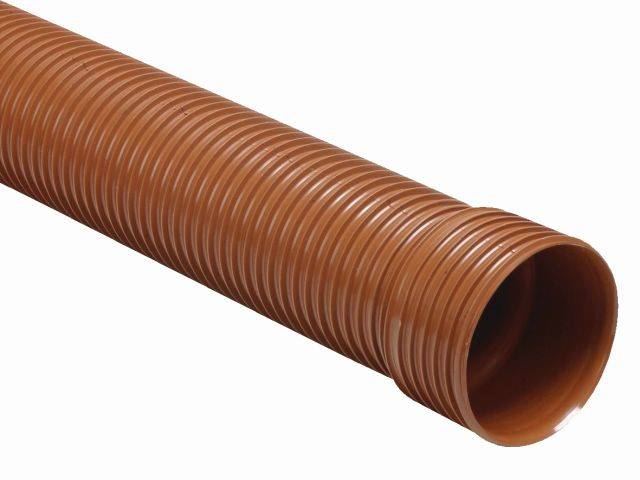

Plastics pipe system for adoptable and non-adoptable gravity sewers comprising a comprehensive range of pipes and fittings available in 150 mm, 225 mm and 300 mm diameters. The system has a smooth inner surface with concentric external ribs, which provide exceptional axial rigidity and enhanced radial strength without a significant increase in weight. BSI Kitemarked.

General information

Uniclass 2015

Pr_65_52_07_88 Unplasticized polyvinyl chloride (PVC-U) solid wall below-ground drainage pipes and fittingsPrimary

CAWS

R12/14 Plastics pipelines

R12/344 Pipes, bends and junctions - plastics - structured wall

Specification data - Unplasticized polyvinyl chloride (PVC-U) solid wall below-ground drainage pipes and fittings

Product Reference

OSMA UltraRib

Type

6UR043

S/S Pipe. Length: 3 m. 150 mm nominal size.

6UR046

S/S Pipe. Length: 6 m. 150 mm nominal size.

6UR073

P/E Pipe. Length: 3 m. 150 mm nominal size.

6UR869

S/S Rocker Pipe. Length: 600 mm. 150 mm nominal size.

9UR043

S/S Pipe. Length: 3 m. 225 mm nominal size.

9UR046

S/S Pipe. Length: 6 m. 225 mm nominal size.

9UR073

P/E Pipe. Length: 3 m. 225 mm nominal size.

9UR869

S/S Rocker Pipe. Length: 600 mm. 225 mm nominal size.

12UR043

S/S Pipe. Length: 3 m. 300 mm nominal size.

12UR073

P/E Pipe. Length: 3 m. 300 mm nominal size.

12UR869

S/S Rocker Pipe. Length: 600 mm. 300 mm nominal size.

Accessories

See 'Options' below and insert requirements.

Product Options

Accessories:

  • 6UR290 – Access cover 150 mm – P/E screwed access cover.
  • 6UR292 – Access cover 150 mm – S/S screwed access cover.
  • 6UR567 – Bend 15° 150 mm.
  • 9UR567 – Bend 15° 225 mm.
  • 12UR567 – Bend 15° 300 mm.
  • 6UR566 – Bend 30° 150 mm.
  • 9UR566 – Bend 30° 225 mm.
  • 12UR566 – Bend 30° 300 mm.
  • 6UR563 – Bend 45° 150 mm.
  • 9UR563 – Bend 45° 225 mm.
  • 12UR563 – Bend 45° 300 mm.
  • 6UR560 – Bend 87.5° 150 mm– 6UR socket x 160 mm BS EN 1401 socket.
  • 6UR561 – Bend 87.5° 150 mm.
  • 9UR561 – Bend 87.5° 225 mm.
  • 12UR561 – Bend 87.5° 300 mm.
  • 6UR213 – Equal junction 45° 150 mm– D/S Junction to UltraRib spigot.
  • 9UR213 – Equal junction 45° 225 mm– D/S Junction to UltraRib spigot.
  • 12UR213 – Equal junction 45° 300 mm– D/S Junction to UltraRib spigot.
  • 6UR193 – Equal junction 87.5°– D/S Junction to UltraRib spigot.
  • 6UR993 – Inflatable testing plug.
  • 6UR099 – Level invert reducer 150 mm– S/S level invert reducer, to 110 mm pipe.
  • 9UR095 – Level invert reducer 225 mm– S/S level invert reducer, to 150 mm UltraRib spigot.
  • 12UR093 – Level invert reducer 300 mm– D/S level invert reducer, to 225 mm UltraRib spigot.
  • 6UR205 – Pipe coupler 150 mm– D/S Pipe Coupler, for jointing UltraRib pipe.
  • 9UR205 – Pipe coupler 225 mm– D/S Pipe Coupler, for jointing UltraRib pipe.
  • 12UR205 – Pipe coupler 300 mm – D/S Pipe Coupler, for jointing UltraRib pipe.
  • 6UR117 – Ring seal 150 mm– UltraRib socket.
  • 9UR117 – Ring seal 225 mm – UltraRib socket.
  • 12UR117 – Ring seal 300 mm – UltraRib socket.
  • 6UR105 – Slip coupler 150 mm– D/S Slip Coupler, for new branch entry connections and repairs.
  • 9UR105 – Slip coupler 225 mm– D/S Slip Coupler, for new branch entry connections and repairs.
  • 12UR105 – Slip coupler 300 mm– D/S Slip Coupler, for new branch entry connections and repairs.
  • 6UR296 – Socket plug 150 mm – P/E socket plug.
  • 9UR296 – Socket plug 225 mm– P/E socket plug.
  • 12UR296 – Socket plug 300 mm– P/E socket plug.
  • 6UR129 – UltraRib D/S Adaptor– Connector to BS EN 295 thinwall clay spigot.
  • 6UR142 – UltraRib D/S Adaptor– 6UR socket x 160 mm BS EN 1401 spigot.
  • 6UR141 – UltraRib S/S Adaptor – 6UR socket x 160 mm BS EN 1401 spigot.
  • 6UR143 – UltraRib S/S Adaptor– 6UR socket x 160 mm BS EN 1401 spigot.
  • 6UR219 – Unequal junction 45° 150 mm– To BS EN 1401 spigot D/S Junction – 150 x 110 mm.
  • 9UR224 – Unequal junction 45° 225 mm– To BS EN 1401 spigot D/S Junction – 225 x 110 mm.
  • 9UR226 – Unequal junction 45° 225 mm– To BS EN 1401 spigot D/S Junction – 225 x 160 mm.
  • 9UR227 – Unequal junction 45° 225 mm– To UltraRib spigot D/S Junction – 225 x 150 mm.
  • 12UR236 – Unequal junction 45° 300 mm– To BS EN 1401 spigot D/S Junction – 300 x 160 mm.
  • 12UR237 – Unequal junction 45° 300 mm– To UltraRib spigot D/S Junction 300 x 150 mm.
  • 12UR240 – Unequal junction 45° 300 mm– To UltraRib spigot D/S Junction – 300 x 225 mm.
  • 6UR199 – Unequal junction 90°.

Literature

Third party certifications

Additional certifications:

  • 150/ 225/ 300 mm: 10/H151 (Roads and Bridges)
  • BS EN 13476-3
  • Water Industry Specifications: WIS 4-35-01
