Osma Domestic Channel.
Osma domestic linear drainage products can be used in a variety of applications, including:
The Osma domestic channel range offers a complete integrated surface water drainage system for all domestic applications. All systems are designed to take a loading of A15

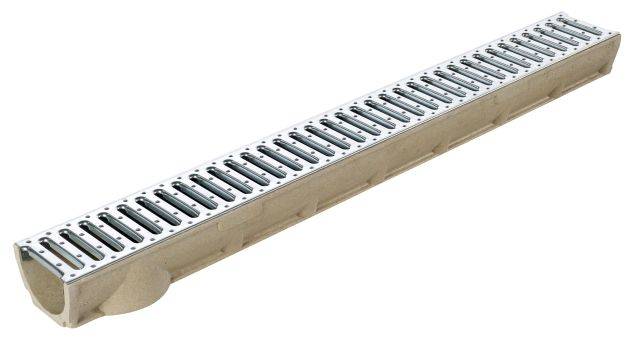

Osma Channel:
Lightweight, polymer concrete, domestic channel supplied complete with galvanized 80 mm deep grating, suitable for use in front of domestic garage thresholds and pedestrian areas around domestic property.
Osma Rain Channel:
Lightweight recycled polypropylene channel supplied complete with recycled polypropylene 87 mm deep grating. Suitable for applications such as paths, patios, gardens and in front of domestic garage thresholds.
Osma Threshold Drain:
Lightweight, PVC-U Threshold Drain, designed to be used in front main access doorways enabling level access as required by Building Regulations Approved Document M. The Threshold Drain is complemented by a selection of ancillary products, which enable a connection to the drainage system.
Applications:
Osma domestic linear drainage products can be used in a variety of applications, including:
Uniclass 2015 | |
CAWS | Q10/180 Drainage channel systems with gratings Q10/30 Drainage channel system |
Product Reference | 100OC210OsmaChannel with galvanized grating, 1 m length. 100OC211OsmaChannel grating, 1 m length. 100OC410Osma RainChannel with self-locking grating, 1 m length. 100OC510Osma Threshold channel, 1.2 m length. |
Accessories | 100OC230OsmaChannel sump unit. 100OC260OsmaChannel end plate. 100OC270OsmaChannel end outlet connector, 110 mm. 100OC280OsmaChannel vertical outlet connector, 110 mm. 100OC460Osma RainChannel end plate. 100OC461Osma RainChannel garage pack. 100OC520Osma Threshold outlet adaptor. 100OC530Osma Threshold jointing piece. 100OC560Osma Threshold end plate x 2. |
