OS2 SHEVTEC Control Panel - Intelligent 24 V d.c. Control System
Verified by manufacturer 2 days ago
The OS2 SHEVTEC Controller is a 24 V DC system for driving 2-wire actuators in smoke or environmental ventilation setups. It runs on 230 V AC, supplies up to 8 A, and includes battery backup.
Application
Smoke and Environmental Ventilation
Description
The OS2 SHEVTEC Controller is an intelligent 24V dc control system designed to drive 2-wire 24 V dc actuators in a smoke control and/or environmental ventilation system.
Operating from a 230 V ac 5 A supply, the OS2 SHEVTEC Controller can deliver up to 8 A to drive 24 V motorised actuators and magnetic catches. Battery backup is provided for continued operation after mains supply interruption.
The OS2 SHEVTEC Controller can be mounted locally to the devices to be operated or in a centralised location. Each SHEVTEC Controller can operate independently or can be linked to others to produce a networked control system. The networked control system in turn can operate standalone or be linked to a building management system.
General information
Color | Beige |
Finish | Powder-coated |
Material | Steel |
Shape | Square |
Length | 337.8 mm |
Width | 128.4 mm |
Height | 364.5 mm |
Uniclass | |
CAWS | S92/410 Control panels |
SKU Code | FCS12250000 |
Product range |
Specification data - Mechanical services control panels
Classification data | |
Description | Intelligent 24 V d.c. control system. |
Enclosure | |
Ingress protection (minimum) | IP 30. |
Material | Steel. |
Finish | Powder-coated. |
Colour | White. |
Doors and panels | |
Form | Right-angle return construction with rounded edges and corners, concealed hinges and internal gaskets. |
Swing | 180°. |
Isolator | |
Rated operational current (In) | 8 A. |
Rated operational voltage (Ue) | 230 V. |
Rated operational frequency | 50/ 60 Hz. |
Number of poles | Two. Guidance for specification option: Output nominal 24 V d.c. two channels, output not to exceed 8 A per channel. |
Cable entry | Via 15 x 20 mm end mounted cable glands and/ or one rear entry slot for concealed connection. |
Battery back-up | 2 x 12 V d.c. 7.0 Ah sealed lead-acid batteries. Guidance for specification option:
|
Mass | 13 kg. Guidance for specification option: Approximate. |
RelativeHumidity | 10–90% (non-condensing). |
TemperatureRange | Storage: -20 to +50°C, Operating: -5 to +40°C. Guidance for specification option: Operating temperature for control panel (not including batteries. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
Literature
Literature type

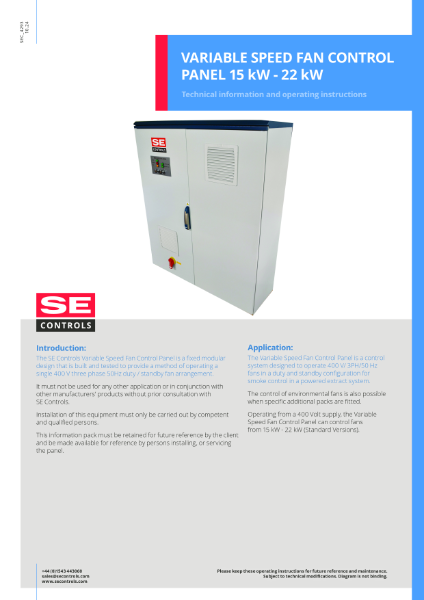

SEC_4293_Variable Speed Fan Control Panel 15-22kW O&M
SHEVTEC Controller

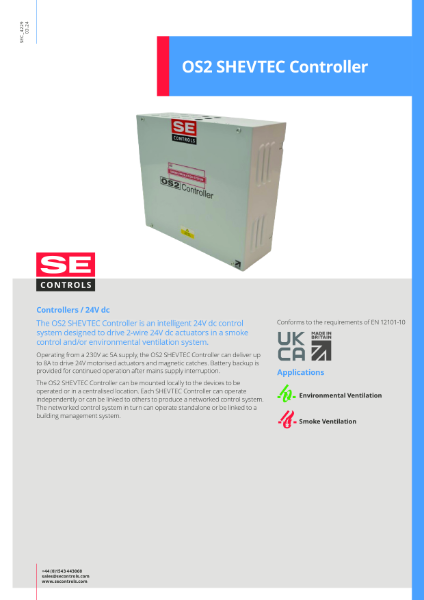

SEC_4229_SHEVTEC_Controller_Datasheet_03-24

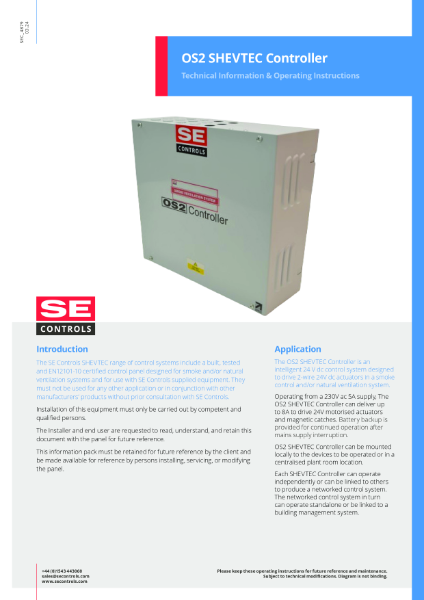

SEC_4879_OS2-SHEVTEC-Controller-O-M-03-24-1-6-(3)
