Ornimat - Fibre Cement Cladding Panels (SVK)

Verified by manufacturer 2 months ago

Wienerberger Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

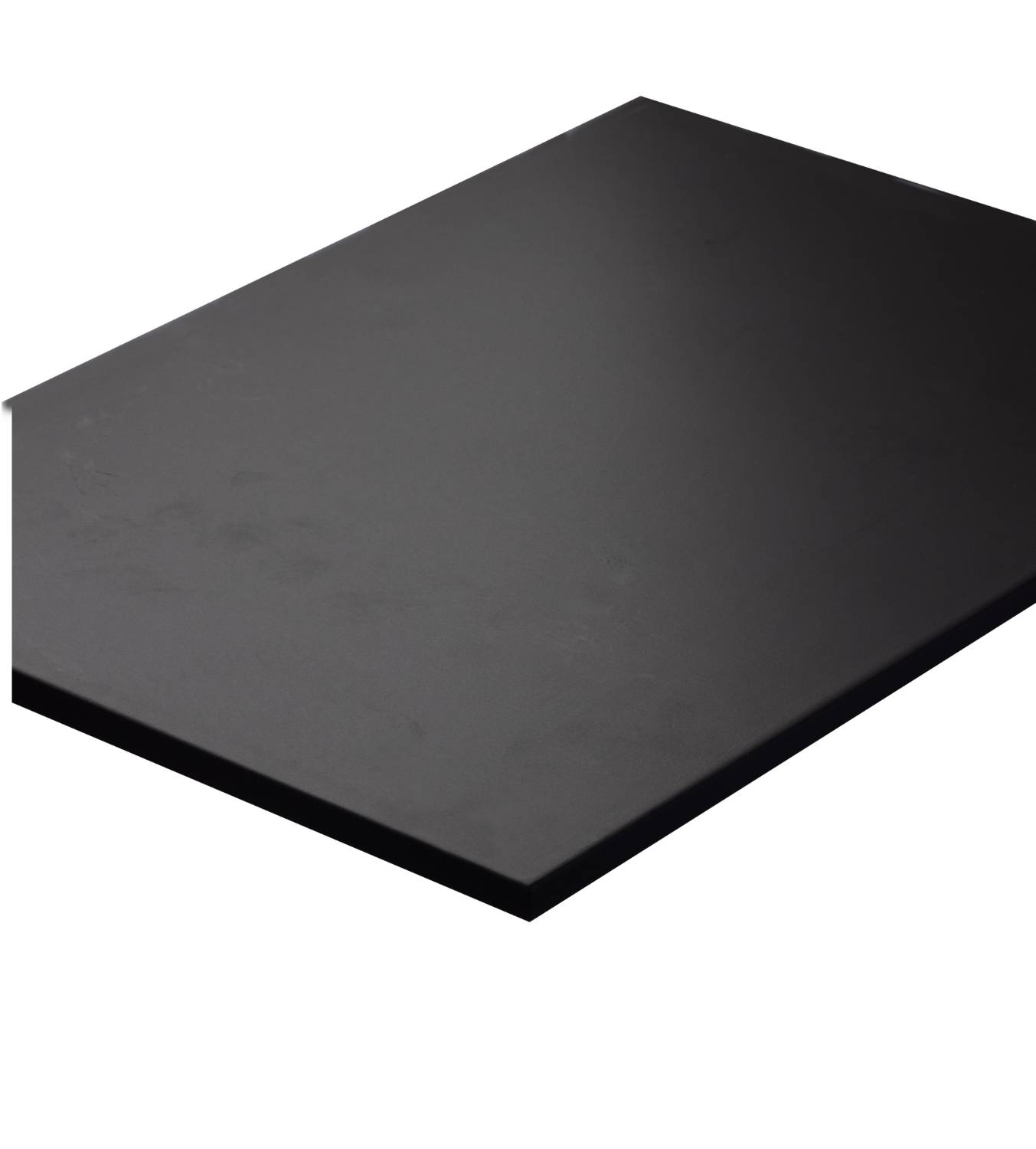

Fibre cement cladding panels with A2 fire rating for external, internal and soffit use.

Jump to:
+44 (0)161 4918200 www.wienerberger.co.uk

Application

Suitable for use as back ventilated and drained rainscreen cladding and soffits.

Description

SVK panels are manufactured from a homogeneous mixture of Portland cement, selected reinforcement fibres, additives and water which is built up in thin layers and compressed to create sheets which are left to dry and harden. Ornimat combines bespoke sizing with a superior quality paint finish on all visible surfaces.



Features and benefits:

  • A2 s1, d0 fire classification in accordance with BS EN 13501-1.
  • Panels conform to BS EN 12467.
  • Lightweight.
  • Smooth UV-resistant polyurethane paint.
  • Painted edges.
  • Bespoke colour options available.
  • Weather resistant.
  • Resistant to mould, rot and bacteria.
  • Low maintenance.
  • Fixing options include rivets, screws or mechanical secret fix.
  • 10 year colour guarantee.
  • BBA certified.

General information

Color

18 standard colours. Bespoke RAL/NCS colour options available.

Cream

White

White, Seashell.

Grey

Grey, Steel, Stone, Stone, Jet, Shadow, Carbon.

Ivory

Red

Fire.

Show more

Finish

Smooth

Painted

Material

Fibre cement

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

8 mm

10mm and 12mm on request.

WarrantyDescription

Ten year

Material and colour guarantee.

Uniclass

Pr_25_71_11_25 Fibre-reinforced cement boardsPrimary

CAWS

H92/120 Rainscreen cladding

H20/155 Sheet cladding

H20/10 Sheet cladding

H20/150 Sheet cladding

Specification data - Fibre-reinforced cement boards

Standard

To BS EN 12467.

Fire rating

A2-s1, d0.

Reaction to Fire (BS EN 13501-1).

Sheet size

-

Nominal thickness

8 mm.

10 mm.

Length

Bespoke.

Cut to size, consult manufacturer.

Edges

Square.

Finish as delivered

Painted.

Colour

White (EST01).

Seashell (EST02).

White.

Cream (EST03).

Ivory (EST04).

Quartz (EST05).

Steel (EST06).

Grey.

Grey (EST07).

Stone (EST08).

Grey.

Jet (EST09).

Grey.

Shadow (EST10).

Grey.

Carbon (EST11).

Grey.

Black (EST12).

Fire (ELM01).

Red.

Sunrise (ELM02).

Orange.

Sand (ELM03).

Yellow.

Forest (ELM04).

Green.

Water (ELM05).

Blue.

Wood (ELM06).

Wood.

Durability

Durability (Heat-Rain) Pass.

RL ≥0.75.

Durability (Freeze-Thaw) RL ≥ 0.75.

Durability (Warm Water) RL ≥ 0.75.

Durability (Soak-Dry) RL ≥ 0.75.


Water impermeability to EN 1307 annex G:

No Water Drops.

Modulus of elasticity

14 000 MPa.

Density

≥1700 kg/m³ .

Variation

Level I.

BendingStrength

Class 5 (≥24 MPa).

Weather resistance

Category A.

Fitting/ Fixing

Rivets.

Screws.

Secret fix.

Nominal weight

14.6 kg/m².

Third-party certification

BBA Certificate and ETA Certificate.

Environmental information

Contains Red List materials

No

Country of product manufacture

Belgium

Literature

Wienerberger SVK EPD

Wienerberger SVK EPD

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate

EPD

EPD

Environmental Product Declaration
