Őra Plain Acoustic Wall Panels

Verified by manufacturer 6 months ago

ORA12 - Öra Plain 12 mm

Allsfar Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

  • Quiet Mark Certification

    Quiet Mark Certification

    Certificate type

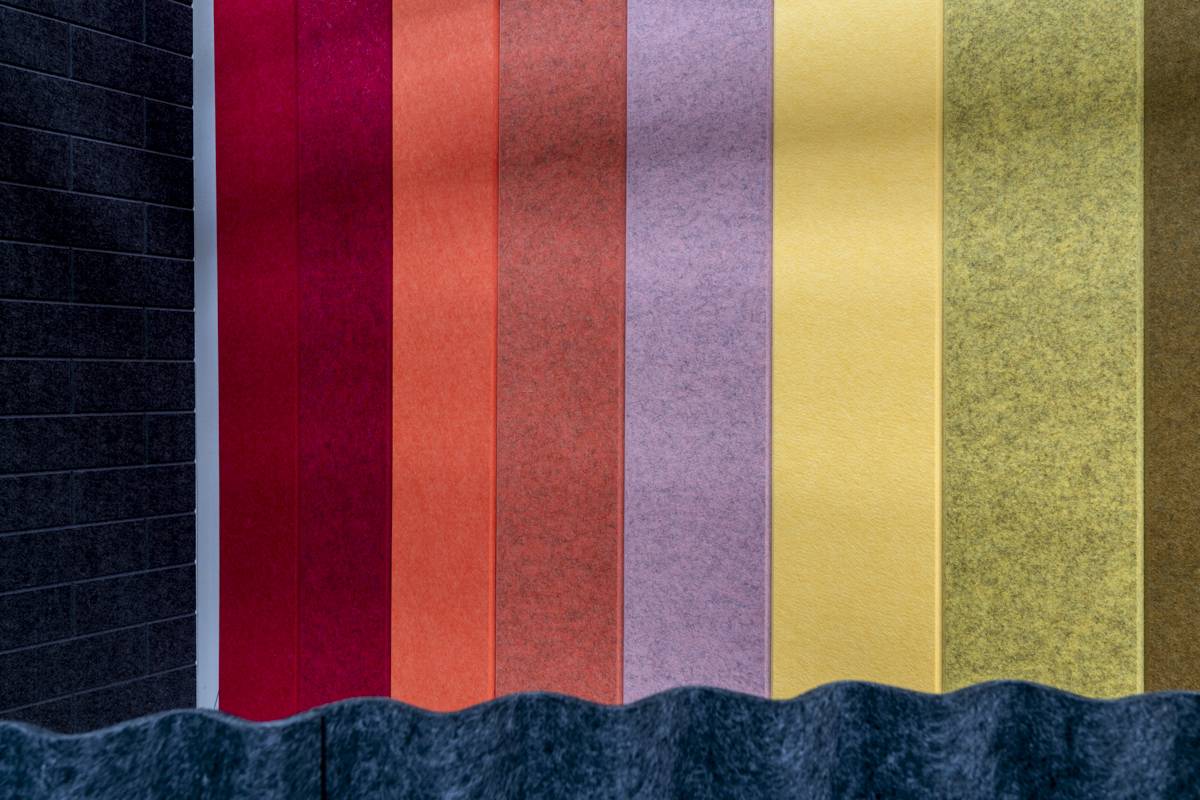

Acoustic wall coverings for commercial interiors including offices and co-working spaces.

Jump to:
BIM object icon
+44 (0)20 3889 9888 Website

Application

Suitable for all commercial interiors including offices and co-working spaces.

Description

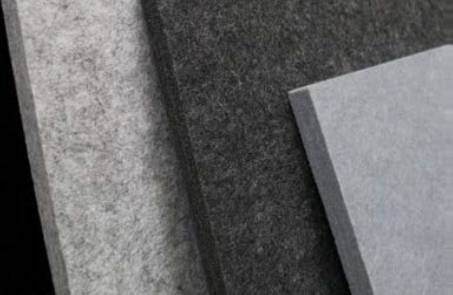

Acoustic wall coverings available in 12 mm and 24 mm thickness.


Features and benefits:

  • Plain panels 2440 x 1220 mm. Bespoke sizes and shapes are available.
  • Made from 60% recycled PET.
  • Different mounting options available to increase NRC rating.
  • Available in a range of vibrant modern colours.
  • Can be cut to any shape and size.
  • Cost-effective, creative way to manage acoustics without compromising on visual impact.
  • Bespoke printing available.
  • Not affected by moisture, mould or mildew.
  • No formaldehyde binders.
  • Low VOCs.
  • Easy to install with contact adhesive.
  • REACH: Pass.
  • Pinnable surface.

General information

Color

Beige

Black

Blue

Brown

Green

Show more

Material

Polyester fibre (PET)

Shape

Rectangle

Other

Bespoke shapes are available.

Length

2400 mm

Bespoke

Width

1200 mm

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Third-party certification

Quiet Mark classification.

Form

Panel.

Application

Wall mounting.

Material

Polyethylene terephthalate (PET).

Material density

185 kg/m³.

Acoustic performance

-

Purpose

Absorber.

Fire performance

-

Reaction to fire

To EN 13501-1:2007+a1:2009, B-s1, d0. To ASTM E84-16, Class A.

Dimensions

-

Size (length x width)

2400 x 1200 mm.

Bespoke.

Insert requirements.

Thickness (overall)

12 mm.

Finish

A range of different finishes can be created. The panels can also be cut, printed and laminated. Consult manufacturer and insert requirements.

-

Colour

Rosella red.

Rosella red fleck.

Oriole orange.

Oriole orange fleck.

Flamingo pink.

Canary yellow.

Canary yellow fleck.

Lark mustard fleck.

Goldcrest green fleck.

Woodpecker green.

Woodpecker green fleck.

Peacock teal fleck.

Mallard teal.

Swallow dark blue.

Jacarina blue fleck.

Kingfisher blue fleck.

Sabrewing purple fleck.

Sanderling grey.

Owl dark beige fleck.

Dollarbird blue grey fleck.

Wheatear beige.

Wheatear beige fleck.

Heron grey.

Dove white.

Skua grey.

Raven black.

Noise reduction coefficient (NRC)

0.45.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.45 kg CO₂ eq/kg

Recyclability

Recyclable at end of product life.

100% recyclable at end of life

Recycled content

60 %

Made from 60% recycled PET.

EPD

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

EPD

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Made in Britain

Made in Britain

Made In Britain

Quiet Mark Certification

Quiet Mark Certification

Quiet Mark Certification

Literature

AllSfar Catalogue

AllSfar Catalogue

Look Book 3.0

Look Book 3.0

Sustainable Acoustics

Sustainable Acoustics

Specification Sheet for Ora Plain and Bespoke Acoustic Wall Panels

Specification Sheet for Ora Plain and Bespoke Acoustic Wall Panels

AllSfar Cleaning Guide

AllSfar Cleaning Guide

Made in Britain

Made in Britain

AllSfar Look Book 4.0

AllSfar Look Book 4.0
