Zentia

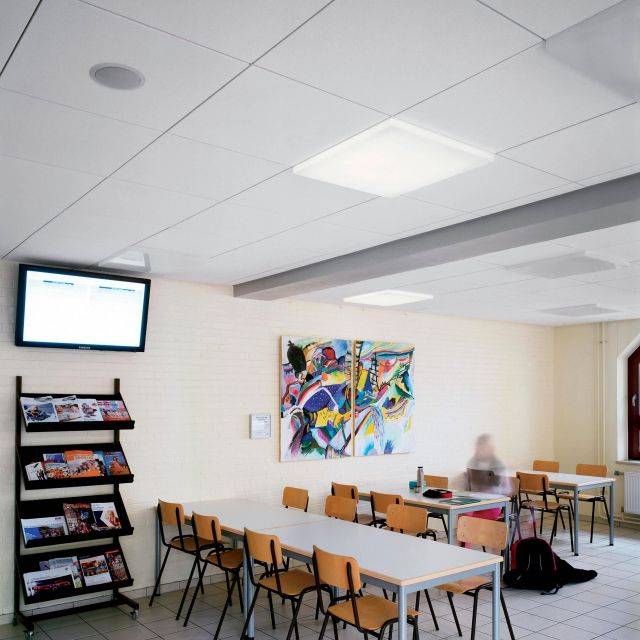

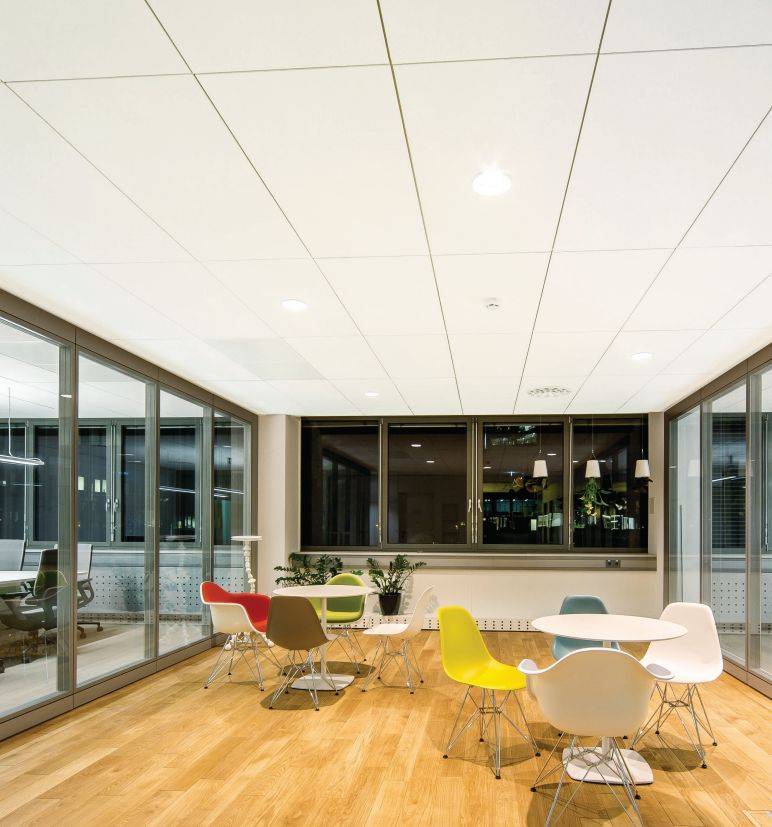

Lay-in mineral ceiling tile.

Jump to:
+44 (0)800 371849 www.zentia.com
Application

  • Open spaces.
  • Call centres.
  • Libraries.

Description

Lay-in mineral ceiling tile with fine textured surface and offers Class A sound absorption.

Features and benefits:

  • Fine textured surface with abrasion resistant paint finish.
  • Lightweight, using a fibre glass fleece back and front to provide high mechanical strength.
  • Choice of edge profiles.
  • Vector edge enables semi-concealed grid.
  • Choice of sizes and thicknesses.
  • Suitable for environments up to 95% relative humidity.
  • 15-year product guarantee.
  • 30-year system guarantee.

Load capacity:

  • Varies with layout, grid type, tile selected and hanger spacing. Consult manufacturer's technical sales department for details.
  • Fittings exceeding the load capacity or with dynamic characteristics (such as air diffusers) will need independent suspension.

Grids:

Compatible grids, by edge detail, available in a range of colours. To be specified separately; consult manufacturer for details

Board/ Tegular/ Vector edge details:

  • Prelude 24 TLS: Exposed 24 mm grid.
  • Prelude 24 XL²: Exposed 24 mm grid.

- MicroLook edge details:

  • Prelude 15 TL: Exposed 15 mm grid.
  • Prelude 15 XL²: Exposed 15 mm grid
  • Interlude HRC XL²: Exposed 15 mm grid with double reveal feature.
  • Silhouette 6 mm XL²: Exposed 15 mm grid.

Applications:

  • Open spaces.
  • Call centres.
  • Libraries.

General information

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

Specification data - Mineral fibre infill units

Product Reference

Optima

Arrangement

Insert requirements. Consult manufacturer for BIM/ CAD details.

Edge detail

Board

Tegular

MicroLook

Vector

Module size (w x l x t, nominal)

600 x 600 x 15 mm

Board, MicroLook or Tegular edge detail only. Weight: 1.5 kg/m².

600 x 600 x 20 mm

Board, MicroLook or Tegular edge detail only. Weight: 2.0 kg/m².

600 x 600 x 22 mm

Vector edge detail only. Weight: 2.8 kg/m².

600 x 1200 x 22 mm

Vector edge detail only. Weight: 2.8 kg/m².

Standard product features

Technical characteristics:

  • Light reflectance value (LRV): 87%.
  • Reaction to fire: Euroclass A2-s1, d0.
  • Thermal conductivity: 0.032 W/m·K.
  • Recycled content to ISO 14021 (maximum): 77%.
  • Acoustic absorption (weighted sound absorption coefficient): 0.90 for 15 mm Board, MicroLook or Tegular edge. 0.95 for 20 mm Board, MicroLook or Tegular edge.1.00 for 22 mm Vector edge.

Acoustic absorption:

Weighted sound absorption coefficient (alpha w). Rating for random incidence sound absorption determined in accordance with EN ISO 11654. Measured values obtained in accordance with EN ISO 20354 are converted into octave bands, plotted on a graph and compared to a standard reference curve until a 'best fit' is obtained. The derived αw will vary between 0.00 and 1.00.

Acoustic attenuation:

Dncw rating derived from laboratory measurement of room-to-room airborne sound insulation of suspended ceiling with plenum above. Rating determined in accordance with EN ISO 717-1 from measurements made in accordance with EN150 10848-2 over the third-octave band frequency range 100–3150 Hz.

Product Options

Edge detail:

  • Board: Lay-in square edge for 24 mm grid.
  • Tegular: Lay-in rebated edge for 24 mm grid. Rebate depth: 8 mm.
  • MicroLook: Lay-in rebated edge for 15 mm grid. Rebate depth: 8 mm.
  • Vector: Lay-in rebated edge for 24 mm grid. Rebate depth: 13 mm.

Third party certifications
  • CE marking: Notified Body accredited
