Description

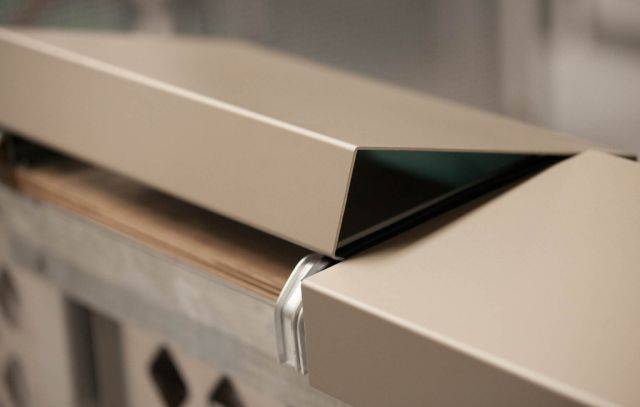

Optima® Clip-On is a bespoke, secret fix metal coping system. Panels are connected laterally by interlocking into a groove, giving the appearance of either a recessed or hairline joint, and are fixed using tapered top hat joint straps fabricated from extruded 6063 T6 alloy grade aluminium onto an extruded aluminium support framework.

Features:

  • Developed and manufactured in accordance with CWCT guidelines.
  • The system comes complete with all straight sections, stop-ends, tee shapes, wall abutments, corner pieces, obliques and column caps.
  • EPDM gasket joints.
  • The chance of noise is baffled out.
  • Thermal expansion is catered for within joints.
  • Non standard profile designs available in maximum lengths of 4.0 m.
  • Coating warranties up to 25 years are available subject to the type of finish, colour, and the physical and environmental location of the building.

Consult Sotech regarding structural restrictions, and constraints relating to panel size, fastener type and frequency of fixings.

General information
Material

Aluminium

Stainless steel (rigidized)

Weathered zinc

Zinc

Finish

Anodized

Post fabrication coating by quality assured applicators to BS 3987

Mill finish

Natural

Patterned

Polished

Polyester powder coated

Post fabrication coating by quality assured applicators to BS 6496

Precoated PVdf or polyester

Features

Developed and manufactured in accordance with CWCT guidelines

The system comes complete with all straight sections, stop-ends, tee shapes, wall abutments, corner pieces, obliques and column caps

EPDM gasket joints

The chance of noise is baffled out

Thermal expansion is catered for within joints

Non standard profile designs available in maximum lengths of 4.0 m

Coating warranties up to 25 years are available subject to the type of finish, colour, and the physical and environmental location of the building

Consult Sotech regarding structural restrictions, and constraints relating to panel size, fastener type and frequency of fixings

Uniclass 2015
Light steel wall framing systems (Ss_25_10_32_45)Primary
Specification data - Light steel wall framing systems
Product Reference

Optima® Clip-On Coping System

Material

Aluminium

Stainless steel (rigidized)

Weathered zinc

Zinc

Finish

Anodized

Post fabrication coating by quality assured applicators to BS 3987

Mill finish

Natural

Patterned

Polished

Polyester powder coated

Post fabrication coating by quality assured applicators to BS 6496

Precoated PVdf or polyester

Colour

Natural

For mill finish

Silver

White

Accessories

Column caps

Corner units

Junction tee sections

Oblique

Stop-ends

Wall abutments

As drawing ___

Product Options

Material/ thickness/ finish:

  • Aluminium: 2 and 3 mm; precoated PVdf or polyester.
  • Aluminium: 2 and 3 mm; polyester powder coated (PPC) to BS 6496.
  • Aluminium: 2 and 3 mm; anodized (25 micrometre minimum) to BS 3987.
  • Stainless steel: 1.2 and 1.5 mm; natural, polished or patterned finish.
  • Quartz zinc: 1.5 mm thick.

Colour:

Precoated PVDF is available from stock in white and silver. All coatings are available in a wide range of colours; please refer to Sotech for details.
