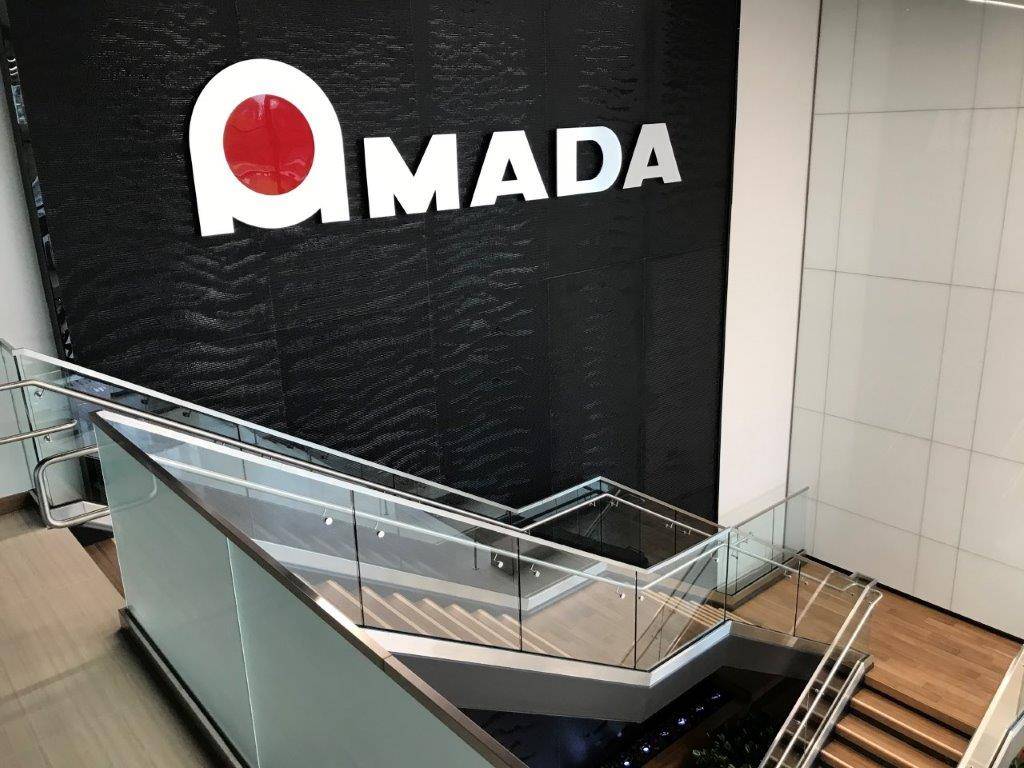

Optik SHOE™ Stainless Steel and Floating Glass Railing System

Verified by manufacturer 4 months ago

HDI Railing Systems

Pre-engineered, modular glass and stainless steel, post-free balustrade system suitable for interior and exterior applications.

Jump to:
+44 7383 436490 Website

Application

  • Single or multi-dwelling units.
  • Offices and industrial buildings.
  • Schools.
  • Health care.
  • Assisted living facilities.
  • Public buildings.

Description

Pre-engineered, modular glass and stainless steel, post-free balustrade system suitable for interior and exterior applications.


Features and benefits:

  • Hidden mechanical connections minimize on-site fabrication and provide security after installation.
  • Unobtrusive 'floating glass' appearance; steel fixtures designed to provide a minimalist style.
  • Geometrically coordinated mounting attachments.
  • Designed, engineered and manufactured in accordance with BS 6180, BS 6399 and BS 8300.
  • A stainless steel covered channel supports glass panels that are secured in place using a patented disc lock system, providing a clean, uninterrupted look.
  • Top rails, 38 or 51 mm diameter. in either brushed stainless steel or a selection of hardwoods that can be a natural finish or stained to match other interior wood finishes.
  • Bends or mitred joints are factory prepared to tight tolerances ensuring quality of fit and finish.
  • Manufactured from 1.4307 (304L) grade stainless steel for internal use. 1.4404 (316L) grade stainless steel is required for external use.
  • Environmentally friendly.
  • 25-year guarantee.
  • Optik SHOE™ handrails meet ADA requirements.

General information

Color

Bronze

Guidance for specification option:

Tinted.

Grey

Guidance for specification option:

Tinted.

Clear

Guidance for specification option:

Standard.

Other

Guidance for specification option:

Low iron.

Black

Show more

Finish

Satin

Guidance for specification option:

All stainless steel supplied in a brushed (240-grain) satin finish.

Manufacturer guidance

Powder Coated, 240 grit milled


Material

Stainless steel

Guidance for specification option:

  • 1.4307 (304) grade stainless steel.
  • 1.4404 (316L) grade stainless steel.
  • 1.4404 (316) grade stainless steel.

Timber

Guidance for specification option:

  • Beech.
  • Birch.
  • Maple.
  • Oak.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Guidance for specification option:

Guarantee.

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Newels

-

Accessories

Not required.

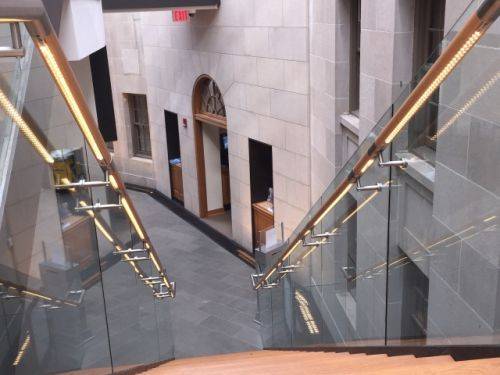

LED lighting inserts.

Guidance for specification option:

Consult manufacturer and insert requirements.

Infills

13 mm glass fully tempered.

13 mm glass laminated.

19 mm glass fully tempered.

19 mm glass laminated.

Bespoke.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Rails

-

Handrails

AISI 304 grade stainless steel - Standard.

AISI 316 grade stainless steel.

AISI 316L grade stainless steel.

Solid wood/Stainless steel.

Fixing to parent structure

Embedded.

Side mounted.

Surface mounted.

Total height

Guidance for specification option:

Insert requirement.

Layout

Guidance for specification option:

Insert details, drawing reference number or similar.

Loading requirement

0.36 kN/m.

0.74 kN/m.

1.5 kN/m.

3.0 kN/m.

Top rail

-

Manufacturer guidance

  • Diameter: 38 mm.
  • Tube wall: 2 mm-thick (stainless steel models only).
  • End style: Straight.

Supports:

  • Diameter: 13 mm.
  • Material: Stainless steel.
  • Fastening base: 38 mm rosettes.
