Opening Vent Only Rooflight - Electric or Manual - Vent

Name: Opening Vent Only Rooflight - Electric or Manual - Vent
Brand: Next Generation Rooflights
SKU: 59NVdsyxfM1LU9uyFP3opk

Verified by manufacturer 27 days ago

Next Generation Rooflights

An Opening Vent Rooflight. Electric or Manual. Electrical Large Sizes available and Smart Controls.

Jump to:

BOS

+44 (0)1223 792244 Website

Application

Suitable for:

All nominally flat roof constructions and coverings.
Green and sedum roofs.
Marine and coastal environments.

Description

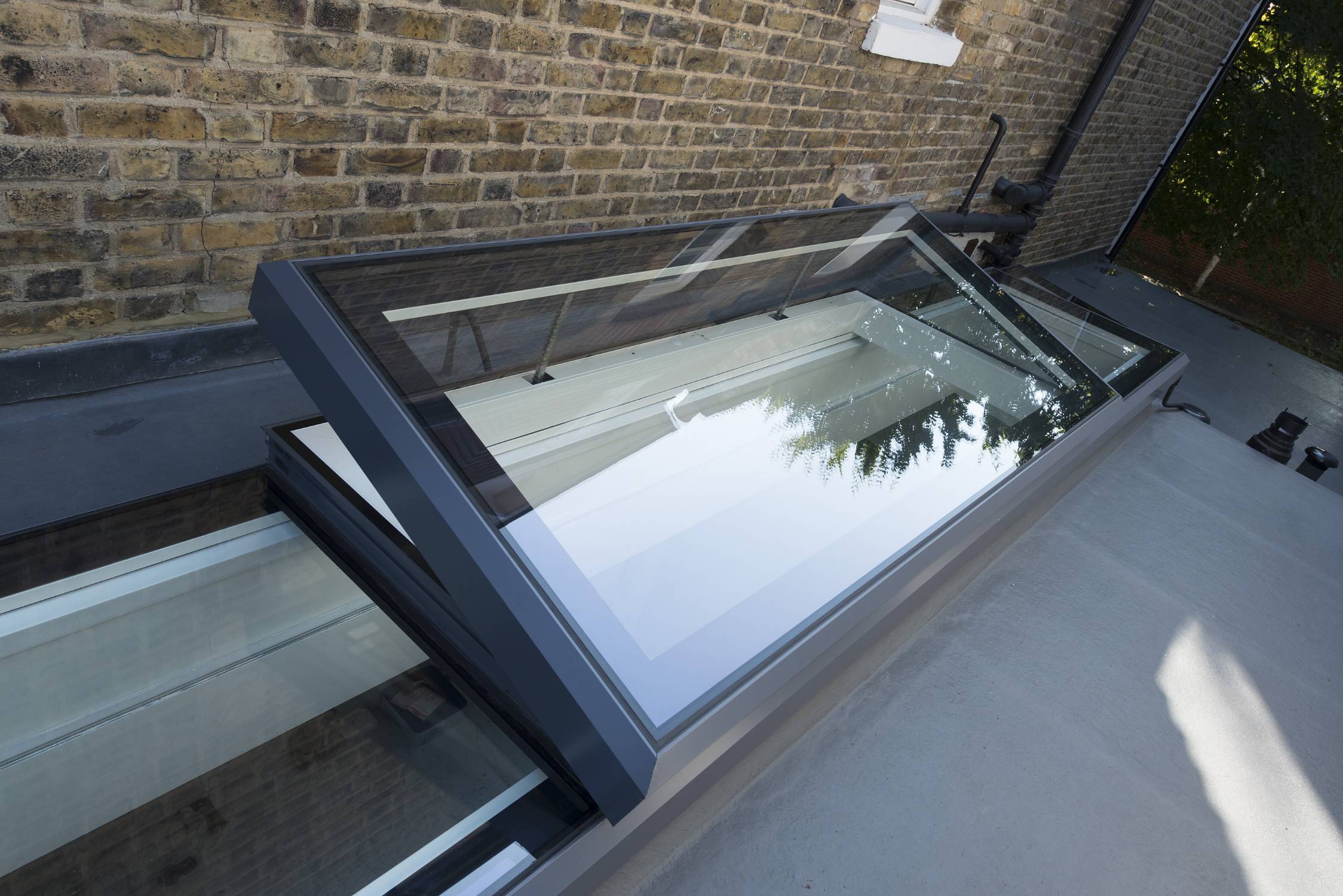

An opening vent rooflight, giving an extra point of access to roof space.

Features and benefits:

Fully thermally broken.
PAS24 Approved
Polyester powder coating to a minimum of 60 µm.
Stainless steel concealed fixings.
Tested in accordance with Centre for Window and Cladding Technology (CWCT) standard.
Upstand can be provided by the manufacturer, if required.
Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain and decorative options are available, please contact manufacturer for details.

General information

Color	White Grey Other Beige Black Blue Bronze Brown Cream Gold Green Ivory Orange Pink Purple Red Silver Turquoise Yellow Copper Show more Manufacturer guidance As per manufacturer and includes: Internal – RAL 9010 Mat. External – RAL 7015 Mat. Any RAL or BS colour can be specified. Anodised options.
Finish	Powder-coated Manufacturer guidance As per manufacturer and includes polyester powder coated.
Material	Aluminium Glass
Shape	Square Rectangle Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year Ten year

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

SKU Code	OVOR

Specification data - Framed rooflights

Classification data
Form	Square. Rectangular. Other. Manufacturer guidance Non-standard sizes and shapes are available on request; consult manufacturer for more information.
Size	- Manufacturer guidance Made to order; consult manufacturer for more details and insert requirements.
Frame	-
Material	Extruded aluminium. Guidance for specification option: 6063-T6.
Finish	-
Coating	Polyester powder coating.
Colour	Anodized. External RAL 7015 matt. Internal RAL 9010 matt. External RAL 7016 matt. External RAL 9005 matt. Grey. White. Other. Manufacturer guidance Any RAL or BS colour can be specified; consult manufacturer for more information.
Film thickness (minimum)	60 micrometres.
Glazing or infill	-
Type	Toughened and laminate glass. Guidance for specification option: 6 mm toughened outer. 8.8 mm laminate low-e inner. Non glazed fillings. Guidance for specification option: Insulated panels are available on request; consult manufacturer for more information. SGL. Manufacturer guidance Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain and decorative options are available; consult manufacturer for more information.
Accessories	Not required. Upstand. Guidance for specification option: To suit an overall finished upstand of 100 mm in width.
Thermal break	Required.
Fixings	Stainless steel. Manufacturer guidance Concealed fixings.
Wind resistance	2.0 kN/m².
Water resistance	1050 Pa. Guidance for specification option: Water and air resistance.
U-value	1.1 W/m²K. Manufacturer guidance Glass centre pane U-value.
Spacer	Warm edge spacer; 18 mm; 90% argon cavity.
Seals	Structural and weather seal – Low modulus silicone sealant. PVC coated – UV and water resistant.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aluminium Glass
Recyclability	Glass & aluminum widely recycled
Recycled content As defined in clause 7.8 of BS EN ISO 14021	75 %
