OP TS1503 SCL C Shower valve
Description

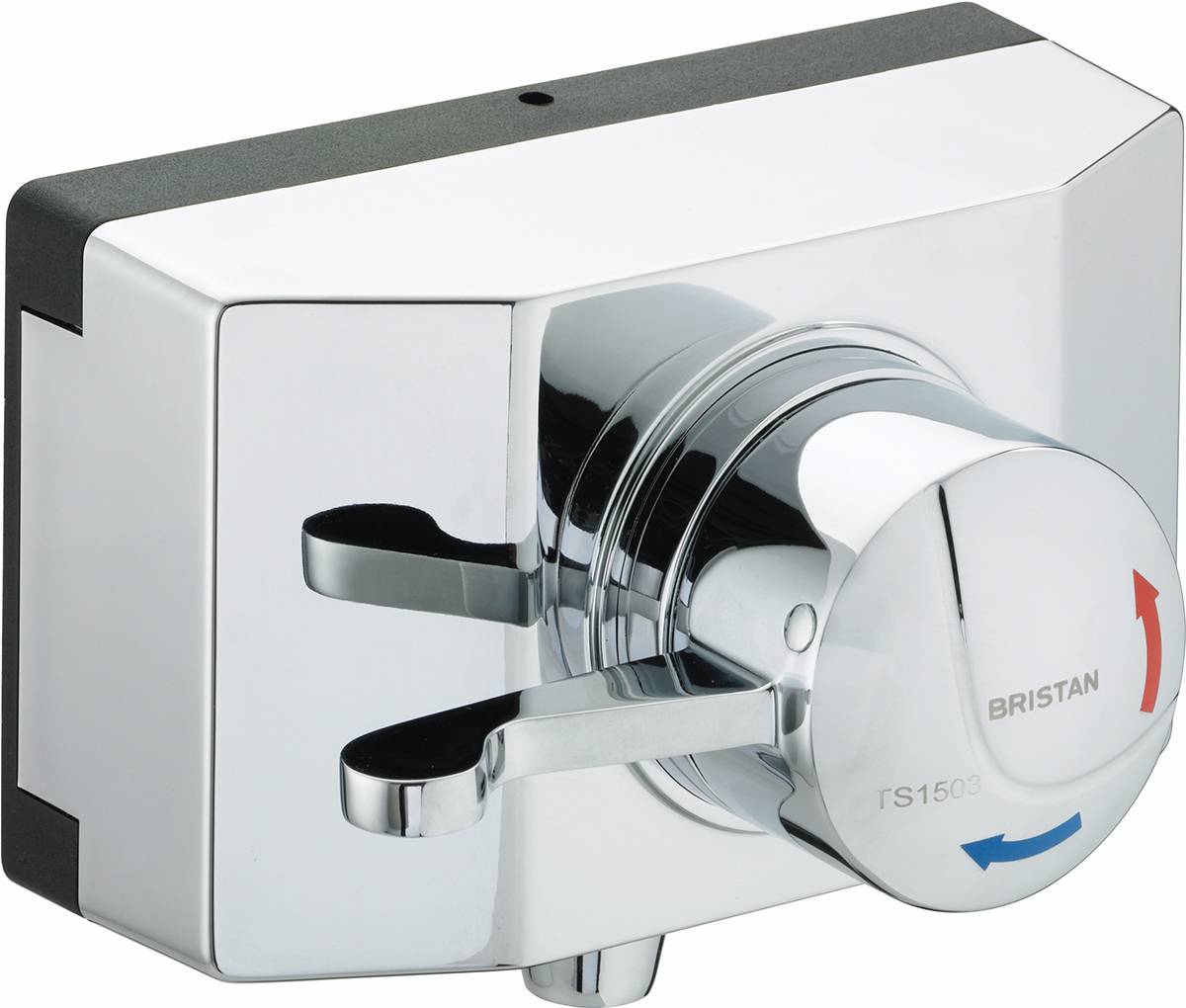

OPAC thermostatic exposed shower valve with chrome lever and isolation elbows.

Features

  • Single sequential control for both temperature and flow.
  • ABS protective shroud ensures safe surface temperature.
  • Automatic thermostatic shut-off in the event of hot or cold water failure.
  • Check valves and serviceable filters as standard.
  • Supplied as ‘valve only’ and thus can be customized by choosing accessories.
  • Adjustable inlet centres of 125–132 mm.
  • Chrome plated to BS EN 248.

Approvals:

WRAS certified.

General information

Color

Chrome

Finish

Chrome plated

Material

Brass

Size

15 mm compression elbows

WarrantyDescription

1 year

Uniclass 2015

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Specification data - Shower thermostatic water supply sets

Product Reference

OP TS1503 SCL C

Standard product features

Finish:

Chrome.

Guarantee:

One year covering manufacturing faults.

Technical characteristics:

  • Construction: Body is of brass construction and is designed to conform to BS EN 1111 and BS EN 1287.
  • Valve type: Thermostatic cartridge.
  • Supply: Suitable for all plumbing systems (preferably balanced).
  • Inlet connections: 15 mm compression elbows.
  • Outlet connections: ½” BSP.
  • Working pressures: Minimum 0.2 bar, maximum 8 bar.
  • Maximum static pressure: 10 bar.
  • Fitting: 125–132 mm inlet centres.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 1.3
Revit
Revit 2016 2 2.0
Download now from NBS National BIM Library
Literature
Third party certifications
  • WRAS certified: Certificate: 0712092
