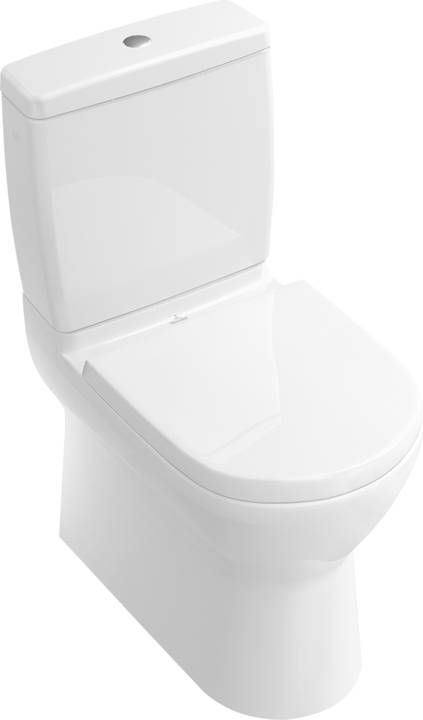

O.novo Washdown WC for Close-coupled WC-suite, Horizontal Outlet 565810

Verified by manufacturer 9 months ago

Villeroy & Boch AG

Washdown toilet for close-coupled WC-suite.

Jump to:
BOS
+49 (0) 6864 81 1500 Website

Application

Suitable for closed-couple WC suite.

Description

Washdown toilet for close-coupled WC-suite.


Features and benefits:

  • Sanitary ceramics.
  • Recommendation: to be installed from the wall at: 15 mm with fastening set for concealed fastening.
  • Complies with EN 997.
  • LEED 4.
  • European water label 3,375 L.
  • Water-saving AQUAREDUCT® system: flush volume 3/ 4.5 litres.
  • Horizontal outlet.
  • Vertical outlet possible with Vario drainbend.
  • Please order toilet seat separately, Please order cistern separately.

General information

Color

White

Material

Ceramic

Guidance for specification option:

Sanitary ceramics

Shape

Oval

Width

360 mm

Uniclass

Pr_40_20_93_97 WC suitesPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC suites

Standards

-

Cisterns

To BS EN 997.

Pans

To BS EN 997.

Form

Floor-standing, back to wall.

Materials

-

Body

Ceramic.

Guidance for specification option:

Sanitary ceramics.

Finish and colour

White.

Sizes

-

Cistern capacity

3/4.5 L dual flush.

Pan height

400 mm.

Integral accessories

Toilet seat and cover (9M4061).

Seat (9M7161).

Toilet seat and cover (9M38S1).

Cistern (5788R1).

Cistern (5788S1).

Weight

32.82 kg.

Width

360 mm.

Depth

640 mm.

Outlet

Horizontal.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
ARCHICAD
-

1

Revit
-

1

3Ds Max
-

1

OBJ
-

1

SketchUp
-

1

IFC
-

1
