O.novo Start Bath and Shower Mixers TVT105501110
Verified by manufacturer 8 months ago

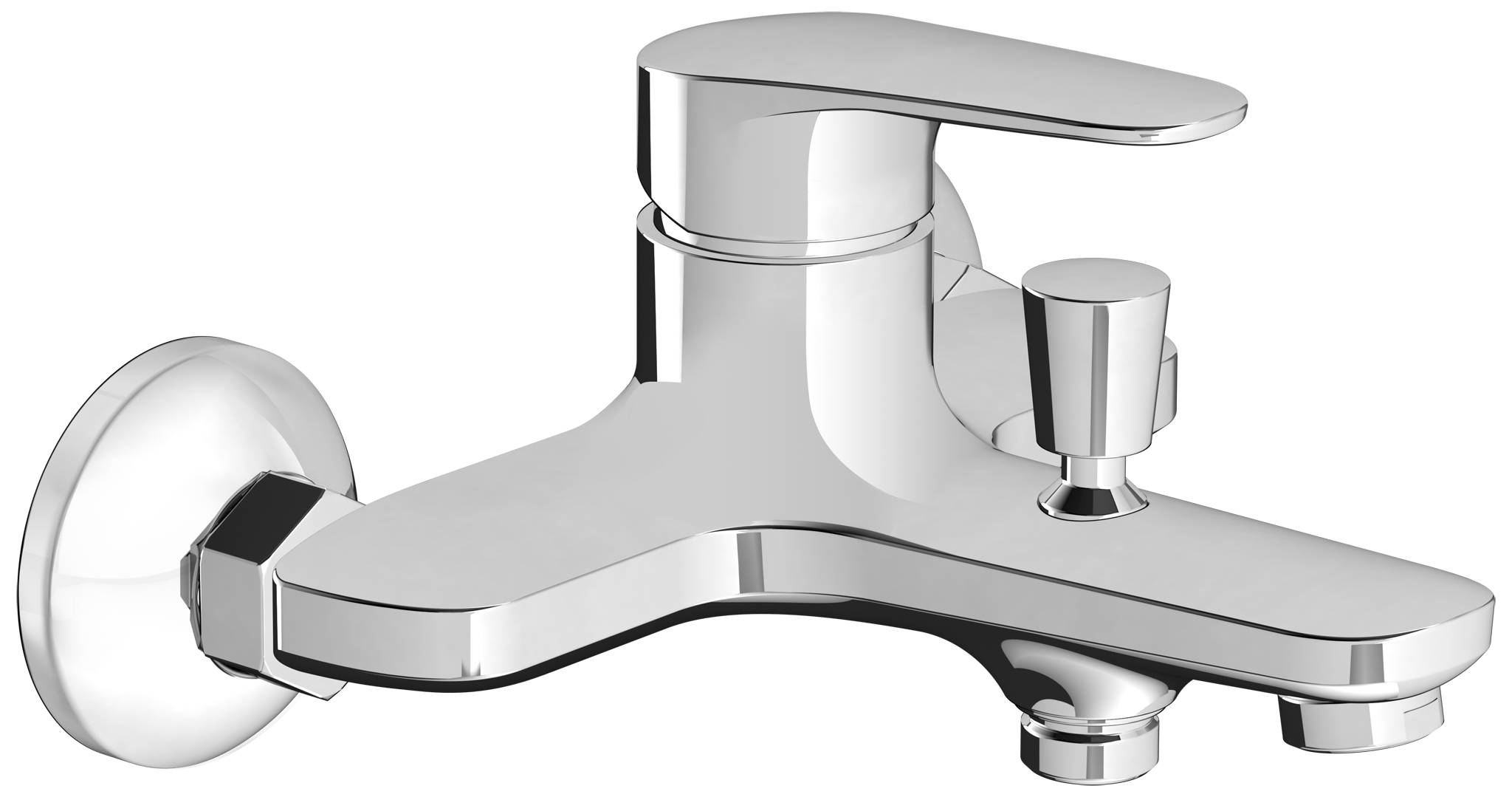

Bath and shower mixer
Application
Wall mounted.
Description
O.NOVO Start bath and shower mixers with automatic diverter.
Features and benefits:
- Chrome.
- S-Connection.
- Cartridge with ceramic discs Ø35 mm.
- Flow rate spout: 21.6 L/min.
- Optional accessories: TVS1086000161 - Shower set, TVS1086000261 - Shower set with three spray types, TVS1086000361 - Shower set with three spray types, TVS1089000161 - Shower set with three spray types.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Specification data - Bath mixer taps with shower hose and hand sprays
Form | Bath mixer tap with connection for shower hose. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 21.6 L/ min at 3 bar. |
Water supply temperature (maximum) | User-controlled. |
Integral accessories | TVS1086000161 - Shower set.Guidance for specification option: Optional extra. TVS1086000261 - Shower set with three spray types.Guidance for specification option: Optional extra. TVS1086000361 - Shower set with three spray types.Guidance for specification option: Optional extra. TVS1089000161 - Shower set with three spray types.Guidance for specification option: Optional extra. Manufacturer guidanceDelete as appropriate. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 3Ds Max | - | 1 |
 OBJ | - | 1 |
 IFC | - | 1 |
 SketchUp | - | 1 |
 ARCHICAD | - | 1 |
Literature
Exposed Bath and Shower Mixer Installation Manual
