On-Grid Inverter (1-phase) with PV - Energy System (Inverter with PV options)
Verified by manufacturer 23 days ago
EQIO-1P2.5
EQIO-1P2.5
A grid-connected low voltage single phase inverter and solar PV system. Inverter capacity: 2.5 / 3 / 3.68 / 4.2 / 5 / 6 / 7 / 8 kW. Panel capacity: 435 / 490 / 585 Wp.
Application
Sized for residential, small-scale uses, the low-voltage single phase series offers a wide range of system to fit the currently installed system requirements. The high-performance solar PV comes in different sizes, able to be tailored to roof or area size. Suitable for houses, apartments, terraced houses, individual flats, or small-scale ground-mounted system.
The inverters are suitable for outdoor applications. The PV modules come in different capacity and sizes, and can be optimally adjusted to achieve the highest performance in a specified site.
Description

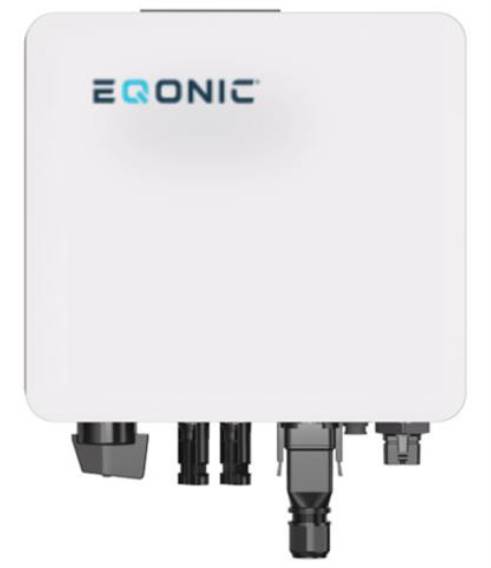

An on-grid inverter, tailored for residential solar PV systems. With 150–160% DC input oversizing and a wide MPPT voltage range, it maximizes energy harvesting from high-power modules, ensuring optimal performance. Equipped with a Smart I-V curve diagnosis function and intelligent fault detection, it accurately locates PV string faults and offers fast fault location, ensuring efficient troubleshooting. Plus, with support for RS485/WiFi/4G/DRM/Bluetooth/Ethernet, remote monitoring and operation via PC or mobile phones is made convenient. Its IP66 protection rating allows for outdoor installation, while built-in DC and AC Type II SPD provide comprehensive lightning protection. Optionally, it features an AFCI Function for immediate operation stoppage upon detecting an arc-fault, prioritizing safety.
Features and benefits (inverter):
- 150–160% DC input oversizing.
- Wide MPPT voltage range.
- Compatible with high-power modules.
- Smart I-V curve diagnosis function: locate PV string faults accurately and automatically detect faults.
- Intelligent fault detection: AC side voltage and current waveforms real-time recorded, fast fault location.
- Support RS485/WiFi/4G/DRM/Bluetooth/Ethernet: remote monitoring and operation via PC or mobile phones.
- IP66 protection degree: support outdoor installation.
- DC & AC Type II SPD: prevent lightning damage.
- AFCI function (optional): when an arc-fault is detected the inverter immediately stops operation.
General information
Color | White Guidance for specification option: Inverter. Black Guidance for specification option: PV modules. |
Material | Glass Guidance for specification option: PV modules. |
Shape | Rectangle |
Length | 130 mm Guidance for specification option: EQIO-1P2.5 to EQIO-1P3.68 inverters. 145 mm Guidance for specification option: EQIO-1P4.2 and EQIO-1P5 inverters. 160 mm Guidance for specification option: EQIO-1P7 and EQIO-1P8 inverters. 1722 mm Guidance for specification option: 435 W PV panel. 1903 mm Guidance for specification option: 490 W PV panel. Manufacturer guidanceInverters. |
Width | 270 mm Guidance for specification option: EQIO-1P2.5 to EQIO-1P5 inverters. 380 mm Guidance for specification option: EQIO-1P7 and EQIO-1P8 inverters. 1134 mm Guidance for specification option: PV panels. Manufacturer guidanceInverters. |
Height | 250 mm Guidance for specification option: EQIO-1P2.5 to EQIO-1P5 inverters. 380 mm Guidance for specification option: EQIO-1P7 and EQIO-1P8 inverters. 32 mm Guidance for specification option: PV panels. Manufacturer guidanceInverters. |
Warranty description | 12 year Guidance for specification option: 555 W PV panel: Material and technology warranty. 15 year Guidance for specification option: 485 W PV panel: Material and technology warranty. 25 year Guidance for specification option: 555 W PV panel: Linear power output warranty. 30 year Guidance for specification option: 485 W PV panel: Linear power output warranty. |
Uniclass | |
CAWS | V90/312 Photovoltaic systems |
Specification data - Inverters
Input | |
Voltage range | 80–600 V d.c.Guidance for specification option: Start voltage to maximum input voltage. |
Current (maximum) | 20 A (per MPPT). |
Output | |
Power rating | 2.5 kW. |
Nominal frequency | 50/60 Hz.Manufacturer guidanceRated grid frequency. |
Voltage harmonic distortion | <3%.Guidance for specification option: Rated power. |
Maximum power point tracker (MPPT) | Required. |
Topology | Transformerless. |
Enclosure | |
Ingress protection (minimum) | To BS EN 60529, IP 66. |
Interfaces | RS485/WiFi/4G. |
InputPower | 3.75 kW (maximum). |
Dimensions | 270 x 250 x 130 mm. Guidance for specification option: W x H x D |
Certification | IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN 50549, IEC 61727/ IEC 62116. |
Photovoltaics | Inverter maximum PV capacity: 3.75. |

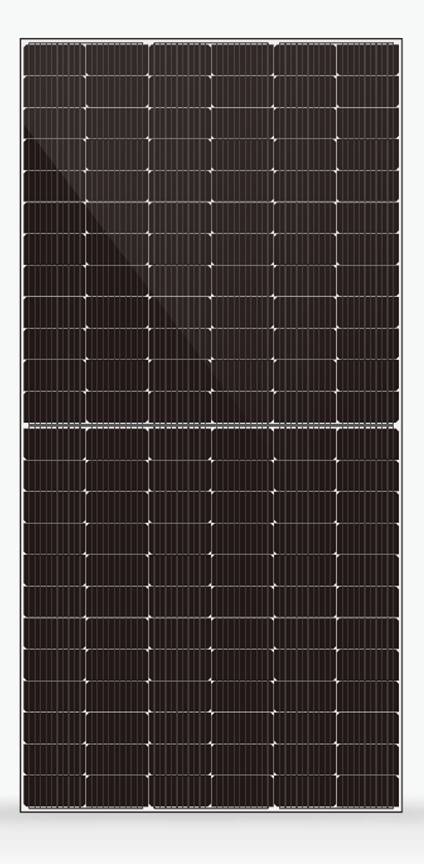

Photovoltaic panel | Eqonic photovoltaic modules, 435 W. Guidance for specification option:
Eqonic photovoltaic modules, 490 W. Guidance for specification option:
Eqonic photovoltaic modules, 585 W. Guidance for specification option:
Manufacturer guidanceSolar Panel 435/ 490/ 585 Wp:
Refer to data sheets for full technical specifications. |
Sustainability data
Material | Glass Guidance for specification option: PV modules. |
Expected Life | 15 year |
Literature
Single-Phase On-Grid Inverters Data Sheet
Solar Panel Datasheets 435 / 490 / 585 Wp
Solar Panel Selection Guidance
