OmniCare Repeater Unit
Verified by manufacturer 5 months ago
EVC repeater unit.
Application
For surface mounting. Used to allow cable lengths in excess of 200m between remote units.
Description
The EVC repeater unit - BVOCRIF - enables our DTAKIT disabled toilet alarm products to be added to an OmniCare system.
The BVOCRIF can act as a booster unit to enable cable runs exceeding 200m between remote units (outstations) and/ or control panels.
Repeater units are not seen as an ‘address’ on the control panel (unless connected to a disabled toilet alarm). An internal termination board includes loop through connector for testing site wiring.
Features and benefits:
- Self-powered from the ring circuit.
- This unit has two key functions.
- Connects the 3-part toilet alarm DTAKIT to the OmniCare system.
General information
Color | Grey |
Finish | Stainless steel |
Material | Metal Guidance for specification option: Zintec steel. |
Shape | Rectangle |
Width | 147 mm |
Height | 107 mm |
Warranty description | Seven year Guidance for specification option: Baldwin Boxall warrants all product manufactured by itself for a period of seven years from date of invoice. |
Uniclass | |
CAWS | V90/320 Distribution boards |
Specification data - Data distribution systems
Power | Self powered from the ring circuit. |
Mounting | Surface mounted. |
Material: | Zintec steel. |
Size: | 56 x 147 x 107 mm. |
Cable length | >200 m. Guidance for specification option: The BVOCRIF can act as a booster unit to enable cable runs exceeding 200 metres between remote units (outstations) and/or control panels. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Metal Guidance for specification option: Zintec steel. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

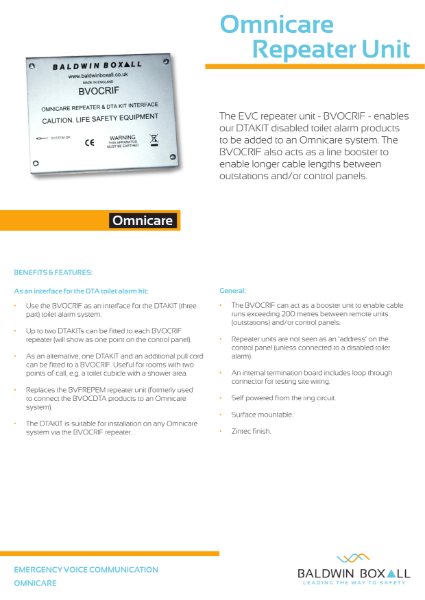

BVOCRIF repeater unit
