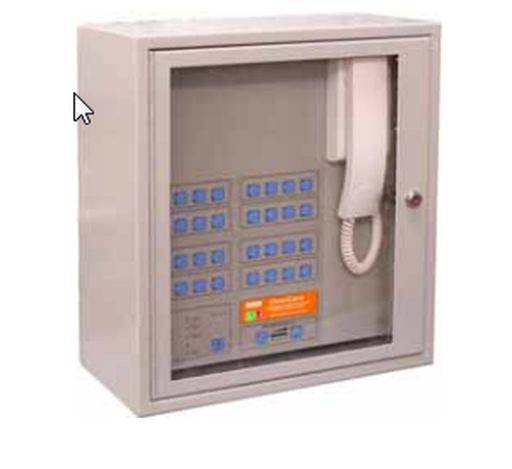

OmniCare 4-32 Way Control Panel
Verified by manufacturer 4 months ago
Satinless steel
Satinless steel
Control Panel for the OmniCare EVC system 4-32 way options. The object includes finish details and main product features.
Application
Suitable for surface or flush mounting.
Description
Control panel for the OmniCare EVC system.
The panel is cabled with the outstations in a loop configuration using 4-core enhanced fire rated cable. Multiple control panels can be included in the system enabling networking and local area control if required (There must always be one panel on the system large enough to control all outstations on the system).
Any combination of outstations can be connected on the loop circuit (toilet alarms to be connected via BVOCRIF units).
Features and benefits:
- Lockable glazed door.
- Up to 200 m distance is permitted between panels and outstations on the loop.
- Exceeding 200 m additional repeater units (BVOCRIF) will be required.
- Grey or stainless steel finish.
- Fully BS 5839-9 compliant.
General information
Color | Grey |
Finish | Powder-coated |
Material | Metal |
Width | 410 mm |
Height | 290 mm |
Warranty description | Seven year |
Uniclass |
Specification data - Fire alarm panels
Standard | To BS5839-9. |
Enclosure | |
Material | Stainless steel. |
Finish | Stainless steel. |
Colour | Self coloured. |
Mounting | Surface-mounted.Flush-mounted. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | IFC2X3 | 1 |
Literature

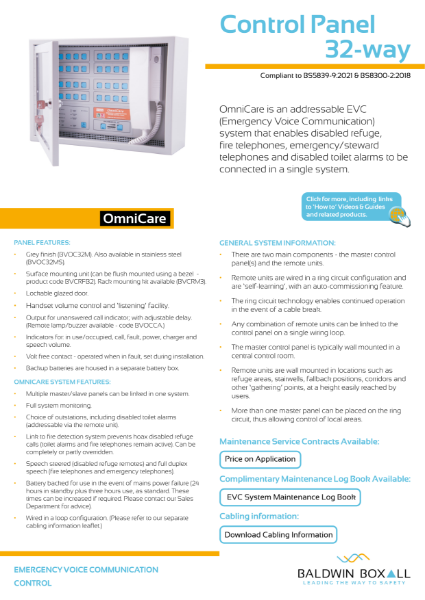

OmniCare control panel 32 way
