Ollerton M3 Post, Rail and Wire System
Description

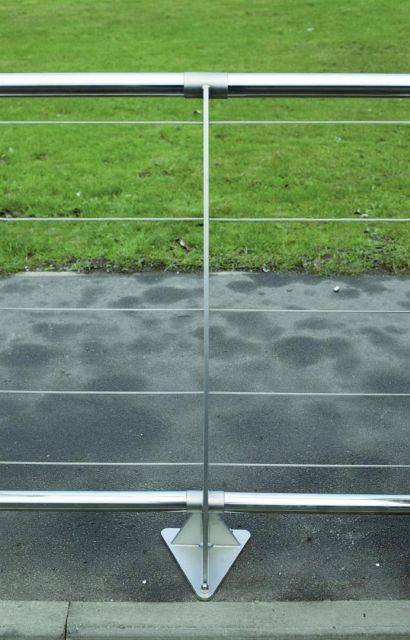

A stainless steel post, rail and wire system with flat, curved and tapered uprights.

Features:

  • Manufactured from 316 grade stainless steel.
  • Designed for on-site assembly (no special tools are required).
  • Where appropriately specified the system will meet the requirements of BS EN 1317/ BS: 7818.
  • Part of the Ollerton M3 range of street furniture.

General information
Features

Manufactured from 316 grade stainless steel

Designed for on-site assembly (no special tools are required)

Where appropriately specified the system will meet the requirements of BS EN 1317/ BS: 7818

Part of the Ollerton M3 range of street furniture

Uniclass 2015
Ss_25_15_60_17 Composite post and rail barrier systemsPrimary
CAWS

Q41/110 Pedestrian restraint systems in metal

Specification data - Composite post and rail barrier systems
Product Reference

Ollerton M3 Post, Rail and Wire System

Uprights -
Type

Curved

Flat

Tapered

Fixing

Baseplate

Ground fixed

Rails

Polished

Shotpeened

Standard product features

Height:

  • 1200 mm as standard.

Rails and wires:

  • Supplied with two rails and six, seven by seven configuration wires.
  • Cable is supplied in uncut lengths for site assembly.
  • Connectors are supplied in a swageless configuration for easy installation on site.

Product Options

Finish:

  • Posts: Matt shotpeened as standard.
  • Rails: Highly polished as standard. Shotpeened rails can be supplied to special order.

Fixing:

  • Base plate (standard): A positive bolting system should be selected by the installer based on the type and condition of the substrate, taking into account any applicable close edges and thicknesses. Baseplate is triangular-shaped with three fixing holes.
  • Ground (root) fixed (optional): The legs are designed to be situated directly into a C30, medium slump grade concrete mix.
