Ogee Board
Verified by manufacturer 3 months ago

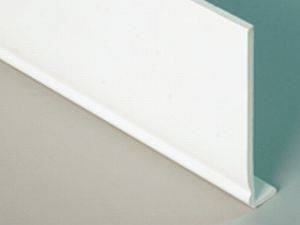

Eurocell Ogee Board 18 mm
Eurocell Ogee Board 18 mm
BBA Agrément Certificate
Certificate type
An 18 mm direct fixing fascia board.
Application
Direct fixing to roof rafters.
Description
An 18 mm direct fixing fascia board for direct fixing to roof rafters incorporating a groove or lip to accept a variety of solid and ventilated soffit boards.
Features and benefits:
- The range is available with various finishing trims and accessories.
- Ogee Boards are also available 9 mm thick for use as capping boards for fixing to new timber substrates.
General information
Shape | Rectangle |
Color | White |
Finish | Smooth |
Material | PVC-U |
Uniclass | |
CAWS | G20/950 Fascias/ barges/ soffits G20/99 Fascias/ barges/ soffits |
Specification data - Plastics weatherboards
Material | PVC-U. |
Profile | Square edge. |
Thickness | 18 mm. |
Surface texture | Smooth. |
Colour | White. |
NominalDepth | 150 mm. Guidance for specification option: 9 mm, 18 mm square edge. 175 mm. Guidance for specification option: 9 mm, 18 mm and 18 mm square edge. 200 mm. Guidance for specification option: 9 mm, 18 mm and 18 mm square edge. 225 mm. Guidance for specification option: 9 mm, 18 mm and 18 mm square edge. 250 mm. Guidance for specification option: 9 mm, 18 mm. |
Accessories | Utility Board. Guidance for specification option: Ref: UB 100 – 450. Double Ogee Corner Trim. Guidance for specification option: Ref: DOGCT. Double Ogee Joint Trim. Guidance for specification option: Ref: DOGJT. Double Ogee Capping Board. Guidance for specification option: Ref: DOCB350 and 450. Double Ogee 90° Internal Corner Trim. Guidance for specification option: Ref: DOGICT. |
Fixings | Fixing nails. Guidance for specification option: FN 50 and FN 65. |
Third party certifications

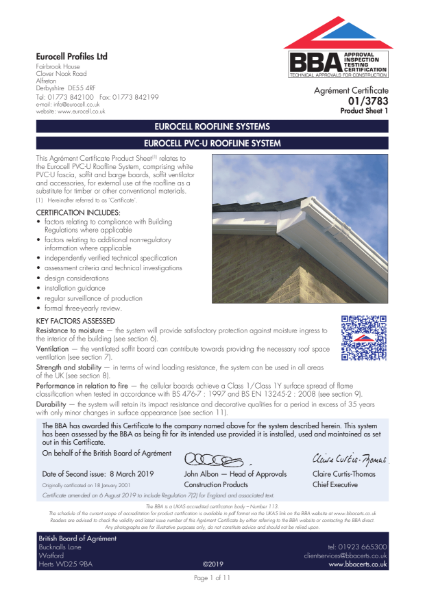

BBA Agrément Certificate
Roofline BBA Certificate 01/3783
