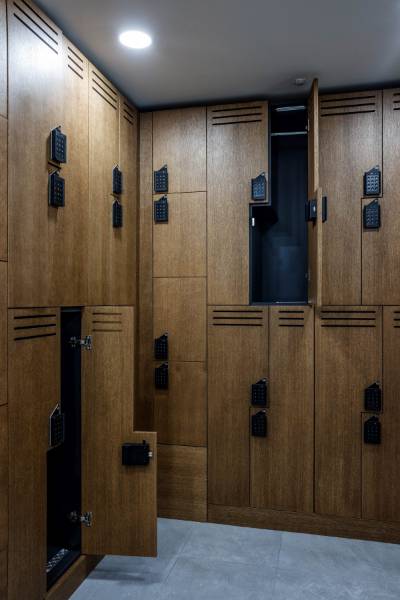

Octave Lockers - 1 Tier
Verified by manufacturer 3 months ago
Lockers.
Application
Suitable for sporting facilities, such as golf clubs and leisure centres.
Description
Features and benefits:
- Moisture resistant laminate carcasses.
- Real wood veneer doors.
General information
Finish | Veneered |
Material | Medium density fibreboard (MDF) Guidance for specification option: Moisture resistant. Manufacturer guidance18 mm moisture resistant MDF faced on all sides with real wood veneer factory applied with 2 part AC lacquer |
Size | Guidance for specification option: (standardized size, bespoke sizes also available on request). |
Length | 500 mm |
Width | 300 mm |
Height | 1800 mm |
Warranty description | One year Guidance for specification option: From practical completion |
Uniclass | |
CAWS | N10/220 Lockers |
Product range |
Specification data - Lockers
Locker type | Manufacturer guidanceDesigned for high specification facilities such as golf clubs and leisure centres. |
Material | Carcass: 19 mm melamine faced chipboard lipped in either 1 or 2 mm PVC with end and scribe panels in veneer to match the doors.Doors: 18 mm MR MDF faced on both sides with real wood veneer with inset number disc. |
Colour | Manufacturer guidanceTo be confirmed from WW standard range, subject to depth of partition. |
Fittings | Blum style hinges.Coin return locks.Card locks.Digital code locks.Cam Locks.Locker hasps. |
Product Reference | Octave Lockers - 1 Tier |
Type | OctHPLcoin. Guidance for specification option: Laminate locker with coin return lock. OctMFCcam. Guidance for specification option: Locker with standard cylinder lock. OctMFCcoin. Guidance for specification option: Locker with coin return lock. OctVcam. Guidance for specification option: Real wood veneer with standard cylinder lock. OctVcoin. Guidance for specification option: Real wood veneer with coin return lock. Manufacturer guidance- OctHPLcam and OctHPLcoin:
- OctMFCcam and OctMFCcoin:
- OctVcam and OctVcoin:
|
Edge treatment | Manufacturer's standard |
Shelves | 19 mm melamine faced chipboard lipped in either 1 or 2 mm PVC. |
Sustainability data
Country of material origin | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 2 |
 IFC | IFC2X3 | 2 |
Literature
Complete washroom solutions: cubicles, lockers, vanities and ducting
Case studies
7 Clarges Street
