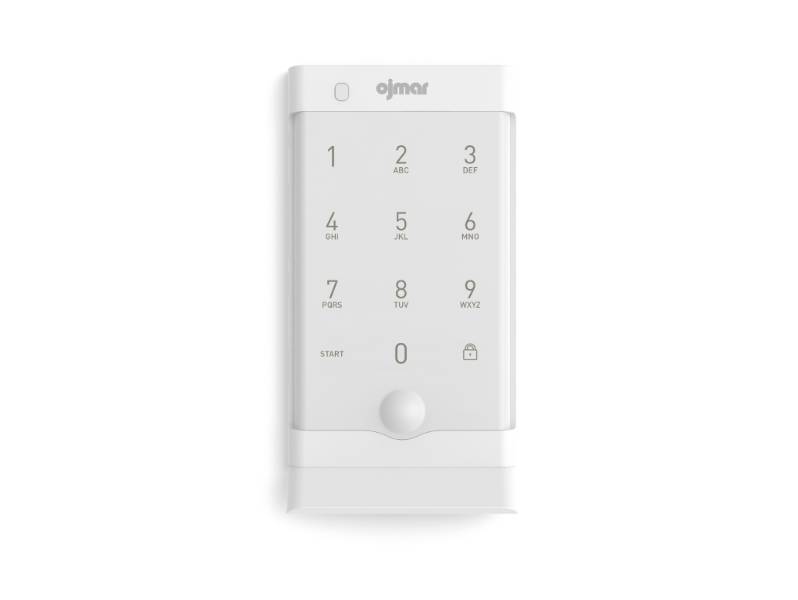

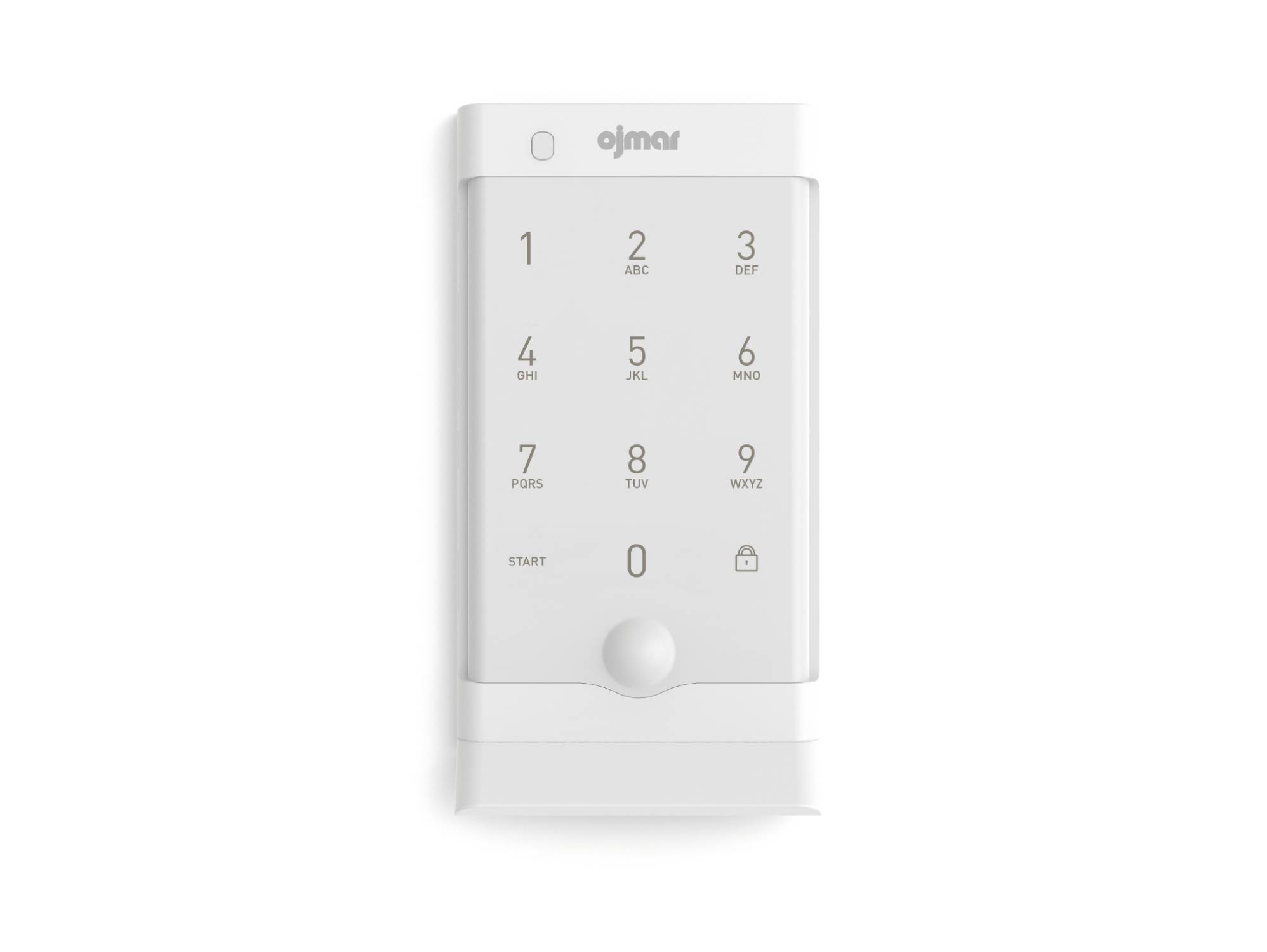

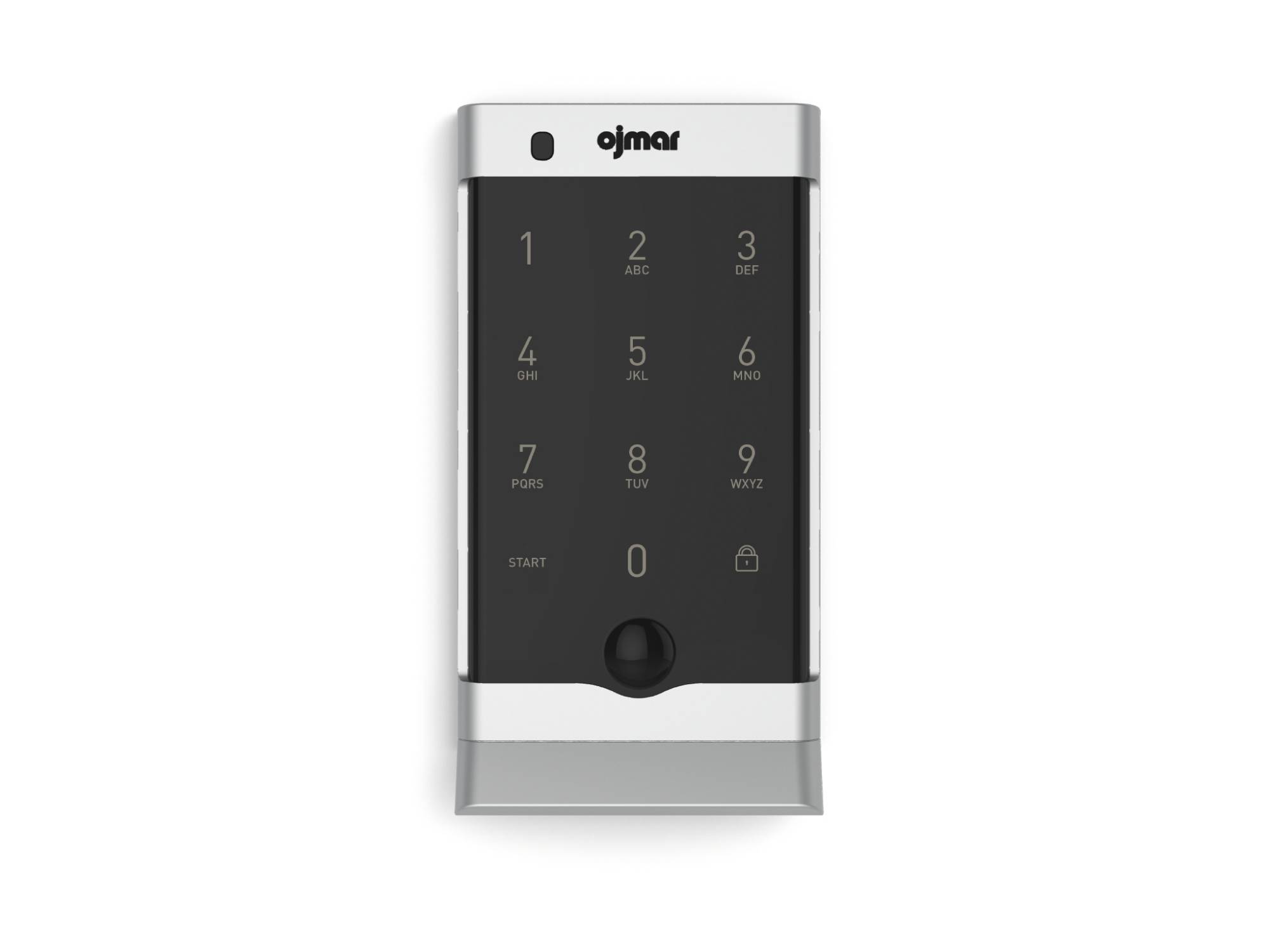

OCS®Pro: Digital Keypad Lock - Electronic locks
Verified by manufacturer 12 days ago
ISO/IEC 27001:2022 Information security, cybersecurity and privacy protection — Information security management systems — Requirements
Certificate type
ISO 9001 Quality Management
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
Combination lock with the latest generation touch technology.
Application
The OCS Pro is supplied non handed and can be installed as new or retrofit for previous OCS models or locks with similar fixing pattern.
Description
Combination lock with the latest generation touch technology.
Features and benefits:
- Touch keypad: more durable than traditional push button keypads.
- Extended battery life of up to five years.
- Lock can be switched between free or assigned mode.
- Easy programming.
- Easy to clean with hygienic, wipe clean keypad surface.
- External power override for emergency opening.
- High level resistance to water and dust.
General information
Color | Grey Guidance for specification option: Graphite. Silver White |
Shape | Rectangle |
Length | 120 mm |
Width | 84 mm |
Height | 35.3 mm |
Warranty description | Two year |
Uniclass | |
CAWS | W90/363 Access control units W90/130 Electronic access control system |
Specification data - Access control digital keypads – stand-alone
Colour | Graphite.Silver.White. |
Keypad arrangement | Standard profile with three columns of four keys. |
User codes | Four-digit length.Five-digit length.Six-digit length. |
Mounting position | Surface. |
Product Reference | OCS Pro touch key pad lock |
TemperatureRange | - 10 Cº to +42 Cº. |
Ingress protection | IP56. |
Sustainability data
Country of material origin | Spain |
Country of product manufacture | Spain |
Third party certifications
Third party certifications
ISO/IEC 27001:2022 Information security, cybersecurity and privacy protection — Information security management systems — Requirements
ISO/IEC 27001:2022
ISO 9001 Quality Management
ISO 9001:2015
ISO 14001 Environmental Management Systems
ISO 14001:2015
Literature
OCS Pro Catalogue
Assembly Instructions OCS®PRO
OCS®PRO User Instructions
