Oasis Glass Washroom Cubicle
Verified by manufacturer 10 months ago

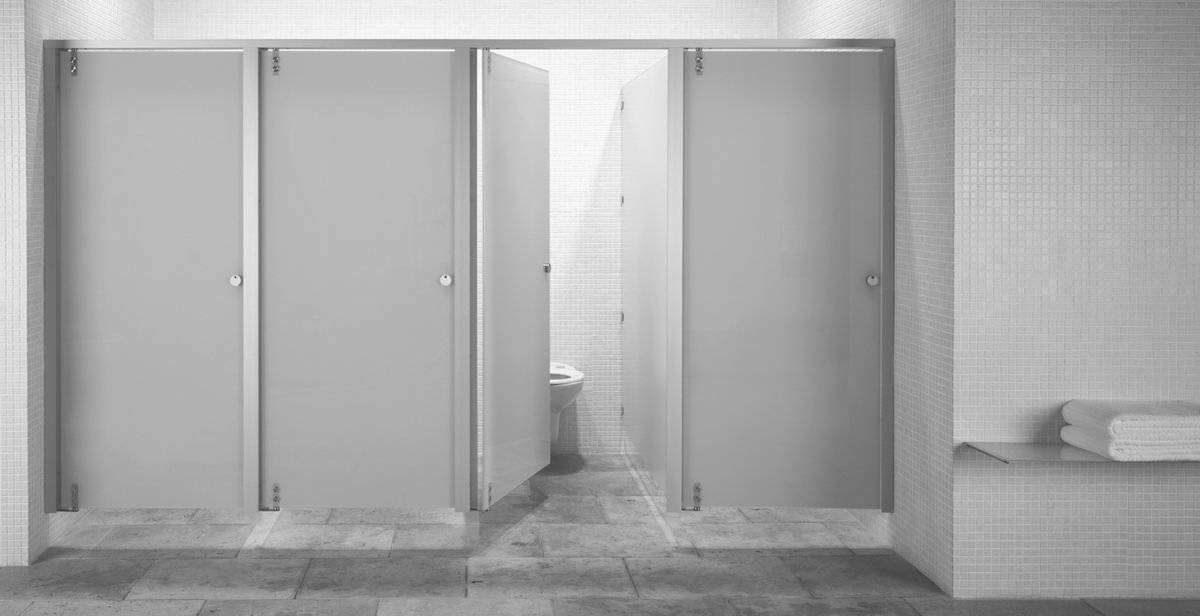

A range of glass toilet or shower cubicle systems suspended from the headrail, which hides the unique hydraulic door-closer, creating a 'floating cubicle'.
Application
- High-quality offices.
- Hotels.
- Leisure areas/ clubs.
- Theatres.
Description
Overall toilet or shower cubicle height of up to 2000 mm with 150 mm floor clearance, supplied with a ten-year warranty.
Pivoted doors are suspended from the headrail, which hides the unique hydraulic door-closer.
Features and benefits:
- Full aluminium frame.
- Door suspended from headrail.
- Concealed hydraulic door closer, tested to 1.5 tonnes.
- Stainless steel fittings.
- Spring-loaded polished stainless steel lock.
- Machined stainless steel receiver.
- 10 mm ceramic-baked toughened glass.
- Emergency release.
General information
Color | Silver Clear Beige Black Blue |
Finish | Gloss |
Material | Glass |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/112 Fully framed panel cubicles |
Specification data - Fully-framed panel cubicle systems
Panel supports | Full anodized aluminium frame using aluminium alloy 6063T6, with a 5 micron anodized finish and 60% recycled content, comprising extruded headrail and vertical posts. Precision-engineered stainless steel lock, hand-turned in UK; locates into integral receiver within vertical closing post, incorporating full-length buffer. |
Doors | Glass polished to all edges. Countersunk stainless steel pig-nose fixings to the face of the door allow attachment to stainless steel pivot blocks. Door suspended from a structural aluminium headrail and located onto floor-fixed pivot bracket; falls closed by means of a hydraulic closer designed specifically for the purpose, concealed within the aluminium headrail (alternatively, the closer can be factory-set to fall open). |
Hardware | Precision-engineered 1.4305 (303 grade) brushed stainless steel lock, hand-turned in UK, and able to be opened using a closed fist, fixed through the door to the faceplate for added strength. Incorporating a machined stainless steel bar, with a sacrificial hard nylon shear tip which locates into the receiver within the vertical closing post. Complete with emergency release facility and buffer. Divider fixed to back wall using visible brackets, secured by through-fixings. Stainless steel coat hook supplied as standard.Manufacturer guidanceComponents tested over a cycle of 200 000 operations, equating to a ten-year period in a medium-use washroom. |
System accessories | Divider: Glass polished to all edges.Guidance for specification option: Suspended 150 mm off the floor. |
Size: | Manufacturer guidanceHeight up to 2000 mm with 150 mm floor clearance. |
Finish: | 10 mm back-painted toughened glass. 10.76 mm toughened laminated glass. |
Fascia | Not required. Required. Manufacturer guidanceGlass polished to all edges. |
Glazing | Clear. Low-iron. Manufacturer guidanceObscurity: Supplied at set levels of obscurity; consult manufacturer and insert requirements. |
Colour: | Manufacturer guidanceConsult manufacturer's standard range and insert colour. |
Product Reference | Oasis Glass |
