NyRock® Frame Slab 032 - Insulation

Verified by manufacturer 4 months ago

Timber frame application, 90 mm thick

ROCKWOOL Ltd Variant:

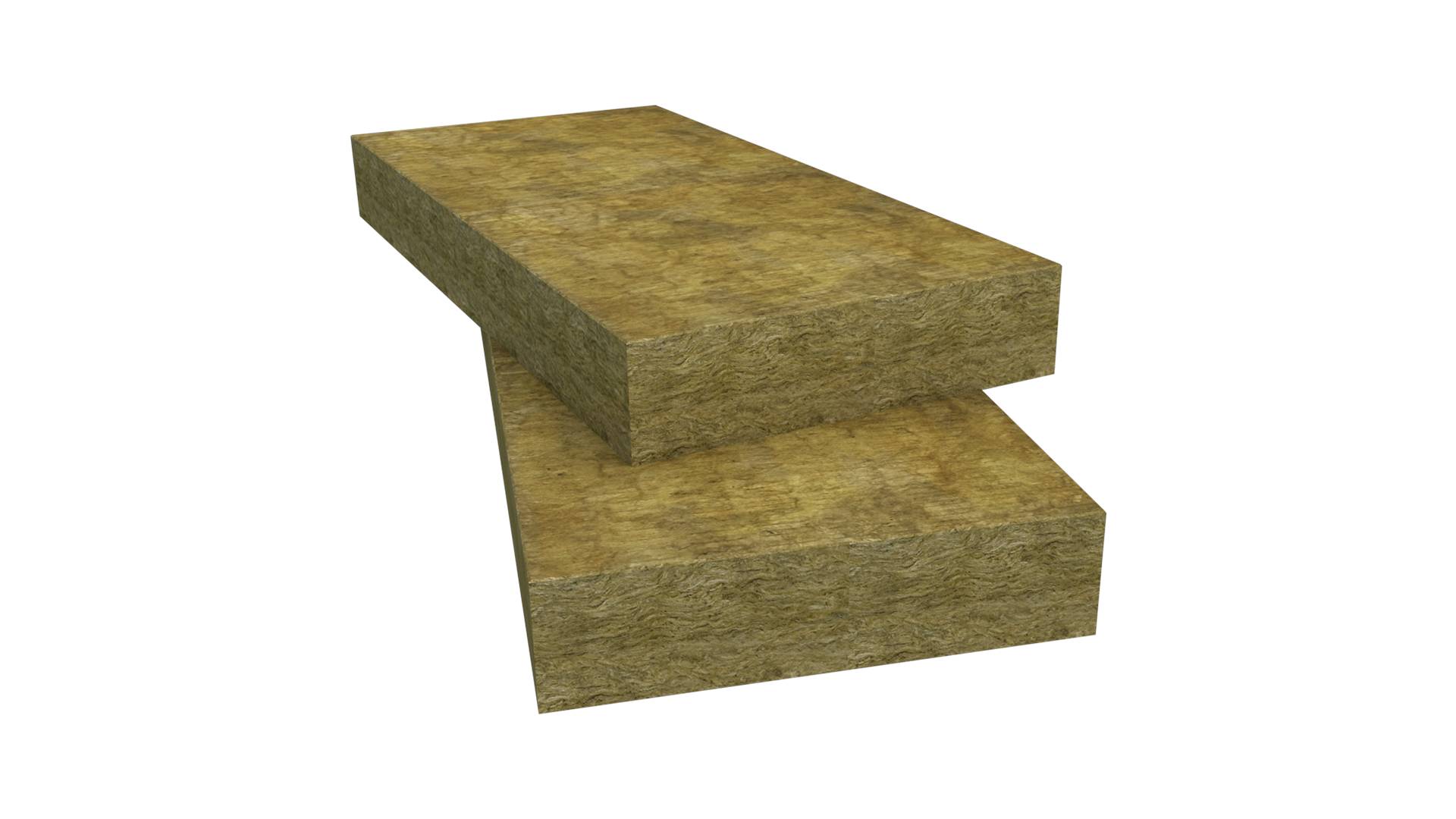

A semi-rigid stone wool insulation slab.

Jump to:
BOS
+44 (0)1656 862621 Website

Application

Designed specifically for quick and easy installation into the standard size 600 mm studs of external timber or steel frame walls. This means the insulation takes less time to install, is a more reliable and long lasting fit, and that the performance does not diminish over the lifetime of the building.

Description

NyRock® Frame Slab is a semi-rigid stone wool insulation slab designed specifically for use between the studwork of external timber or light gauge steel frame walls.


Features and benefits:

  • Low thermal conductivity of 0.032 W/m·K.
  • NyRock Frame Slab 032 is able to resist temperatures of over 1000ºC achieving the highest Euroclass A1 non-combustibility classification as defined in EN 13501-1.
  • The dimensional stability means the slabs will not slump or sag after installation.
  • The slabs come in 570 mm (timber) or 600 mm (steel) widths allowing for quick and easy installation into frame walls.
  • Rockwool stone wool repels liquid water due to its fibre orientation and a water repellent additive.

General information

Color

Yellow

Finish

Natural

Material

Stonewool

Shape

Rectangle

Length

1200 mm

Width

600 mm

Guidance for specification option:

For use in steel frames.

570 mm

Guidance for specification option:

For use in timber frames.

Height

150 mm

140 mm

120 mm

100 mm

90 mm

Warranty description

-

Manufacturer guidance

ROCKWOOL insulation has been proven in service for over 55 years in a wide range of climates and exposures. ROCKWOOL insulation will generally perform effectively throughout the lifetime of the host structure, associated attachments or fittings.

Uniclass

Pr_25_57_06_56 Mineral wool slab insulationPrimary

CAWS

P10/190 Insulation fitted between studs

P10/15 Insulation fitted between rafters

P10/40 Insulation fitted betweenor to the face ofstuds

H92/776 Thermal insulation

K10/145 Wall lining system (metal studs)

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

P10/140 Insulation fitted between rafters

K10/30 Metal stud

H11/110 Curtain walling

H11/780 Thermal insulation

P10/42 Mineral wool insulation slabs fixed to backing wall

K10/35 Wall lining system (metal framing)

Specification data - Mineral wool slab insulation

Standard

To BS EN 13162:2012+A1:2015.

Thickness

90 mm.

Edges

Square.

Density

Manufacturer's standard.

Thermal conductivity (maximum)

To BS EN 13162:2012 + A1:2015, 0.032 W/m·K.

Compressive strength (minimum)

Manufacturer's standard.

Fire performance

To BS EN 13501-1, A1.

Sound insulation rating

Manufacturer's standard.

Guidance for specification option:

  • The non-directional fibre orientation and density of stone wool means that sound waves are trapped, and vibrations dampened which can significantly reduce outside sources of noise when used in an external wall.
  • When used within an external wall consisting of a rainscreen facade, in combination with NyRock Rainscreen 032, NyRock Frame 032 can deliver result as high as Rw 60 dB in a typical wall system.

Moisture vapour resistance

5.9 MNs/gm.

Thermal resistance

2.81 m²K/W.

Width

570 mm.

Guidance for specification option:

Area per pack: 2.74 m².

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Yes

Manufacturer guidance

ROCKWOOL stone wool insulation is recyclable and can be transformed into new ROCKWOOL products. Please contact us for details of how we can work together to recycle waste ROCKWOOL stone wool material that may be generated during on-site installation.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Guidance for specification option:

20—26%.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
