Nylofor® F
Application

Suitable for use in professional fencing of public buildings, factories and workshops, schools, parks, playgrounds and sports stadia, airports and military sites.

Description

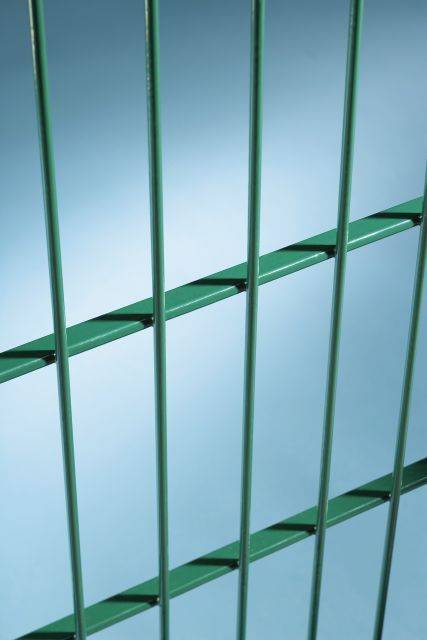

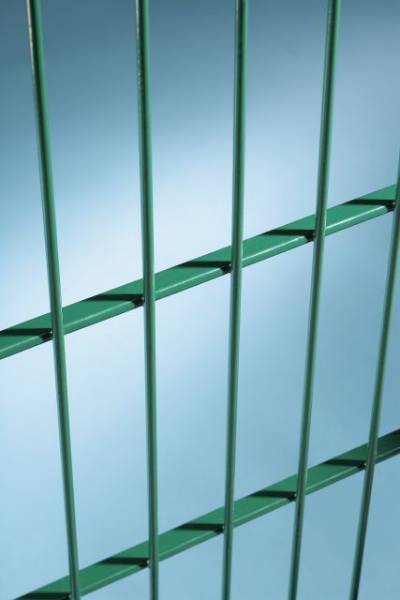

Nylofor® F is a complete system consisting of rectangular heavy welded mesh fence panels, with high levels of rigidity.


Features and benefits:

  • High rigidity: Provided by the 15 x 6 mm horizontal flat wires to the panels.
  • Long lifetime: The quality of the coating is very high. After being galvanized, the products are protected by a polyester coating with perfect adhesion.
  • Quick installation: The fixing system of Nylofor® F guarantees a quick and professional installation.
  • Available as a complete system: It consists of panels in various heights, square posts with a specific fixing system and a wide assortment of innovative swing and sliding gates.


General information

Color

Green

RAL 6005 (Moss green).

Grey

RAL 7016 (Anthracite grey).

White

RAL 9010 (Pure white).

Black

AL 9005 (Jet black).

Finish

Galvanized

Polyester powder coated

Material

Metal

Size

Width: 2500 mm Height: 630, 830, 1030, 1230, 1430, 1630, 1830, 2030, 2230, 2430, 3060, 4060, 5090, 6090, 7120, 8120 mm (other dimensions available on request).

-

WarrantyDescription

Ten years

Standard 10 years guarantee.

Uniclass 2015

Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel fencing

Q40/30 Proprietary fencing

Specification data - Metal mesh panel fencing systems Enhanced data

Posts

Steel posts.

Bekafix 70 x 44 mm, Bekafix Ultra 100 x 54 or Lox Post.

Rails

Steel fencing and barrier rails.

Panels

Stainless steel welded mesh panels.

Mesh - 200 x 50 mm, with heavy 15 x 6 mm horizontal flat wires to provide high rigidity to the panels. The panels also have vertical barbs of 30 mm on the top/ bottom of the panel (panels are reversible).

Fence topping

Barbed top edge.

30 mm.

System accessories

None.

Single swing gates.

Double swing gates.

R2000 - Cantilever sliding gates.

R2800 - Cantilever sliding gates.

Sliding gates on rail.

Product Reference

Nylofor® F

Panel size

630 x 2500 mm.

830 x 2500 mm.

1030 x 2500 mm.

1230 x 2500 mm.

1430 x 2500 mm.

Show more

Colour

Green.

RAL 6005 (Moss green).

Grey.

RAL 7016 (Anthracite grey).

White.

RAL 9010 (Pure white).

Black.

RAL 9005 (Jet black).

Other.

All other RAL colours on request.

Type

Bekafix.

70 x 44 mm.

Bekafix Ultra.

100 x 54 mm.

Lox Post.
