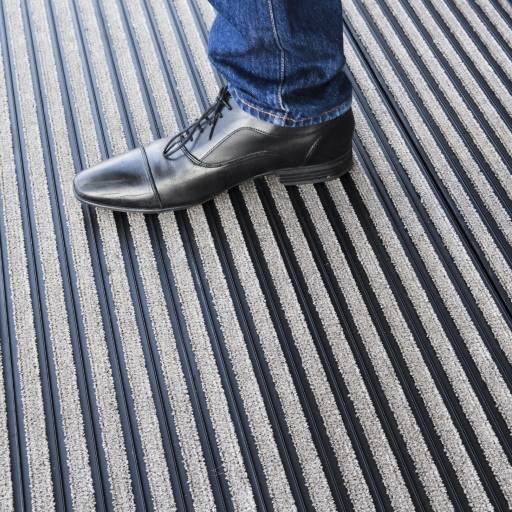

Nuway Tuftiguard Single Closed - Entrance mat
Verified by manufacturer 5 months ago
Tuftiguard Classic
Tuftiguard Classic
Certificate of Conformity
Certificate type
Nuway Tuftiguard Entrance System has the durability, strength and structural integrity to deliver excellent performance and appearance retention in very heavy traffic locations.
Application
Nuway Tuftiguard has the durability, strength and structural integrity to deliver excellent performance and appearance retention in intense-traffic locations, and where high levels of soil have to be removed from the soles of shoes and wheel treads.
Description
Customizable, double-sided entrance matting, available with single or double wiper strips.
Features and benefits:
- Matting placed outside will defend against soil and the coarsest of foot-borne dirt.
- Matting placed inside will defend against foot-borne moisture and finer dirt particles.
- Nuway Tuftiguard can be customized with names, logos and corporate messages.
- Available with single or double wiper strips for increased moisture removal.
- Available in open or closed format.
- Nuway Tuftiguard is available in Bamboo: a sustainable species of grass that also prevents strobing in bright entrances.
- Nuway Tuftiguard can be reversible, effectively doubling its life.
- There is a wide choice of wiper strips and scraper bars, which allow Tuftiguard mats to coordinate with all interior finishes.
General information
Color | Grey Black |
Finish | Grooved |
Shape | Square |
Length | Bespoke |
Width | Bespoke |
Height | 12 mm |
Warranty description | Ten year Guidance for specification option: Ten-year guarantee (Fifteen-year guarantee if installed by a FESSI, Forbo Entrance System Specialist Installer). |
Uniclass | |
CAWS | N10/300 Entrance matting |
Product range |
Specification data - Entrance mats
Arrangement | Inset external.Inset internal.Loose lay external.Loose lay internal. |
Dimensions | Made to order. |
Material | Non Reflective Aluminium.Bronze Anodised Aluminium.Black Anodised Aluminium.Gold Anodised Aluminium.Bamboo.Sand Anodised Aluminium.Manufacturer guidanceScraper bar options. |
Colour | Buffed.Manufacturer guidanceWiper bar option. |
Integral accessories | Not required.Aluminium matwell frame. |
Thickness | 12 mm. 17 mm. |
Pile | 100% Polyamide BCF. |
Number of wiper strips | Single. |
Maximum width per module | 2500 mm. |
Type | Single closed. |
Dynamic load (kg) 2 wheels, 80mm, 20,000 passes | 12 mm Aluminium = 200 kg. 12 mm Bamboo = 100 kg. 17 mm aluminium = 200 kg. 17 mm bamboo = 200 kg. |
Maximum static load (Kg/ cm2) | 12 mm aluminium = 200 kg. 12 mm bamboo = 100 kg. 17 mm aluminium = 200 kg. 17 mm bamboo = 200 kg. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 1 |
Third party certifications
Certificate of Conformity
SA8000 Management System Certification Certificate
