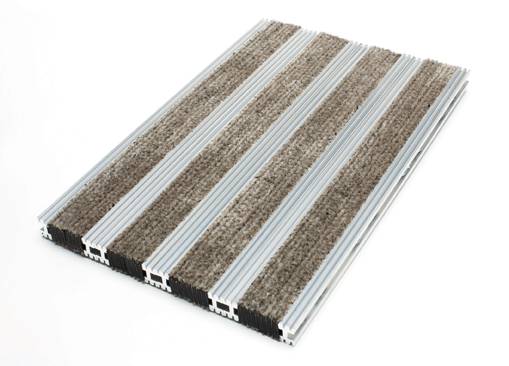

Nuway Tuftiguard HD System - Entrance mat
Verified by manufacturer 6 months ago
Tuftiguard Classic HD
Tuftiguard Classic HD
Certificate of Conformity
Certificate type
With its patented aluminium scraper bars Nuway Tuftiguard HD is the strongest type of matting in the Nuway range and is ideal for entrances with heavy duty loads and intense pedestrian traffic.
Application
Suitable for all internal and external entrance areas, where heavy-duty loads and intense pedestrian and/ or wheeled traffic are to be catered for.
Description
Double-sided, double wiper stripped entrance matting, capable of coping with intense foot traffic and heavy-duty loads.
Features and benefits:
- Matting placed outside will defend against soil and the coarsest of foot-borne dirt.
- Matting placed inside will defend against foot-borne moisture and finer dirt particles.
- Can be customized with names, logos and corporate messages.
- Strong enough to cope with high point loads of up to 900 kg/cm2.
- Double wiper strips for increased moisture removal.
- Choice of four colours in the HD Design collection to reflect interior colour schemes.
General information
Color | Black Blue Brown Green Grey |
Finish | Grooved |
Material | Aluminium Rubber |
Shape | Manufacturer guidanceMade to order or shaped onsite. |
Length | Bespoke |
Width | Bespoke |
Warranty description | Ten year Manufacturer guidance(Fifteen-year guarantee if installed by a FESSI, Forbo Entrance System Specialist Installer) |
Uniclass | |
CAWS | N10/310 Loose-laid matting N10/300 Entrance matting |
Product range |
Specification data - Loose-laid matting
Material | Scrapper: Non-reflective aluminium. Wiper: Rubber. Pile: 100% Polyamide BCF. |
Size | Manufacturer guidanceBespoke. |
Colour | HD Classic: Grey.HD Design: CL Charcoal.HD Design: OC Ocean.HD Design: SC Scarlet.Guidance for specification option: Recessed aluminium. HD Design: WL Willow.HD Plain: Plain/ unbuffed. |
Thickness | 12 mm. 17 mm. |
Construction | Closed. |
Number of wiper strips | Double. |
Integral accessories | Not required. Aluminium matwell frame. |
Maximum width per module | 2500 mm. |
Maximum static load (Kg/ cm2) | 900 kg. |
Dynamic load (kg) 2 wheels, 80mm, 20,000 passes | 350 kg. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Rubber |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 1 |
Third party certifications
Certificate of Conformity

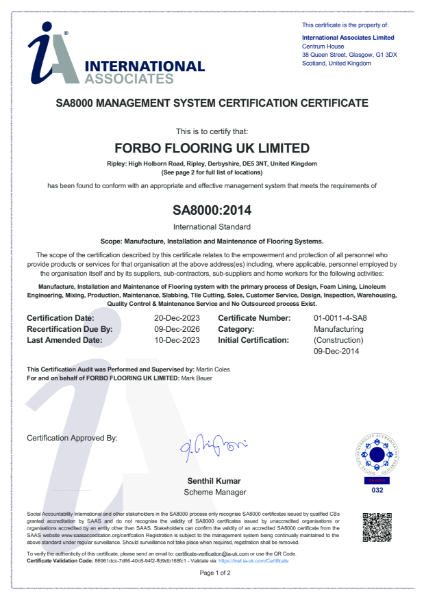

SA8000 Management System Certification Certificate
Literature
Forbo Product Portfolio 2022
