NSLR50 Vision Nosing Lights Out - Stair nosing
Verified by manufacturer 29 days ago
Illuminated stair nosings.
Application
Stair nosing.
Description

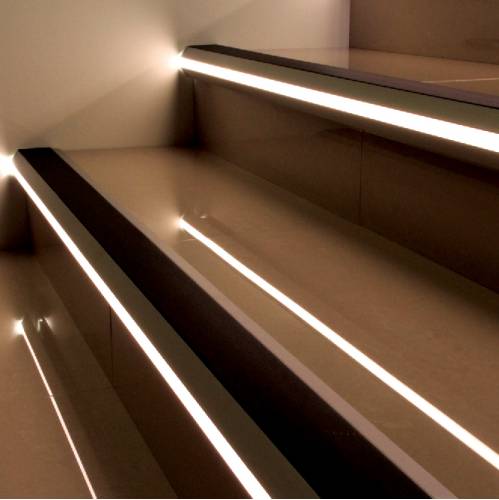

Commercial style stair nosing incorporating a range of non-slip PVC based inserts and Vision LED, CCT and RGB lighting systems in a ‘light out’ configuration.
Features and benefits:
- Rated IPX4 under IEC standard 60529 - Protects from splashing water, no matter the direction.
- Supplied in anodized (81) Matt Silver finish as standard, other finishes are available on request.
- Standard length is 2.8 m but a bespoke cutting and drilling service is also available.
- Comes complete with frosted polycarbonate diffuser to ensure optimum light dispersion.
General information
Color | White Black Brown Beige Red |
Finish | Anti-slip Matt |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | 2800 mm |
Width | 77.5 mm |
Height | 48.5 mm |
Uniclass | |
CAWS | M51/550 Stair nosings and trims L30/590 Applied stair nosings M50/75 Stair nosings and trims M11/830 Stair nosings/ trim M50/750 Stair nosings and trims |
SKU Code | NSLR508, NSLR508.01, NSLR508.16, NSLR508.20, NSLR508.25, NSLR508.27, NSLR508.30, NSLR508.43, NSLR508.44, NSLR508.46, NSLR508.47, NSLR508.48, NSLR508.54, NSLR508.58, NSLR508.68, NSLR508.78, NSLR508.113, NSLR508.601, |
Specification data - Flexible polyvinyl chloride (PVC) stair nosings
Classification data | |
Profile | ‘Light out’ configuration. |
Colour | Anodized (81) Matt Silver. Bespoke. Guidance for specification option: Other finishes are available on request. |
Size | |
Rise x going | 48.5 x 77.5 mm. |
Gauge | 3.5 mm. |
Insert | 01 White. 16 Black. 20 Brown. 25 Beige. 27 Canvas. 30 Red. 43 Dolphin Grey. 44 Ice Grey. 46 Midnight Grey. 47 Yellow. 48 Cobalt Blue. 54 Saffron. 58 Cloud. 68 Haze. 78 Sand. 113 Tangerine. Tredsafe® 601 White. Tredsafe® 616 Black. Tredsafe® 643 Dolphin Grey. Tredsafe® 647 Yellow. |

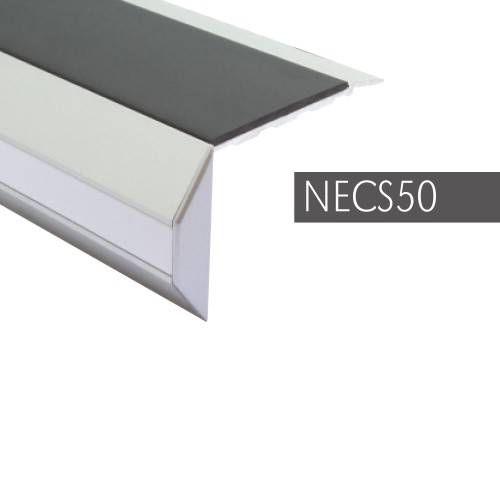

End cap | NECS50 End Caps - Matt Silver Finish (81). Not required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Material | Polyvinyl chloride (PVC) |
Recyclability | Partially (remove insert and polycarbonate Diffuser, recycle aluminium, dispose of insert and polycarbonate diffuser) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Literature
Literature type
Colour Chart - Nosing
GEN436 Vision Tech Pack
Vision Brochure
Vision Nosing Datasheet
Similar products from Genesis Global Systems Limited

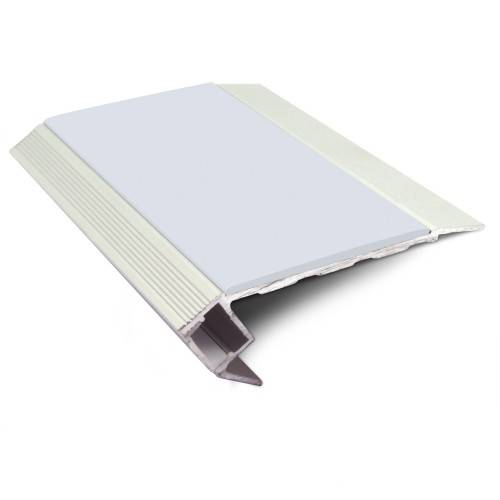

NALR50 Vision Nosing Lights Down - Stair nosing
