NPS - Neoprene Partition Support

Description

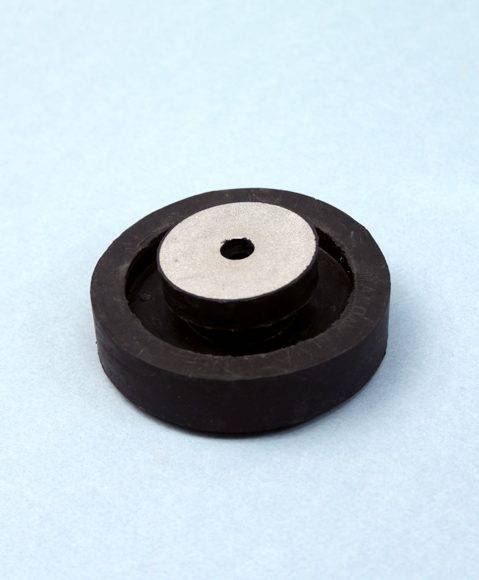

NPS Partition Support isolates the bottom channel of steel stud walls. It is important that the walls of a space sensitive to noise or vibration transmission are isolated from the main building structure. These acoustically isolated walls can be built on a floating floor or specially designed wall support plates. If the wall requires support at the bottom, NPS anti-vibration mounts will be required. The NPS is held in place by a frame or hammer fixing. The NPS comes in two parts which sit above and below the stud to ensure vibrations are not passed between the wall stud and the fixing into the base slab. It is made from LDS (Low Dynamic Stiffness) Rubber. They were previously made from Neoprene. The load capacities range from 64kg up to 152kg for different types.

General information

Color

Black

Red

Green

Features

Steel bush prevents overtightening

Material

Neoprene

Size

30 x 86 mm

Uniclass 2015

Pr_20_85_85_02 Acoustic and vibration resistant bearingsPrimary

Digital objects

Platform Compatible Version Certified to
IFC
-

2

2.1
Revit
-

2

2.1
Download now from NBS National BIM Library
