Verified by manufacturer 2 months ago

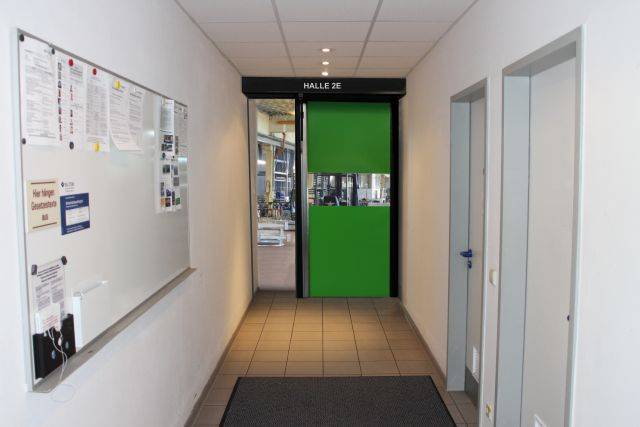

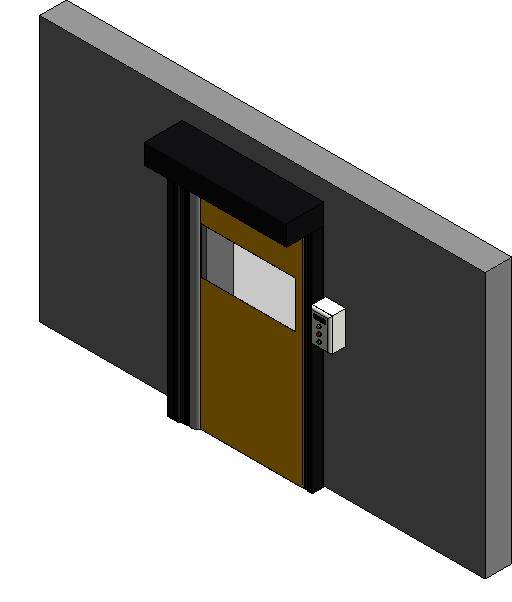

As a high-speed door opening to one side, NOVOSPRINT Mono was designed specifically for narrow passage openings.
Suitable for confined installation situations and highly frequented routes, e.g. in retail or in the healthcare sector.
A high speed door range.
Features and benefits:
Color | White Guidance for specification option: Frame. Yellow Guidance for specification option: Door panel. Other Guidance for specification option: Insert requirement. Consult manufacturer. |
Material | Steel Guidance for specification option: Frame. Polyester Guidance for specification option: Door panel. PVC coated. |
Shape | Square Rectangle |
Warranty description | One year Guidance for specification option: Manufacturing and installation defeats 12 months in line with Dortek warranty (details available on request). Guaranteed 500 000 openings of the door’s springs (first set of springs, max 24 months). |
Material | Steel Guidance for specification option: Frame. Polyester Guidance for specification option: Door panel. PVC coated. |
Uniclass | |
CAWS | L20/570 High-speed doors |
Product range |
Speed (minimum) | |
Opening | 1.75 m/s. |
Closing | 1.25 m/s. |
Curtain material | Manufacturer's standard.Guidance for specification option: Polyester fabric PVC coated on both sides similar to RAL 1003, with vision element at a height of 1480 to 2000 mm. Special variant.Guidance for specification option: Special colour, vision panel, PVC-free, anti-static, food safe (comparable with FDA requirements), antistatic, hardly flammable (B1). Consult manufacturer for details. |
Frame and guides | |
Material | Steel. |
Finish and colour | White.Stainless steel.Sendzimir galvanized.Special order.Guidance for specification option: Insert requirement. |
Accessories | None.Airlock.Guidance for specification option: Reduces waiting times, accelerates processes. Anti-crash protection.Combination.Guidance for specification option: Combined protection for highly frequented external doors (SPACELITE or SECTIOLITE doors). Double skin.Guidance for specification option: A second skin for greater protection. Escape route.External light curtain.External photo eye.Ground closure.Imprinting.Laser sensor.Optoelectronic safety light curtain.Guidance for specification option: Integrated in the door leaves, with power supply via energy chain or trailing cable. Optoelectronical sensor.Guidance for specification option: integrated into the door leaves, with power supply via energy chain or trailing cable. Photoelectric barrier.Pulse transmitter.Guidance for specification option:
Radar sensor/ crash guard.Skin designs.Sprint.Guidance for specification option: Ultra-fast opening and closing. Switches.Transport rail.Guidance for specification option: In preparation for the unhindered flow of goods. Manufacturer guidanceNot all options can be combined with each other. Consult manufacturer for details. |
Dimensions | Manufacturer guidanceInsert requirements, maximum width/ height: 4500 x 4500 mm. Others sizes are available, consult manufacturer for details. |
Drive/ Control | Gear motor with double brake (with emergency release lever). Guidance for specification option: Manufacturer's standard. Closed when de-energized. Gear motor with double brake (without emergency release lever). Guidance for specification option: Open when de-energized. Manufacturer guidanceWith BDC E800 F frequency converter control. |
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Steel Guidance for specification option: Frame. Polyester Guidance for specification option: Door panel. PVC coated. |
