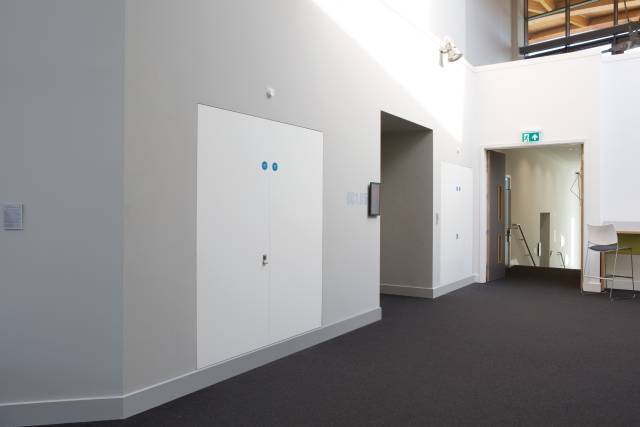

Novista Concealed Timber Riser – FD30/60

Name: Novista Concealed Timber Riser – FD30/60
Brand: Aspex UK Limited
SKU: kSU8Dc31r2PFqmABgNU6ge

Verified by manufacturer 22 days ago

FD30

Aspex UK Limited

Product certifications:

IFCC
Certificate type

Timber riser doorset with hidden frame

Jump to:

+44 (0)116 2783506 Website

Application

Workplace.

Leisure and hospitality.

Healthcare.

Residential apartments.

Description

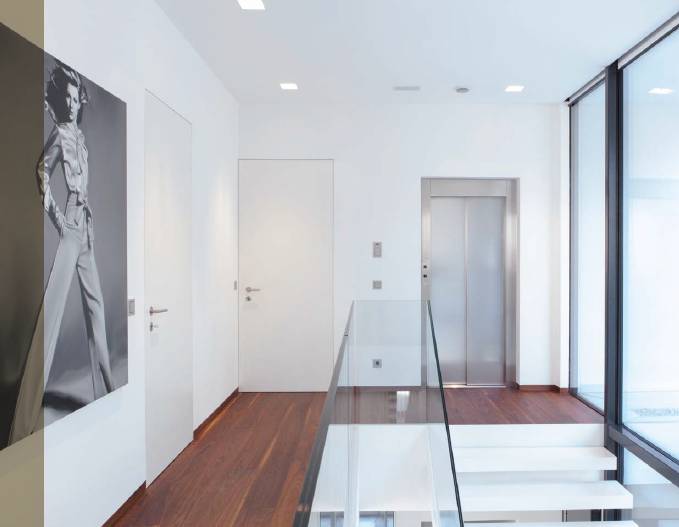

Doorset with a door frame that is built into the wall and is completely invisible when the door is closed. The system is available with a timber door leaf in single or double configurations, with a fire rating of up to FD60 and an acoustic rating of up to 35 dB Rw.

Key features and benefits:

Fully concealed steel frame.
Solid core timber door leaf.
Fast and easy installation.
Three- or four-sided frame.
Fire rated up to FD60.
Acoustic rated up to 35 dB Rw sound reduction.
Smoke tested – includes smoke seals.
Concealed or standard hinges.

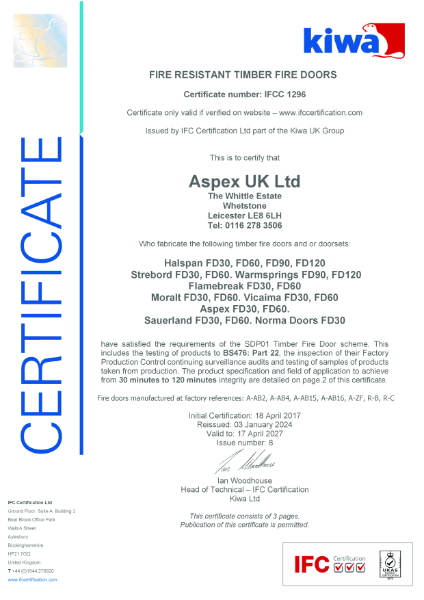

Certification:

IFCC (International Fire Consultants Certification).
FSC and PEFC chain of custody.

General information

Color	- Manufacturer guidance Can be pre-painted to any RAL colour.
Finish	Laminated Primed Veneered
Material	Wood
Shape	Rectangle
Width	850 mm Guidance for specification option: FD60. 880 mm Guidance for specification option: FD30.
Height	2420 mm Guidance for specification option: FD60. 2500 mm Guidance for specification option: FD30.
Warranty description	Two year Manufacturer guidance Subject to T&Cs and adherence to O&M Manual

Uniclass	Pr_30_59_24_97 Wood doorsetsPrimary
CAWS	L20/410 Wood doorsets L20/55 Doorsets

Product range	Novista - Concealed doors

Specification data - Wood doorsets

Classification data
Third party accreditation	BM TRADA Q-Mark, FSC and PEFC chain of custody.
Configuration	EP3. Guidance for specification option: Equal pair with three-sided frame. EP4. Guidance for specification option: Equal pair with four-sided frame. S3. Guidance for specification option: Single leaf with three-sided frame. S4. Guidance for specification option: Single leaf with four-sided frame. UEP3. Guidance for specification option: Unequal pair with three-sided frame. UEP4. Guidance for specification option: Unequal pair with four-sided frame.
Doorset size	As drawing. Guidance for specification option: Insert reference. As schedule. Guidance for specification option: Insert reference.
Format	Double leaf, single action. Single leaf, single action.
Performance	-
Acoustic performance	None. 32 dB Rw. 35 dB Rw.
Frame	-
Material	Galvanized steel with perforated flange for plaster adhesion.
Door leaf	-
Thickness	44 mm.
Lippings	10 mm hardwood to all edges.
Finish	LAM. Guidance for specification option: Laminate-faced, insert requirement. PG. Guidance for specification option: Primed for site painting. RAL. Guidance for specification option: Insert RAL colour requirement. VABW-C. Guidance for specification option: Veneered American black walnut crown cut and treated with matt clear lacquer. VABW-Q. Guidance for specification option: Veneered American black walnut quarter cut and treated with matt clear lacquer. VAWA-C. Guidance for specification option: Veneered American white ash crown cut and treated with matt clear lacquer. VAWA-Q. Guidance for specification option: Veneered American white ash quarter cut and treated with matt clear lacquer. VAWO-C. Guidance for specification option: Veneered American white oak crown cut and treated with matt clear lacquer. VAWO-Q. Guidance for specification option: Veneered American white oak quarter cut and treated with matt clear lacquer. VC-C. Guidance for specification option: Veneered cherry crown cut and treated with matt clear lacquer. VC-Q. Guidance for specification option: Veneered cherry quarter cut and treated with matt clear lacquer. VEO-C. Guidance for specification option: Veneered European oak crown cut and treated with matt clear lacquer. VEO-Q. Guidance for specification option: Veneered European oak quarter cut and treated with matt clear lacquer. VM-C. Guidance for specification option: Veneered maple crown cut and treated with matt clear lacquer. VM-Q. Guidance for specification option: Veneered maple quarter cut and treated with matt clear lacquer. VSB-C. Guidance for specification option: Veneered steamed beech crown cut and treated with matt clear lacquer. VSB-Q. Guidance for specification option: Veneered steamed beech quarter cut and treated with matt clear lacquer. Special order. Guidance for specification option: Insert material and finish requirements.
Hardware	- Manufacturer guidance Insert requirement; contact manufacturer for information.
FireRating	FD30.
Hinges and hanging hardware	CH. Guidance for specification option: Concealed hinges. FPH. Guidance for specification option: Visible fixed pin butt hinges to BS EN 1935, grade 13. LOH. Guidance for specification option: Visible lift-off butt hinges to BS EN 1935, grade 11.
Width	880 mm.
Height	2500 mm.
