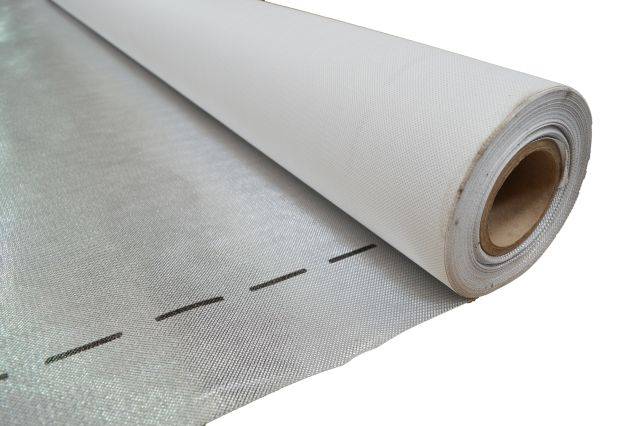

Novia® ReflexXLBreathableReflectiveWallMembrane
Application

Suitable for use in all insulated frame applications.

Description

High-quality reflective breather membrane that complies with EN 13859-1. When used in suitable construction (e.g. facing an airgap), this membrane will deliver improved R and U-Values (thermal resistance and thermal transmittance). Novia Reflex also complies with EN 13501-1 fire classification grade E.


Features and Benefits:

  • Tri-laminate membrane with low emissivity and high reflectivity.
  • Waterproofing properties to EN 1928 W1.
  • UV resistance: Install as per BS 5534:2014 + A2 2018 UV guidance.
  • High tensile and nail tear strength.
  • Cost effective.
  • Applied with a transparent coating that reduces the corrosion and avoids reflectivity loss over time.
  • Cooler in summer and warmer in winter.
  • Complies with European Construction Products Regulations (CPR) rules.
  • CE compliant to EN 13859-1.

Consult manufacturer's literature for installation guidelines.

General information

Finish

Applied with a transparent coating

-

Color

Metallic/ white

White

Material

Tri-laminate membrane

Membrane

Shape

Roll

Size

2.7 x 100 m

Uniclass 2015

Pr_25_57_10_94 Vapour permeable sheetsPrimary

CAWS

H20/150 Sheet cladding

H20/155 Sheet cladding

H21/110 Vertical timber weatherboarding

H21/111 Horizontal timber weatherboarding

H21/115 Vertical timber weatherboarding

H21/116 Horizontal timber weatherboarding

H21/130 Breather membrane

H21/20 Breather membrane

H30/110 Fibre cement

H30/120 Fibre cement

H30/350 Breather membrane

H30/50 Breather membrane

H31/280 Breather membrane

H31/55 Breather membrane

H60/105 Clay roof tiling

H60/110 Clay roof tiling with counterbattens

H60/120 Concrete roof tiling

H60/125 Concrete roof tiling with counterbattens

H60/145 Clay vertical tiling

H60/155 Concrete vertical tiling

H61/105 Roof slating

H61/110 Roof slating with counterbattens

H61/120 Vertical slating

H62/105 Roof slating

H62/110 Roof slating with counterbattens

H62/120 Vertical slating

H62/125 Roof slating

H62/130 Roof slating with counterbattens

H62/140 Vertical slating

H62/145 Roof slating

H62/150 Roof slating with counterbattens

H64/110 Wood shingle/ shake roofing

H64/120 Wood shingle/ shake roofing with counterbattens

H64/130 Vertical wood shingle/ shakes

H65/105 Clay roof tiling

H65/110 Clay roof tiling with counterbattens

H65/115 Concrete roof tiling

H65/120 Concrete roof tiling with counterbattens

H65/125 Reconstituted slate roof tiling

H65/130 Reconstituted slate roof tiling with counterbattens

H65/135 Ceramic slate roof tiling

H65/140 Ceramic slate roof tiling with counterbattens

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/130 Metal vertical tiling

H92/120 Rainscreen cladding

H92/785 Breather membrane

K21/111 Wood floating floor

M30/265 Building paper

P10/320 Breather membrane

P10/65 Breather membrane

Specification data - Vapour permeable sheets Enhanced data

Standard

CE compliant to EN 13859-1.

Class (minimum)

W1 Water tightness.

Product Reference

Novia® Reflex XL Breathable Reflective Wall Membrane

Weight

128 gsm.

Roll weight

39 kg.

TensileStrength

(MD/ CD): 250/150 N/50mm to EN 12311-1.

Elongation

(MD/ CD, to EN 12311-1): 70/65%,.

Tear resistance

(MD/ CD): 112/150 N to EN 12310-1.

Resistance to air penetration

0.009 m³/m²h.50.pa to EN 12114.

Sd value

0.12 m to EN 12572.

Resistance to water penetration

Class W1 to EN 1928.

Resistance against fire

E Class to EN 13501-1.

Temperature resistance

-40–100°C.

UV resistance

One month (protect from heavy weathering).

Emissivity

0.22 to EN 12898.

Tape

Novia Breather Membrane Lap Tape.

Single sided, for standard installations

Novia® Double-Sided Adhesive Tape.

Provides a greater emphasis on air-tightness
