Novia Black Construction Wrap
Application

Suitable for all insulated frame applications.

Description

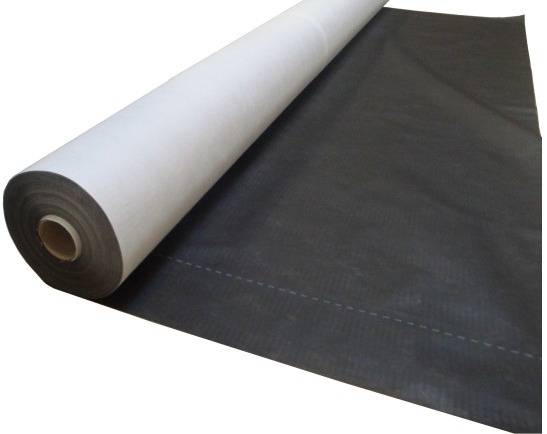

A high quality, versatile breather membrane that complies with EN 13859-1 for pitched roofing and EN 13859-2 for walls. Novia Black Construction Wrap achieves maximum EN 1928 W1 water resistance while remaining highly breathable. It is strong and lightweight. The product is black on one side and white on the reverse, with a 150 mm overlap line. There are no text or images on either side.

Novia Black Construction Wrap is compliant with mandatory CE marking requirements introduced under the 2013 Construction Products Regulations.

Advantages:

  • Water resistance to EN 1928 W1 Class.
  • 2.7 m wide material for easier installation.
  • Industry leading quality wall breather for all insulated frame applications.
  • Completely black except for 150 mm lap line.
  • Highly vapour permeable.
  • Full specification breather membrane with three-layer laminate with microporous core.
  • Excellent tensile and nail tear strength.
  • Matt finish slip-resistant surface.
  • One month's UV resistance.
  • CE compliant to EN 13859-1 for roofs and EN 13859-2 for walls.
  • Also compliant to BS 4016 Type 1.
  • Recyclable and ecologically harmless.
  • Provides temporary protection during the construction phase.

Application:

Suitable for all insulated frame applications.

General information
Finish

No logo print

Material

Breathable microporous film

Shape

Roll

Size

2.7 x 100 m (w x l)

Uniclass 2015
Pr_25_57_10_94 Vapour permeable sheetsPrimary
CAWS

H21/130 Breather membrane

H21/20 Breather membrane

H30/350 Breather membrane

H30/50 Breather membrane

H31/280 Breather membrane

H31/55 Breather membrane

H92/120 Rainscreen cladding

P10/320 Breather membrane

P10/65 Breather membrane

Specification data - Vapour permeable sheets
Product Reference

Novia Black Construction Wrap

Standard

CE compliant to EN 13859-1 (roofs) and EN 13859-2 (walls)

Class (minimum)

W1 Water Tightness

Third-party certification

CE compliant to EN 13859-1 (roofs) and EN 13859-2 (walls)

Weight (minimum)

95 gsm

Reflective face

0%

Roll weight

25.5 kg

Weight

100 g/m²

Tensile strength MD/CD

185/95 N/50 mm

Elongation MD/CD

70/110%

Tear resistance MD/CD

90/125 N

Resistance to air penetration

0.05 m³/m³h.50.pa

Sd value

0.03 m

Resistance to water penetration

W1 >250: Class cm

Resistance against fire

F Class

Low temperature stability

- 40°C

UV resistance

One month

Tape

Novia Breather Membrane Lap Tape

Novia Double-sided Adhesive Tape

Standard product features

Colour:

Black/ white on reverse.

Finish:

No logo print.

Material:

Breathable microporous film.

Shape:

Roll.

Size:

2.7 x 100 m (w x l).

Recyclability:

Recyclable.

Environmental information
Recyclability

Recyclable
