Norsound NOR880 Rebated Pivot Acoustic Automatic Door Bottom seal

Norsound NOR880 Rebated Pivot Acoustic Automatic Door Bottom seal

NORSEAL

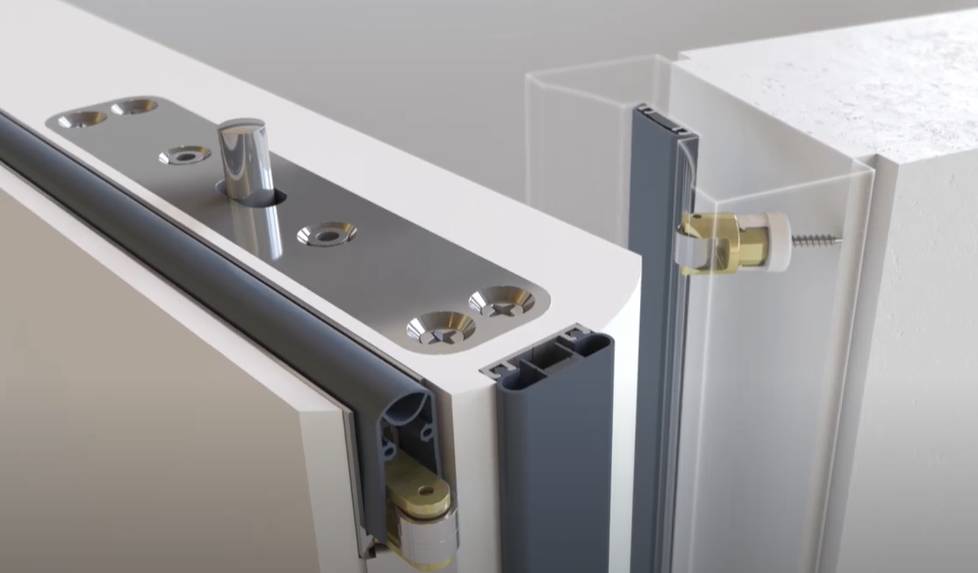

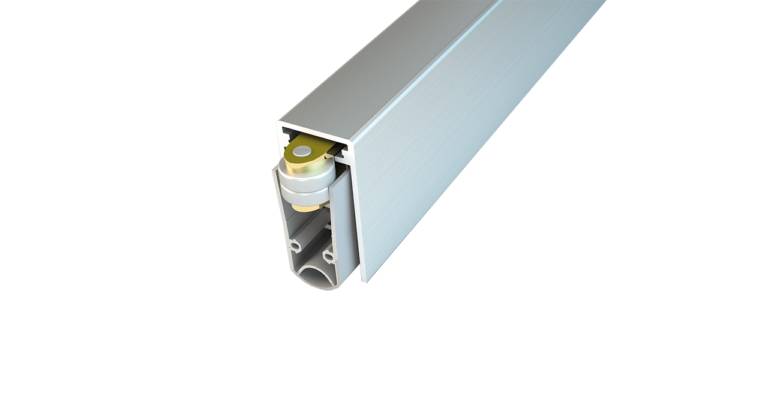

Aluminium housing with silicone seal, for fitment to bottom edge of acoustic timber doorsets with pivot hinges.

Jump to:
+44 (0)1661 830 088 norseal.co.uk

Application

Suitable for use on double swing pivot doors.

Description

Aluminium housing with silicone seal, for fitment to bottom edge of acoustic timber doorsets with pivot hinges.


Features and benefits:

  • Rebated fixed, held in place with angle brackets.
  • Smoke tested in accordance with BS 476-31.1.
  • Acoustically tested in accordance with BS EN ISO 10140-2.
  • Maximum gap coverage: 20 mm.
  • Cutback up to 125 mm.
  • Single actuation.


General information

Finish

Mill

Aluminium.

Color

Grey

Seal/ gasket.

Silver

Housing.

Material

Aluminium

Silicone

Shape

Rectangular

Size

  • Minimum length: 235 mm.
  • Maximum length: 2000 mm.
  • Special size to order.


708 x 15 x 30 mm

833 x 15 x 30 mm

958 x 15 x 30 mm

1083 x 15 x 30 mm

1208 x 15 x 30 mm

WarrantyDescription

One year

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Door and window weatherstrips and seals Enhanced data

Standard

To BS EN ISO 10140-2 and BS 476-31.1.

Functions

Acoustic seals.

Classification grades (minimum)

-

Category of use

Type G.

Size

  • Minimum length: 235 mm.
  • Maximum length: 2000 mm.
  • Special size to order.


708 x 15 x 30 mm.

833 x 15 x 30 mm.

958 x 15 x 30 mm.

1083 x 15 x 30 mm.

1208 x 15 x 30 mm.

Materials

-

Seals

Silicone.

Carriers

Aluminium.

Colour

Mill finish aluminium.

Housing.

Grey.

Seal/ gasket.

Fixing

Rebated fixed, held in place with angle brackets.

Actuation

Single.

Cutback

Up to 125 mm.
