Norsound NOR810 Rebated Acoustic Automatic Door Bottom seal

Norsound NOR810 Rebated Acoustic Automatic Door Bottom seal

NORSEAL Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

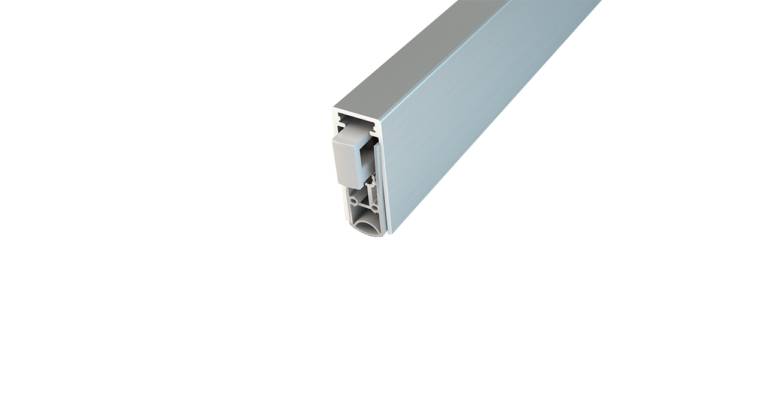

Aluminium carrier with silicone seal, for fitment at bottom of fire and acoustic timber doorsets.

Jump to:
+44 (0)1661 830 088 norseal.co.uk

Application

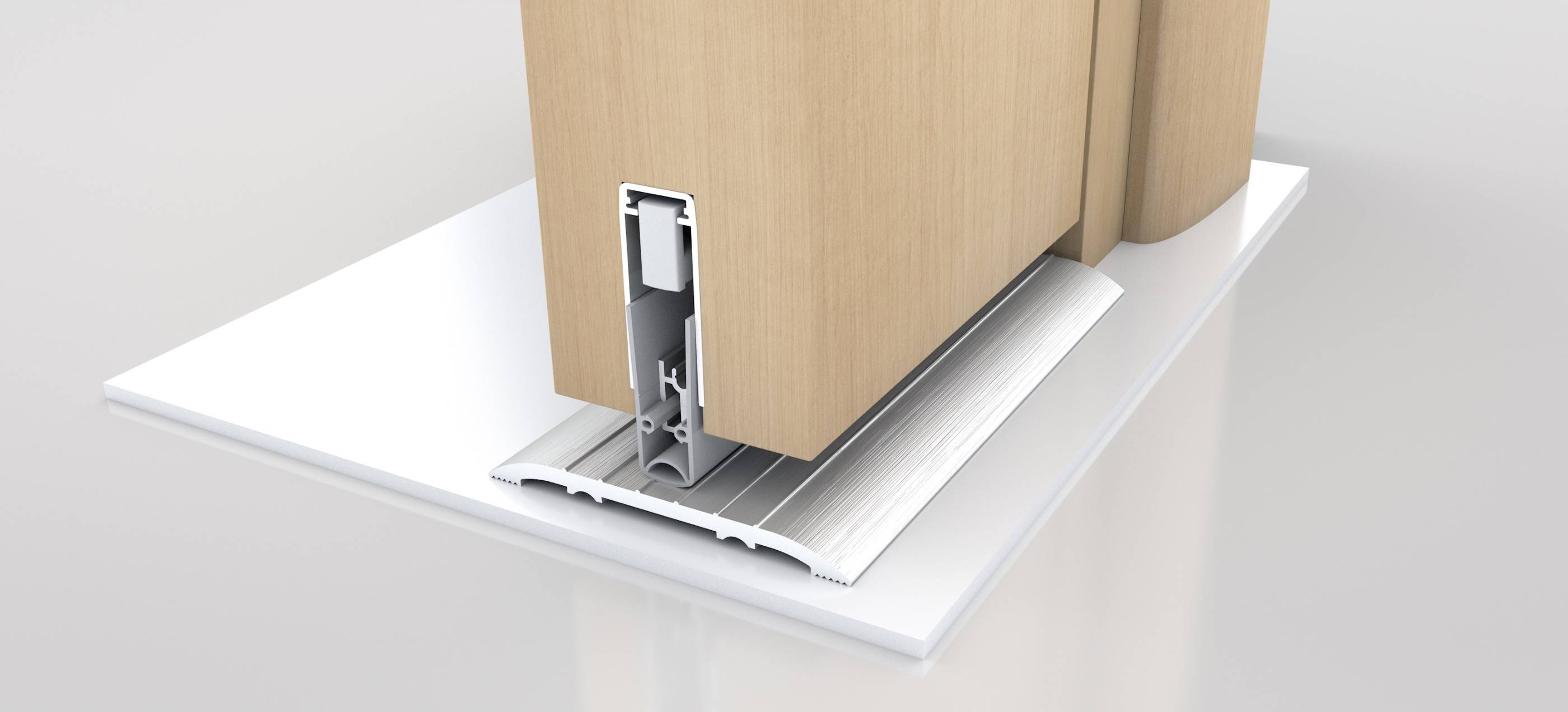

Suitable for placement on bottom of acoustic timber doorsets and most fire doors.

Description

Aluminium carrier with silicone seal, for fitment at bottom of  fire and acoustic timber doorsets.


Features and benefits:

  • Rebated fixing, held in place with end caps.
  • Smoke tested in accordance with BS 476-31.1.
  • Compliant with BS 476-22.
  • Acoustically tested in accordance with BS EN ISO 10140-2.
  • 1 000 000 cycle tested.
  • Certifire CF629.
  • UL approved.
  • Maximum gap coverage: 20 mm.
  • Various cutbacks, up to 100 mm.
  • 320 mm minimum length, limited to cutback of 85 mm.
  • Single actuation.


General information

Finish

Mill

Aluminium.

Color

Grey

Seal/ gasket.

Silver

Carrier.

Material

Aluminium

Silicone

Steel

Shape

Rectangular

Size

  • Minimum length: 320 mm.
  • Maximum length: 1700 mm.
  • Special size to order.

320 x 14 x 35 mm

435 x 14 x 35 mm

535 x 14 x 35 mm

635 x 14 x 35 mm

735 x 14 x 35 mm

Show more

WarrantyDescription

1 000 000 cycles

-

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Door and window weatherstrips and seals Enhanced data

Standard

To BS EN ISO 10140-2, BS 476-31.1 and BS 476-22.

Third-party certification

CF 629 and UL.

Certifire and UL compliance certification to BS 476: Part 22.

Functions

Acoustic seals.

Fire and smoke seals.

Classification grades (minimum)

-

Category of use

Type G.

Size

  • Minimum length: 320 mm.
  • Maximum length: 1700 mm.
  • Special size to order.

320 x 14 x 35 mm.

435 x 14 x 35 mm.

535 x 14 x 35 mm.

635 x 14 x 35 mm.

735 x 14 x 35 mm.

835 x 14 x 35 mm.

935 x 14 x 35 mm.

1035 x 14 x 35 mm.

1135 x 14 x 35 mm.

1235 x 14 x 35 mm.

1335 x 14 x 35 mm.

1435 x 14 x 35 mm.

1535 x 14 x 35 mm.

Materials

-

Seals

Silicone.

Carriers

Aluminium.

Colour

Mill finish aluminium.

Carrier.

Grey.

Seal/ gasket.

Fixing

Rebated, held in place with end caps.

Actuation

Single.

Cutback

Various up to 100 mm.

85 mm.

Applicable to minimum length of 320 mm.
