This product is no longer available —

nora® nTx
Application

  • Mineral subfloor.
  • With increased residual moisture floor.
  • Floor on floor.

Description

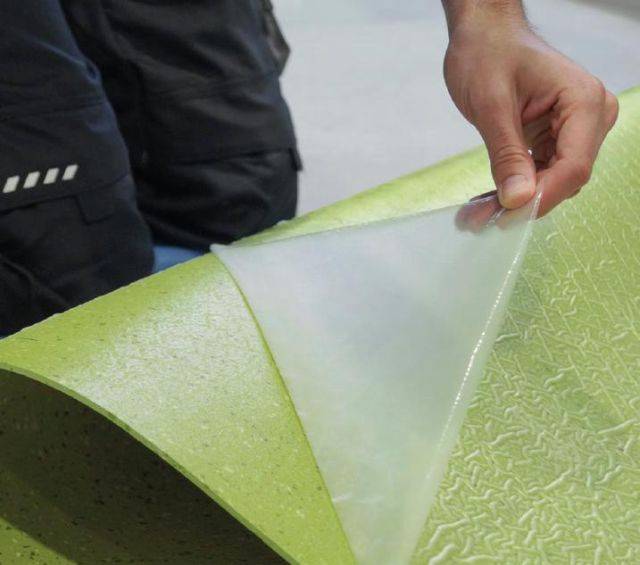

nora® nTx is a floor covering with an adhesive backing lined with a protective film.

Features and benefits:

  • Fast - flooring can be laid quickly and easily in a few simple steps with minimal potential for error.
  • Efficient - floorings can be laid directly on existing surfaces (even with high levels of residual moisture) and can be used immediately. No drying or waiting time.
  • Economical - reduces downtime, saves costs and minimizes the risk of errors.
  • Adhesive is based on natural rubber and is free from health hazards.

Applications:

  • Mineral subfloor.
  • With increased residual moisture floor.
  • Floor on floor.

Warranty and certification:

  • Five year warranty.
  • Indoor Air Comfort GOLD certification.

General information
Size

See 'Options' below and insert requirements.

Uniclass 2015
Pr_35_57_71_84 Smooth rubber tilesPrimary
Specification data - Smooth rubber tiles
Product Reference

noraplan® signa nTx

Art. 156A.

noraplan® sentica nTx

Art. 1633.

norament® 926 arago nTx

Art. 3122.

norament® 926 grano nTx

Art. 3111.

norament® 926 satura nTx

Art. 3111.

Size

See 'Options' below and insert requirements.

Colour

See 'Options' below and insert requirements.

Standard product features

Thickness:

  • noraplan® signa nTx and sentica nTx: 2.1 mm.
  • norament® 926 arago nTX / grano nTx / satura nTx: 3.6 mm.

Technical characteristics:

  • Dynamic coefficient of friction: Fulfilled to EN 13 893.
  • Reaction to fire: Fulfilled to EN 13 501-1.
  • Thermal conductivity: 0.17 W/(m.K).
  • DoP-Number: noraplan® 0027, norament® 0031.
  • Dimensional stability: ± 0.3%.
  • Cigarette-burn resistance: Fulfilled to EN 1399.
  • Flexibility: Fulfilled to EN ISO 24 344.
  • Hardness: noraplan® 92 Shore A, norament® 82 Shore A.
  • Residual indentation: noraplan® 0.05 mm, norament® 0.15 mm.
  • Abrasion resistance at 5 N load: noraplan® 150 mm³, norament® 130 mm³.
  • Colour fastness to artificial light: Grey scale ≥ 3 according to ISO 105-A02.
  • Weight: 2.1 mm: ~ 3.36 kg/m², 3.1 mm: ~ 5.08 kg/m², 3.6 mm: ~ 5.40 kg/m².
  • Tear strength: noraplan® 28 N/mm, norament® 34 N/mm.
  • Slip resistance: R9 (smooth surface), R10 (finely-structured surface).
  • Effect of chemicals: Resistant (A).
  • Electrostatic behaviour when being walked on: Antistatic, charging in case of rubber soles < 2 kV.
  • Effect of castor chair: Suitable if castor wheels, type W, according to EN 12 529 are used.
  • noraplan® fire behaviour: Cfl-s1 to EN 13501-1, HL1 to EN 45 545, Class 1 (≥ 0.50 W/cm²).
  • noraplan® smoke density: After 1.5 minutes < 100, after 4 minutes < 200.

Adhesive characteristics:

  • Density: Approximately 0.92 g/cm³.
  • Softening range: Approximately 105°C.
  • Viscosity: 45 000 mPas at 170°C until 13 000 mPas at 190°C.
  • Solid body content: 87%.
  • VOC: 0%.

Product Options

Size:

  • noraplan® signa nTx and sentica nTx: 1.22 x 14.8 m roll.
  • norament® 926 arago nTx: 1004 x 502 mm.
  • norament® 926 grano nTx and satura nTx: 1004 x 1004 mm or 1004 x 502 mm.

Colours:

  • noraplan® signa nTx: 7031, 7033, 8051, 7055, 7065.
  • noraplan® sentica nTx: 6505, 6506, 6517, 6520, 6522.
  • norament® 926 arago nTx: 5172, 5177.
  • norament® 926 grano nTx 926:5302, 5303, 5304, 5305, 5306, 5318.
  • norament® 926 satura nTx: 5102, 5106.

Other designs and colours available on request.
