Noracon Cradle
Verified by manufacturer 3 months ago
BMU workcage scout.
BMU workcage scout.
Lightweight aluminium BMU cradle for facade access and maintenance.
Application
Cradle designed to provide access to facades for general maintenance purposes.
Cradles can be mounted to monorails via a variety of trolleys to provide full access to buildings.
Horizontal and vertical movement can be achieved using manually powered or electrically powered trolleys and hoists.
Description
Lightweight aluminium BMU cradle.
Features and benefits:

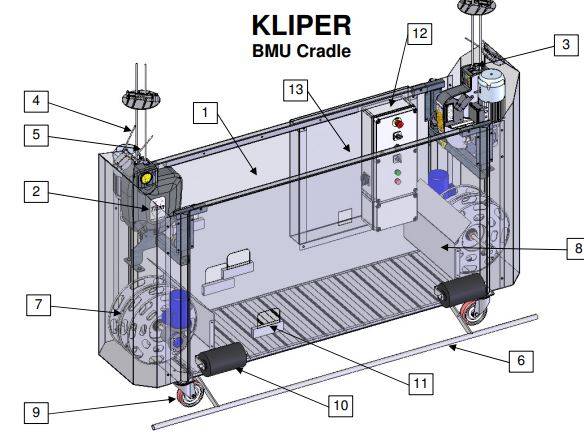

-Kliper BMU Cradle
- Lightweight aluminium construction.
- All-around solid plate aluminium cladding, including around the wire winders.
- Powered by TITAN-403 PI traction hoist with: electro-mechanical overload detection device in series, electro-mechanical service brake, ‘No Power’ emergency descent, thermal protection in series and slack rope safety device.
- Safety devices: Top limit switch, ultimate top limit switch, mechanical anti-tilt device, bottom limit trip bar, twin-drum wire winders up to 125 m and internal cover over wire winder.
- Low-noise castor wheels Ø160 mm.
- Non-marking soft wall rollers.
- CE-marked safety harness attachment points.
- Foot-steps on both sides for in/ out.

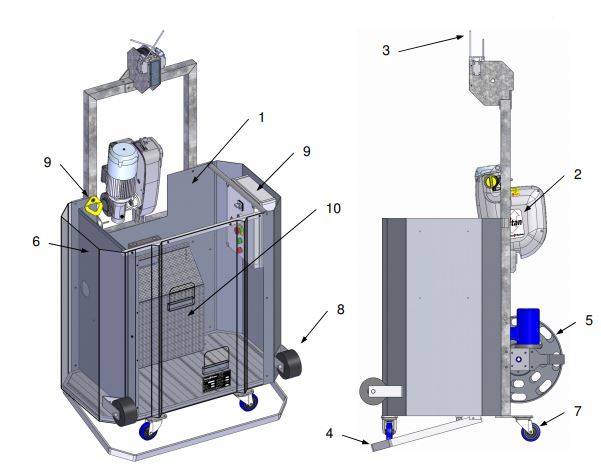

-BMU Workcage Cradle
- Light weight aluminium construction .
- All-around cladding (solid aluminium plate).
- Powered by TITAN hoist with thermal protection.
- Power supply: 3 x 415 V + Neutral + Earth, three phase, 50Hz.
- Two built-in safeties: Slack rope safety device and overspeed safety device.
- Top and Ultimate top limit switch.
- Bottom limit trip bar.
- Electro-mechanical overload detection device.
- Electro-mechanical service brake.
- ‘No Power’ emergency descent system.
- Twin-drum wire winders up to 125 m.
- Internal cover for wire winder.
- Cable bin max. capacity 75m of cable.
- Low-noise castor wheels.
- Non-marking soft wall rollers.
- CE-marked safety harness attachment points.
General information
Color | Silver Other Guidance for specification option: Can be powder coated to any standard RAL. Manufacturer guidanceRAL painting available, consult manufacturer and insert requirement. |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | N25/110 Permanent suspended access system |
Product range |
Specification data - Access cradles
Carrying capacity | One person. |
Rated load | 1200 N.Manufacturer guidanceSafe Working Load (SWL). |
Working dimensions | |
Clear working width | 655 mm. |
Length | 700 mm.1100 mm.1500 mm. |
Platform construction | |
Type | Single deck. |
Material | Aluminium. |
Factory finish | |
Coating | Not required.Powder coated. |
Colour | Not required.RAL. |
Type | BMU workcage scout. |
Power supply | 415 V, 50Hz. |
Ropes | Ø 8.4 mm (52.3 kN). Manufacturer guidanceSafety and suspension rope. |
Control cabinet | Required. Guidance for specification option:
|
Accessories | Not required. Telescopic wall rollers. Controls for monorail trolleys. Low Voltage Control Circuit (48 V). Single phase and 60 Hz power supplies. Guidance for specification option: Special request. |
Sustainability data
Country of material origin | Norway |
Country of product manufacture | Norway |
Recyclability | 100% |
Case studies

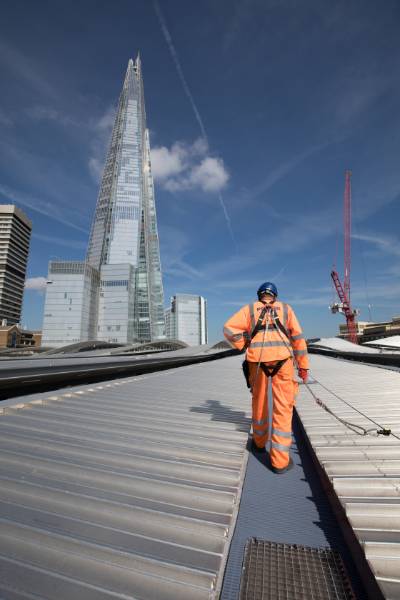

London Bridge Station
