Non-vented Roofing on Metal Faced Structural Insulated Panels

Name: Non-vented Roofing on Metal Faced Structural Insulated Panels
Brand: RHEINZINK GmbH & Co.KG Datteln – Office U.K.
SKU: 9pz2WWpJhTnfJ2iAGwxL4i

Verified by manufacturer 11 days ago

RHEINZINK GmbH & Co.KG Datteln – Office U.K.

Third party certifications:

Cradle to Cradle Certified
Certificate type
EPD
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
EnMS ISO 50001
Certificate type
TUV - Safety and Quality Report
Certificate type

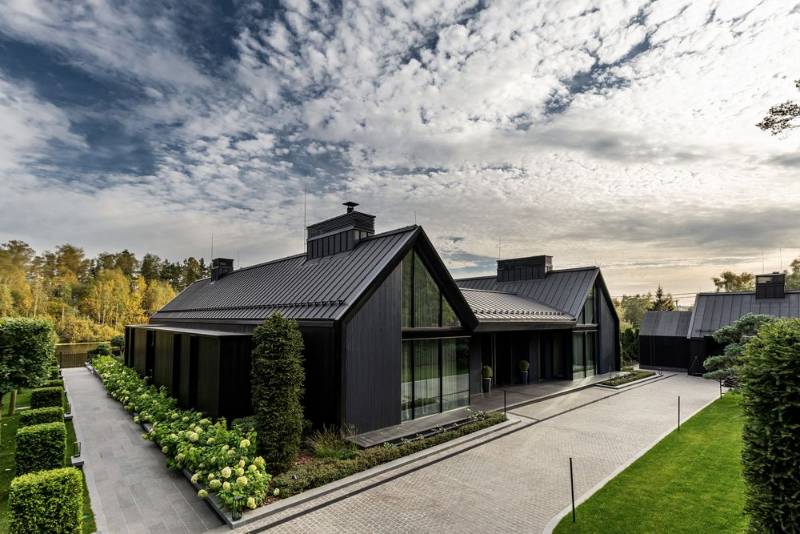

Traditional double standing seam roofing on insulated panels.

Jump to:

+44 (0)1276 686725 Website

Application

Traditional double standing seam for roofing.
Suitable for buildings in 1 to 4 humidity classes with pitches from 3º to vertical (limitations of maximum pitch may apply dependant on thickness of panel and type of fixings i.e. bending moments).

Description

Seams are folded and closed manually or with a seaming machine.

The metal faced insulated panels provide a fully sealed vapour barrier by means of their metal underside facing with taped joints. No need for additional membrane to be provided.

Outer metal face must be a minimum 0.7 mm thick in order to provide a suitable substrate for fixings.

Features and benefits:

Quick to install providing rapid temporary weathering
Use on low pitched roofing.
Sheet lengths up to 16 m.
Durable, maintenance-free and environmentally friendly roofing material.
Cradle to Cradle Certified® Bronze (CLASSIC and prePATINA).
EN 15804 EPD (CLASSIC and prePATINA).

System build-up

Interior finish
Rafters (steel or timber)
Metal faced insulated panel
Taped joints
Vapozinc structured underlay
Clips as per H74,715,720,725 and 750
Rheinzink standing seam

General information

Installation all as per Rheinzink recommendations.

General information

Color	Black Blue Brown Gold Green Grey Red Show more
Finish Pre-PATINA, GRANUM, PRISMO and CLASSIC surfaces.	Natural
Material	Zinc Titanium zinc.
Shape	Rectangle
Length	16000 mm Maximum.
Width	430 mm 500 mm 600 mm Bespoke
Height	25 mm
WarrantyDescription	30 year 30-year material guarantee.

Uniclass	Ss_30_40_50_95 Zinc sheet fully supported roof covering systemsPrimary
CAWS	H74/3 Zinc sheet fully supported roof covering H74/110 Zinc sheet fully supported roof covering

Specification data - Zinc sheet fully supported roof covering systems

Insulation Outer metal face must be a minimum 0.7 mm thick in order to provide a suitable substrate for fixings.	Metal faced insulated panel.
Substrate	Metal faced insulated panel.
Sheet underlay	-
Material	Vapozinc structured underlay.
Zinc	Rheinzink standing seam.
Longitudinal joints	-
Form	Standing seam joints.
Fixing standing seam joints	Standing seam sliding clips.
Fasteners to substrate	Screws.
System accessories	Eaves. Hip. Ridge. Verge. Vertical joint. Valley.

Standard	To EN 988.
Sheet width	430 mm. 500 mm. 600 mm. Bespoke.
Finish	CLASSIC bright rolled. GRANUM basalte. GRANUM skygrey. PRISMO black. PRISMO blue. PRISMO brown. PRISMO gold. PRISMO green. PRISMO red. prePATINA blue-grey. prePATINA graphite-grey. Show more
Sheet thickness	0.7 mm. 0.8 mm.
Reaction to fire	To EN 13501-1, Class A1 (external face). CLASSIC, GRANUM and prePATINA finishes. To EN 13501-1, Class A2 (external face). PRISMO finishes.
Third-party certification	Cradle to Cradle Certified® Bronze and EN 15804 EPD (CLASSIC and prePATINA).

Environmental information

Contains Red List materials	No
Country of product manufacture	Germany
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.85 kg CO₂ eq/kg
Recyclability	100
