Application

  • For improved sound insulation required according to DIN 4109 (minimum requirements) and VDI 4100 (increased requirements).
  • Underneath wedi Fundo systems.
  • Can also be used with Fundo Primo, Fundo Riolito/ Riolito neo, Fundo Plano and Plano Linea.

Description

Sound insulation mat for reduction of noise from water impact (shower noise) and footsteps.

Consists of a thin rubber granulate mat installed under a wedi Findo floor element for decoupling and sound insulation.

Successfully tested for compliance with increased sound insulation requirements. The extremely and permanently elastic material, consisting of a combination of rubber granulate/fibres with polyurethane binding

agents, ensures optimum sound insulation and vibration damping, offers high mechanical resistance and is available with a thickness of 8 or 17 mm.

Features and benefits:

  • Low installation height.
  • Low surface weight.

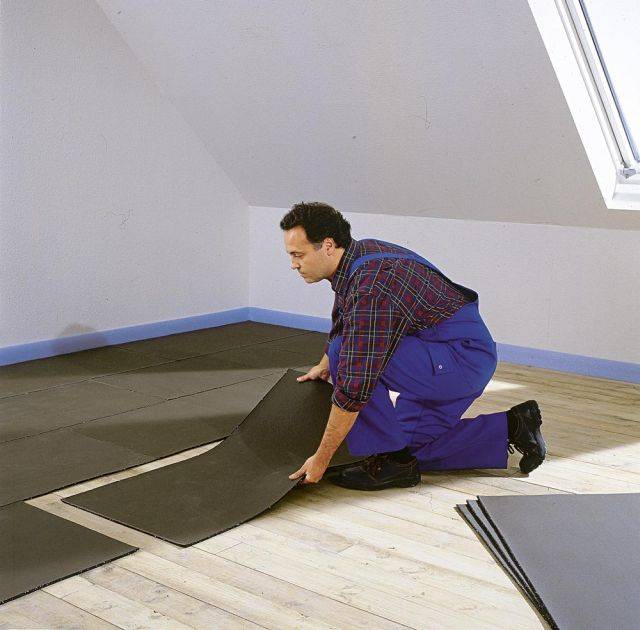

  • Short installation times and easy laying.
  • Tension-reducing.
  • Elastic and mechanically resistant at the same time.
  • Highly sound insulating wave profile.
  • Durable and recyclable.
  • For reduction of noise from water impact (shower noise) and footsteps.
  • A+ rating in relation to Emissions Dans L'air Interieur.

Applications:

  • For improved sound insulation required according to DIN 4109 (minimum requirements) and VDI 4100 (increased requirements).
  • Underneath wedi Fundo systems.
  • Can also be used with Fundo Primo, Fundo Riolito/ Riolito neo, Fundo Plano and Plano Linea.

General information
Size

600 x 600 x 8 mm

600 x 600 x 17 mm

900 x 2500 x 17 mm

900 x 5000 x 8 mm

1200 x 2500 x 17 mm

1200 x 5000 x 8 mm

Uniclass 2015
Shower trays (Pr_40_20_06_84)Primary
Specification data - Shower trays
Product Reference

Non-Step Pro Sound Insulation Mat

Size

600 x 600 x 8 mm

600 x 600 x 17 mm

900 x 2500 x 17 mm

900 x 5000 x 8 mm

1200 x 2500 x 17 mm

1200 x 5000 x 8 mm

Accessories

None

Channel drain

Fundo Plano

Fundo Plano Linea

Fundo Primo

Fundo Riolito

Fundo Riolito Neo new

Point drainage

Various options available, consult literature and insert requirements.

wedi 320 tile adhesive

wedi edge insulation strips

wedi Fundo sealing set

wedi tools joint reinforcement tape

Standard product features

Technical characteristics:

  • Material composition: Polyurethane-bound recycled rubber material.
  • Compressibility according to DIN EN 12431: c ≤1.0 mm.
  • Dynamic stiffness according to DIN EN 29052-1: s`= 47 MN/m³.
  • Dynamic stiffness mean value according to DIN EN 29052-1: s` ≈ 47 MN/m³.
  • Temperature resistance: -40 to +80°C.
  • Fire behaviour (EN 13501): Class E.
  • Sound insulation: Depending on layout, refer to test certificate no. 214575-01.02 plus 214575-01.03.
