NoiseStopper Ceiling Pads

Name: NoiseStopper Ceiling Pads
Brand: JCW Acoustic Supplies Limited
SKU: 36BeYToM2rF53v1jWJa4SP

Verified by manufacturer 11 hours ago

JCW Acoustic Supplies Limited

Acoustic ceiling pad for suspended ceilings.

Jump to:

Request BIM

01204 548400 Website

Application

For laying on top of suspended ceiling grid tiles.

Description

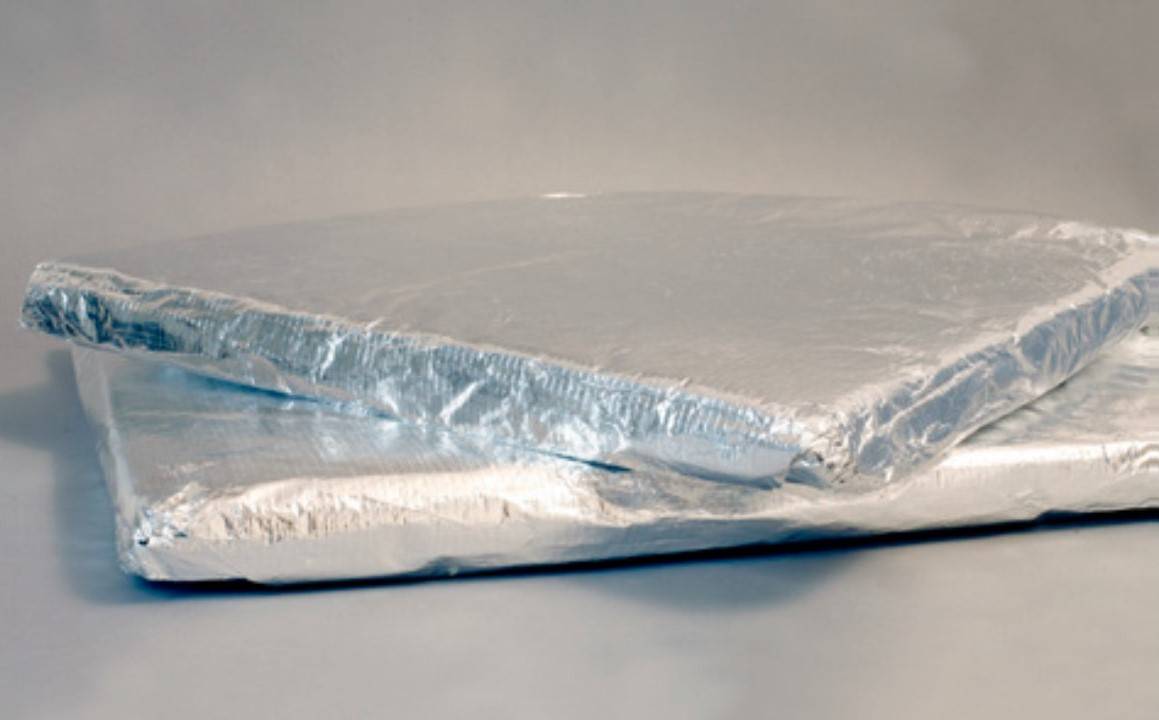

Easy to install sound blocking pad incorporating two layers of non-flammable sound absorbing acoustic mineral wool with a mineral loaded sound barrier mat core layer that is encapsulated within an aluminized, non-flammable Class 0 foil.

Features and benefits:

Easy application into any suspended ceiling system.
Lightweight solution with easy installation.
Effective soundproofing.
Class 0 fire rated foil finish.
Available in 2 sizes, 600 x 600 mm or 1200 x 600 mm.
The additional weight should not present a problem to the stability of the ceiling.

General information

Shape	Square Rectangular
Color	Silver
Material	Mineral wool Aluminized foil
Size	600 x 600 mm Guidance for specification option: 1.9 kg. 600 x 1200 mm Guidance for specification option: 3.8 kg.

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/265 Infill units

Product range	Acoustic Treatments for Suspended Ceilings

Specification data - Sound attenuator infill units

Classification data
Form	Pad.
Application	Ceiling mounting.
Material	Mineral wool.
Acoustic performance	-
Purpose	Reflector.
Fire performance	-
Reaction to fire	Class 0 non-flammable.
Dimensions	-
Size (length x width)	600 x 600 mm. Guidance for specification option: 1.9 kg. 600 x 1200 mm. Guidance for specification option: 3.8 kg.
Thickness (overall)	60 mm.
Colour	Silver.
Product Reference	NoiseStopper Ceiling Pads
Acoustic performance	14 dB. Guidance for specification option: (mean average expected):
Operating temperature range	-30 to +65°C. Guidance for specification option: Thermally stable up to 93°C.
