NOFIRNO Duct Seal  (Fire rated)

NOFIRNO Duct Seal (Fire rated)

Verified by manufacturer 2 months ago

CSD Sealing Systems Ltd Third party certifications:
  • European Technical Approvals

    European Technical Approvals

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Fire protection in accordance with BS EN 1366-3 for cable and pipe penetrations.

Jump to:
+44 (0)1670 739970 www.csdsealingsystems.co.uk

Application

NOFIRNO FR provides all sealing requirements for all types of cables, metallic and plastic pipes passing through fire rated buildings including internal walls and floors. Also provides water, gas and rodent protection.

Description

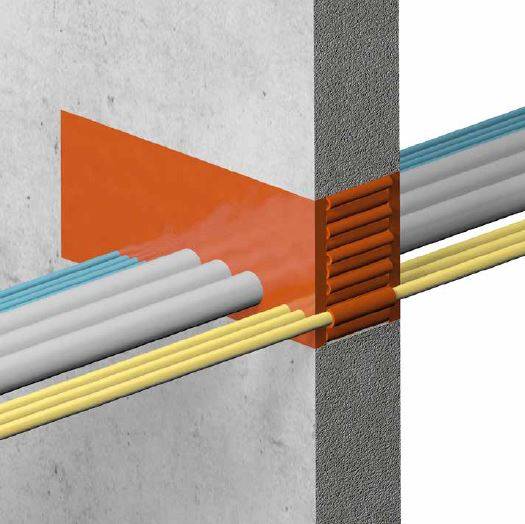

NOFIRNO FR is a simple solution for sealing all types of penetrations passing through fire rated Building including internal walls and floors. The system can be used for cables, metallic and plastic pipes or even a mixture of all three service types.



Features and benefits:

  • Fire tested in accordance with BS EN 1366-3.

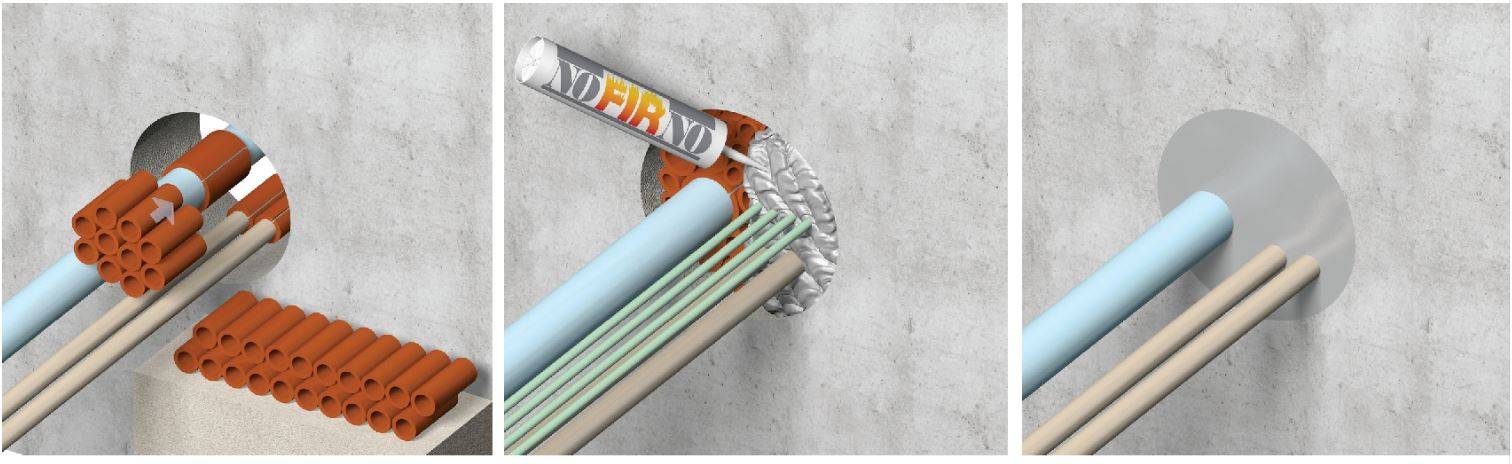

  • Quick and easy to install in both wall and floor penetrations.
  • Age tested to 50 years.
  • A cost effective Totex solution.
  • Easy re-entry for adding, removing, or replacing services.
  • Suitable for trefoil and large power cables and provides long term cable support.
  • No frame required and can be installed in any sized or shaped opening.
  • Certified to provide up to four hours of fire protection.
  • Space saving and allows for highly filled cabled transits.
  • Resistant to submersion in Petrol and Diesel.
  • Resistant to Methane, Hydrogen Sulphide and Chlorine.
  • Water and gas tight protection (up to 4 bar).
  • Cables and pipes can pass through openings off-centre or angled.
  • Ensures WIMES, ATEX and DSEAR compliance.

General information

Color

Orange

Finish

Smooth

Material

Silicone

Rubber

NOFIRNO rubber insert sleeves.

Uniclass

Pr_25_80_81_29 Flexible intumescent gap sealsPrimary
Pr_65_52_61_64 Pipe sleeve seals

CAWS

P12/35 Flexible intumescent gap sealer

P12/330 Flexible intumescent gap sealer

Specification data - Flexible intumescent gap seals

Size

50 mm.

100 mm.

110 mm.

125 mm.

150 mm.

160 mm.

180 mm.

200 mm.

225 mm.

250 mm.

300 mm.

Fire performance

EI 120 and E 240.

Environmental information

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Recyclability

No

Recycled content

0 %

Literature

Nofirno Duct Seal Fire Rated Install Instructions

Nofirno Duct Seal Fire Rated Install Instructions

Product Arrangement for NOFIRNO Duct Seal (Fire Rated)

Product Arrangement for NOFIRNO Duct Seal (Fire Rated)

Third party certifications

European Technical Approvals

European Technical Approvals

ETA 13-0153_06_NOFIRNO issued 27-02-2017 (GA & cable types).pdf

European Technical Approvals

European Technical Approvals

declaration of performance NOFIRNO (ETAG)

European Technical Approvals

European Technical Approvals

KIWA Covenant K90720_03 - Water & Airtight cable transits (slipsil, dynatite, nofirno sealing system, controfil & cet a sil)

QA Certificate

QA Certificate

ISO 9001 cert for CSD
